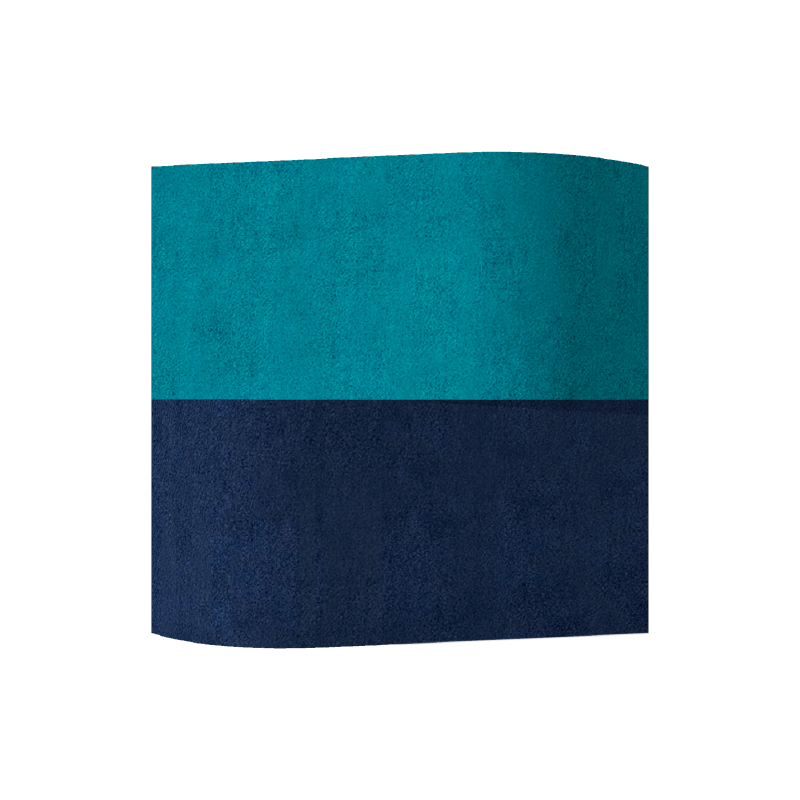

Artnovion Acoustics Andes Dimi – Absorber

Description

Andes Absorber was designed to control noise, sound reflections and excessive reverberation, in a decorative manner. Manufactured with premium materials and carefully wrapped with acoustic fabric, this product has an outstanding performance from mid to high frequencies.

The innovative design of our rear panels’ air cavities provides maximum absorption surface and extra absorption coefficient efficiency, smoothing the absorption frequency spectrum.

The innovative frame design confers precise dimensions to each panel that allows for perfectly aligned assembly.

Available in standard market furniture grade fire rate, appropriate for home use applications, compliant with all domestic level fire grades; and Fire Rate + fire resistance, compliant with entry-level fire resistance, certified under specific European and American regulations.



Andes’ frame design confers precise dimensions to each panel allowing for perfectly aligned assembly.

Recommended for

– Control Room

– Recording Room

– Home Studio

– Broadcast Studio

– Vocal Booth



Available fire rate:
FG | Furniture Grade

Material:
– Acoustic fabric
– Marine grade plywood structural frame
– Calibrated cell acoustic foam (Rear panels’ air cavities)

Range | Dimensions:
Andes – Absorber | 595x595x85mm
– Equipped with four M6 Screw Thread receiver

Andes Dimi – Absorber | 595x297x70mm
– Equipped with two M6 Screw Thread receiver

Andes Dimi – Velvet | 595x297x70mm

Purpose

– First reflection control

– RT reduction

– Reducing excessive reverberation



Recommended for

– Control Room

– Recording Room

– Home Studio

– Broadcast Studio

– Vocal Booth



Type:
Absorber

Absorption range: 200 Hz to 5000 Hz

Acoustic Class: B | (αw) = 0,9



Available fire rates:
FG | Furniture Grade

Material:
– Acoustic fabric
– Marine grade plywood structural frame
– Calibrated cell acoustic foam

Four M6 Screw Thread receiver included on each panel.

Disclaimer:

When using FixArt Tube on the ceiling, it is obligatory to use the FixArt Lock security device. This system guarantees a safe and precise installation.

Dimensions:

FG – SF | 595x297x70mm

FG – WF | 595x297x70mm
