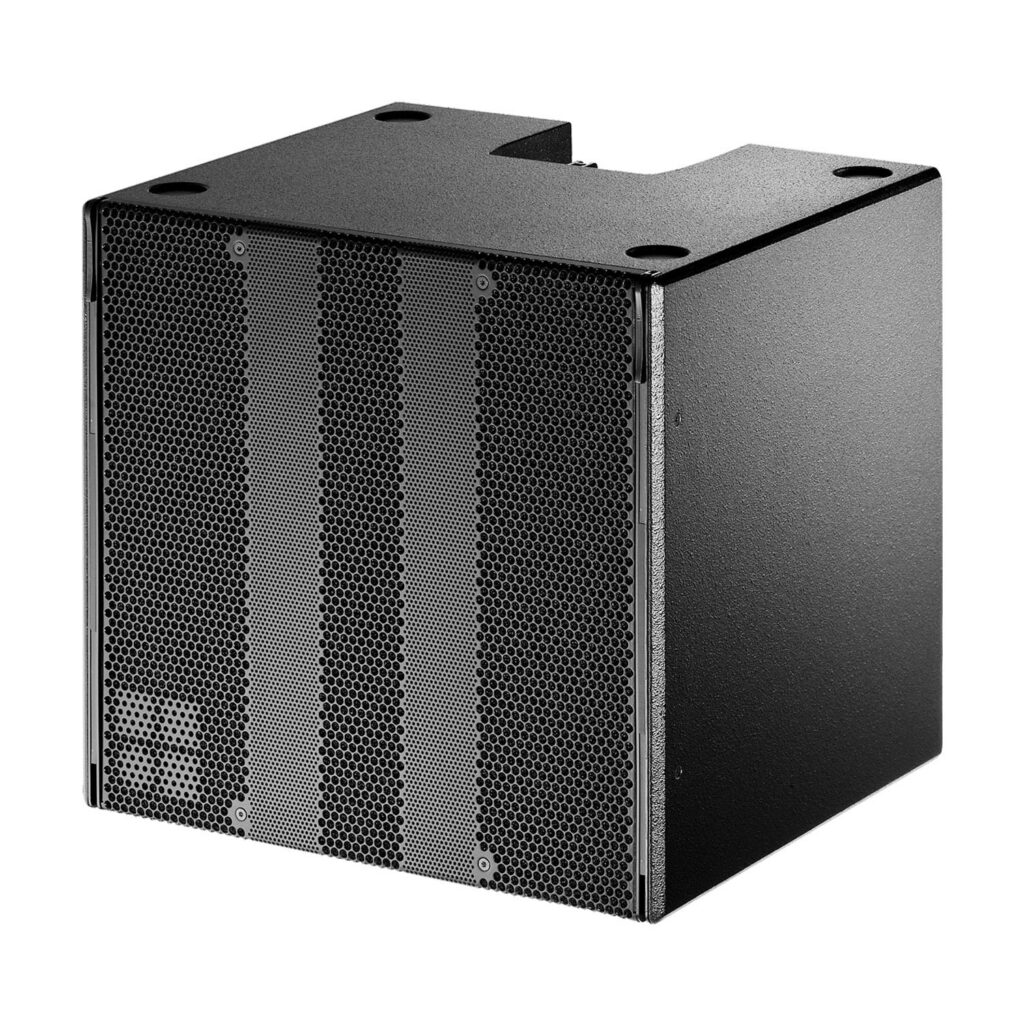

d&b audiotechnik Ti Subwoofer

Installation-specific compact flyable subwoofer

Description

The d&b audiotechnik Ti Subwoofer is the installation version of the T-SUB and only differs from the road version in the mounting hardware and cabinet details. It can be used to supplement the LF headroom of the Ti10L and Ti10P cabinets in various configurations. The Ti subwoofer cabinet is an actively driven bass-reflex design housing a long excursion 15″ driver with a neodymium magnet. The cabinets are mechanically connected using rigging links on both sides of the cabinet front, which slide out when needed, and a central splay link at the rear of the cabinet. All necessary rigging components are mounted to the cabinet. The Ti-SUB can also supplement the Ti10 loudspeakers in ground-stacked applications where the Ti-SUB can mechanically support them. The Ti-SUB cabinet is constructed from marine plywood and has an impact-resistant paint finish. A rigid metal grill protects the front of the loudspeaker cabinet in front of an acoustically transparent foam. Mounted on the rear panel are two NL4 connectors wired in parallel. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options.

System data

Frequency response (–5 dB standard) 47 – 140 Hz
Frequency response (-5 dB 100 Hz mode) 47 – 100 Hz
Max. sound pressure (1m, free field)1
with D6/10D
with D20/30D
with D80 127 dB
130 dB
130 dB
Cabinets per amplifier channel 2

Loudspeaker data

Configuration Installation-specific compact flyable subwoofer
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 300/1600 W
Components 15″ driver with neodymium magnet
Connections 2 x NL4

Dimensions, weight

Dimensions (H x W x D) 431 x 470 x 400 mm
17.0 x 18.5 x 15.8″
Weight 17 kg
37 lb

Additional information

Weight 37 lbs
Dimensions 16 × 19 × 17 in
