DiGiCo Quantum 225

Own the room with the compact and robust Quantum 225

Call for Quote

SKU: Quantum 225 Categories: , , , , , Tags: , ,

Description

  • 72 Input Channels
  • 36 Aux / Sub-Group Busses
  • LR/LCR Master Buss
  • 12 x 12 Full Processing Matrix
  • 155 Dynamic Equalizers
  • 48/96 kHz Sample Rate

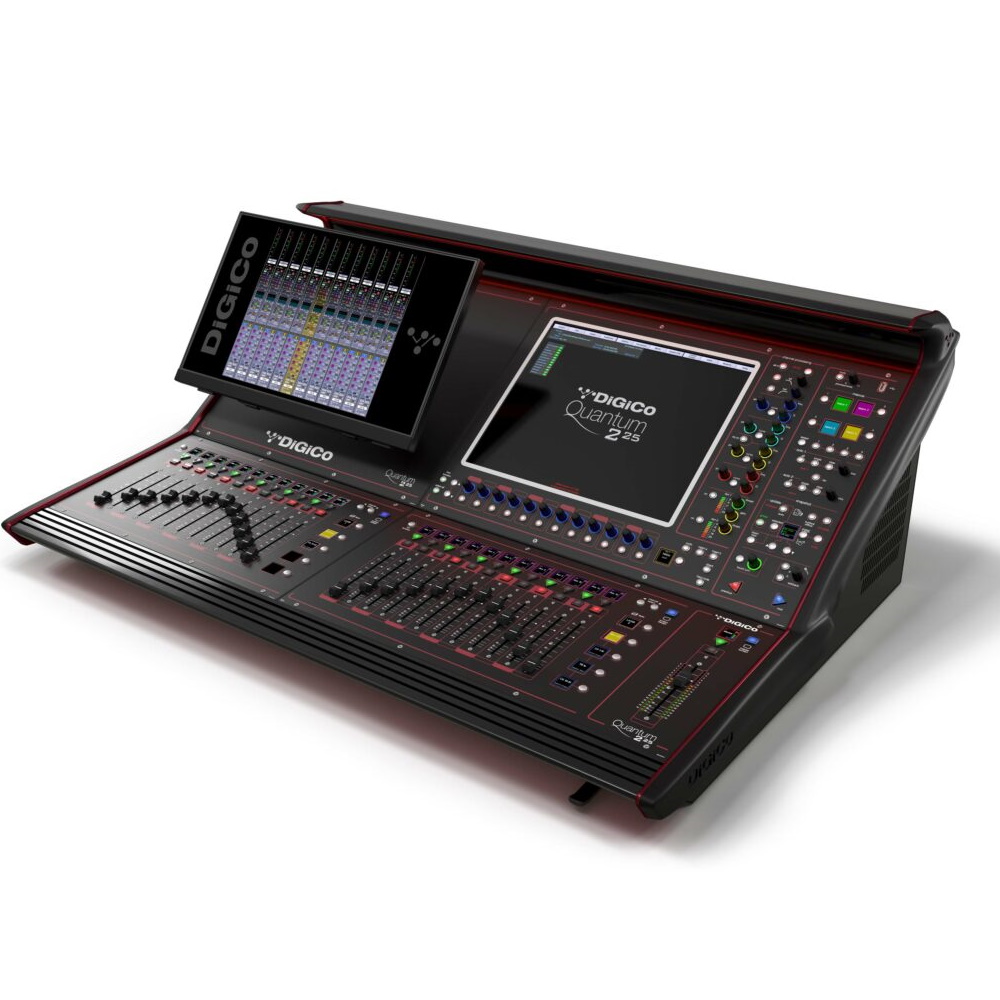

Quantum 225: Compact and Robust

Following on from Quantum 338, Quantum 225 brings the power of Quantum in a compact and robust work surface.

Quantum 225 incorporates all of the new design features introduced in 2020 with the Quantum 338, and of course, uses three large-scale seventh-generation FPGAs to continue the unrivaled Quantum legacy. The console merges tried and tested workflows with immense processing muscle, bold innovation, and all of the Quantum features, giving you the ultimate tool set.

Under The Hood

Quantum 225 brings a 17-inch, 1000 nit, high brightness multitouch screen with both a meter bridge and soft quick select buttons for quick and intuitive operation. 41 individual TFT LCDs displaying channel information and metering, bank information, macros, and more guide you immediately to the controls you need. Plus, 25 100mm touch-sensitive faders in two banks of 12 plus a dedicated user-assignable master fader with high-resolution metering.

But there’s more… The defining feature of the Quantum 225 is the ability to customize the left worksurface with the Mounting Bracket. Mount a laptop for creative control, or a KLANG:kontroller for immersive control. You could even mount an extra screen to show your KLANG:app, plugin computer, or console overview screen, or it could even display the channel screen for your left bank of faders, transforming your Quantum 225 into a dual-screen console at an unbelievable price point!

With a maximum of 72 input channels with 36 busses and a 12 x 12 matrix, all with full channel processing, Quantum 225 brings Quantum to a wider user base. Also included as standard are Mustard Processing channel strips, Spice Rack plugin-style native FPGA processing options, Nodal Processing, and True Solo.

I/O

Despite being a smaller format console, there hasn’t been any sacrifice when it comes to connectivity.

Local I/O: Quantum 225’s local I/O includes 8 analog inputs, 8 analog outputs, and 2 AES I/O (4 channels)

MADI: Quantum 225 offers 2 redundant MADI in/out at 48kHz, which can also be configured as 4 MADI I/O. At 96kHz this acts as 2 MADI I/O with full channel counts.

Optocore: The Quantum 225 offers the option to add a single or dual loop of Optocore. On each loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks or a combination of racks and tie-lines around the loop. With dual Optocore loops, that’s 1,008 Optocore channels of audio and 28 racks running.

UBMADI: In addition, the engine has a 48-channel UBMADI, so you can connect any laptop via USB and get 48 channels of recording and playback.

DMI: We have also incorporated two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.

Waves: There is also an option to add Waves connectivity if you want to utilize SoundGrid processing, giving you a 64 x 64 additional I/O.

DMI Interface Options

DMI-AMM
This card offers both the SD-Range and the S-Series consoles up to 64 channels of automatic microphone mixing which can be used in any console input channel.

DMI-ADC
This card provides 16 analog inputs on 2 x 25-way “D” connectors. The ADC card is a line card only. There is no microphone amplifier or phantom power available. There is no gain control function for these inputs (only digital trim). Maximum input level +22dBu.

DMI-AES
This card provides 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way “D” connectors. All AES inputs are provided with sample rate conversion (SRC) by default. All AES outputs are synchronized to the mixer system clock.

DMI-AVIOM
This card provides 16 output channels at 48kHz (with SRC) and Supports Aviom’s proprietary A-Net Pro16 protocol. It has 1 Ethercon connection and faceplate DIP switched for Stereo output selection.

DMI-DAC
This card provides 16 analog outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale)

DMI-DANTE
This card provides 64 input and 64 output channels at 48KHz and 32 input and 32 output channels at 96KHz. It is provided with Primary and Secondary (backup) Gigabit Ethercon ports for connection to the Dante network.

DMI-MADI-B
This card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D2-Rack, SD-Rack, SD-MINIRack)

DMI-MADI-C
This card can be used to connect another DiGiCo device that uses RJ45 Standard MADI (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack)

DMI-ME
This card offers a 40 output interface to Allen & Heath ME-1 or ME-500 Personal Mixers. Multiple personal Mixers can be connected to the DMI ME via the ME-U Hub.

DMI-MIC
This card provides 8 microphone preamp inputs on a 1 x 25 way “D” connector. Each channel has individual, low noise gain control and phantom power. User interface is through a normal channel strip on your console. The maximum input level is +22dBu.

DMI-WAVES
This card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Ethercon ports.

DMI-DANTE64@96
This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

DMI-HYDRA 2
This card will provide 56 Input and 56 output channels at 48kHz with Primary and Secondary (backup) optical connections.

DMI-KLANG
This card provides ultra-low latency KLANG immersive processing for up to 16 2-channel mixes with 64 inputs at 48kHz or 96kHz.

    Quantum 225 Specifications

    General Specifications

    • Faders: 25 x 100mm touch-sensitive, motorized
    • Screens: 1 x 17” LCD high–brightness, high–resolution touch screen
    • Input Channels: 72
    • Busses: Up to 36 Aux / Group busses with full processing Mono / Stereo / LCR plus a Master
    • Matrix: Up to 12 Input / 12 Outputs with full processing
    • Control Groups: Up to 12, selectable for VCA-style, Moving fader, Mute Group
    • Graphic Eq: 16 x 32-band, Gain +/- 12dB
    • Internal FX: Up to 12 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
    • Spice Rack: 6 mono / 3 stereo Rack Slots
    • Mustard Proc: 24 Processing Strips
    • Nodal Proc: 32 Nodal Processors
    • Local I/O: 8 x mic/line I/O, 2 x AES I/O (4 channels)
    • MADI interface: 4 x interfaces @ 48kHz, 2 interfaces @ 96kHz, BNC connectivity
    • Optocore Interface: Optional (dual loop available)
    • Sampling rates: 48kHz / 96kHz
    • GPI/GPO: 2
    • DMI: 2 x DiGiCo Multichannel Interface
    • Waves: Optional
    • Ext Sync: Wordclock, MADI, Optocore
    • Quantum 2 Dimensions: 1124mm (w) x 801mm (d) x 436mm (h)
    • Quantum 2 Weight: 43Kg / 95lbs (138Kg / 304 lbs. with flight case)
    • Quantum 2 Flightcase: 1260mm (w) x 601mm (d) x 1141mm (h)
    • Power Requirements 100V-240V, 50-60Hz, 255VA

    Audio Specification

    • Sample Rate: 48kHz or 96kHz
    • Processing Delay: TBC
    • Internal Processing: Up to 40-bit, Floating Point
    • A>D & D>A: 24-bit Converter Bit Depth
    • Frequency Response: TBC
    • THD: TBC
    • Channel Separation: TBC
    • Residual Output Noise: TBC
    • Microphone Input: TBC
    • Maximum Output Level: TBC
    • Maximum Input Level: TBC

    Processing Channel Specification
    Input Channel

    • Name: User-Defined / Presets
    • Channel Selection: Mono / Stereo / Multi
    • Input Routing: Main & Alternate Input
    • Analogue Gain: -20 to +60dB
    • Phase: Normal / Reverse
    • Digital Trim: -40 to +40dB
    • Delay: Up to 1.3s
    • DiGiTuBe: Drive 0.01 – 50.0
      Bias 0 – 6
    • LPF: 20 – 20kHz, 24dB/Oct
    • HPF: 20 – 20kHz, 24dB/Oct
    • Insert A: (Pre EQ/Dyn) On/Off
    • Equalization: 4 Band EQ: Parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/
      Hi Shelf, Hi/Hi-shelf)
      On/Off
      Freq; 20 – 20kHz
      Gain; +/- 18dB
      Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
      Dynamic EQ On/Off
      Over/Under
      Band On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
    • Dynamics 1: Single or Multiband (3-Band)Compressor:
      On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
      Gain; 0 to +40dB with Autogain Option
      Link; Any Channel/Buss
      Hi Crossover; 20Hz – 20kHz
      Lo Crossover; 20Hz – 20kHz
      Knee : Hard, Med, SoftDe-Esser:
      Threshold: 20us – 20ms
      Release: 1ms – 100ms
      Ratio : 1:1 – 50:1
      Ess-Band: Listen On/Off
      Ess-Band Filter Freq / Width: 20Hz – 20kHz
    • Dynamics 2: On/OffGate / Ducker:
      Threshold; -60 – 0dB
      Attack; 50us – 100ms
      Hold; 2ms – 2s
      Release; 5ms – 5s
      Range; 0 – 90dB
      Key; Any Source
      Key Listen
      Freq/Width; 20 – 20kHzCompressor:
      On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
      Gain; 0 to +40dB with Autogain Option
      Link; Any Channel / Buss
      Hi Crossover; 20Hz – 20kHz
      Lo Crossover; 20Hz – 20kHz
      S/C Source: Any Source
      S/C Listen: On/Off
      S/C Filter Freq/Width: 20Hz – 20kHz
    • Insert B: (Post EQ/Dyn) On/Off
    • EQ/Dyn order: EQ/Dyn or Dyn/EQ
    • Mute: Channel Mute / Hard Mute
    • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
    • Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs,
      Full Safe
    • Output Routing: Buss, Insert A, Insert B, FX
      Direct: On/Off, Pre-Mute / Pre-Fade / Post-Fade, Level +/- 18dB
    • Fader: 100mm Motorised Fader ∞ to +10dB

    Processing Channel Specification
    Aux / Group / Matrix Output

    • Name: User-Defined / Presets
    • Phase: Normal / Reverse
    • Digital Trim: -20 to +60dB
    • Delay: Up to 1.3 sec
    • DiGiTuBe: Drive 0.01 – 50.0
      Bias 0 – 6
    • LPF: 20 – 20kHz, 24dB / Oct
    • HPF: 20 – 20kHz, 24dB / Oct
    • Insert A: (Pre EQ/Dyn) On/Off
    • Equalization: 8 Band EQ: 4-band Parametric and 4 band parametric or Dynamic (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, Hi/Hishelf)
      On/Off
      Freq; 20 – 20kHz
      Gain; +/- 18dB
      Q: 0.1 -20 (Parametric) / 0.10-0.85 (Shelf)
      Dynamic EQ On/Off
      Over/Under
      Band On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
    • Dynamics 1: Single or Multiband (3-band)Compressor:
      On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
      Gain; 0 to +40dB with Autogain Option
      Link; Any Channel / Buss
      Hi Crossover; 20Hz – 20kHz
      Lo Crossover; 20Hz – 20kHz
      Knee : Hard, Med, SoftDe-Esser:
      Threshold: 20us – 20ms
      Release: 1ms – 100ms
      Ratio: 1:1 – 50:1
      Ess-Band: Listen On/Off
      Ess-Band Filter Freq/Width: 20Hz – 20kHz
    • Dynamics 2: On/OffGate / Ducker:
      Threshold; -60 – 0dB
      Attack; 50us – 100ms
      Hold; 2ms – 2s
      Release; 5ms – 5s
      Range; 0 – 90dB
      Key; Any Source
      Key Listen
      Freq/Width; 20 – 20kHzCompressor:
      On/Off
      Threshold; -60 – 0dB
      Attack; 500us – 100ms
      Release; 10ms – 10s
      Ratio; 1:1 – 50:1
      Gain; 0 to +40dB with Autogain Option
      Link; Any Channel/Buss
      Hi Crossover; 20Hz – 20kHz
      Lo Crossover; 20Hz – 20kHz
      S/C Source: Any source
      S/C Listen: On/Off
      S/C Filter Freq/Width: 20Hz – 20kHz
    • Insert B: (Post EQ/Dyn) On/Off
    • EQ/Dyn Order: EQ/Dyn or Dyn/EQ
    • Mute: Channel Mute / Hard Mute
    • Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
    • Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
    • Output Routing: Outputs, Insert A, Insert B, FX
    • Fader: 100mm Motorised Fader ∞ to +10dB

    Mustard Processing

    • Preamplifier Tubes:
      Variable Drive
      Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets
      Variable Output Gain
    • Preamplifier Amp:
      Variable Drive
      Odd/Even 1st stage harmonics
      Bias & Saturate control
      Off/Odd/Even 2nd stage harm
      Variable HF Boost
      Variable Output Gain
    • Equalisation: 4 band EQ: Parametric (low-shelf / bell, lower-mid bell / all-pass, upper-mid bell / all-pass, hi-shelf / bell)
      HPF & LPF 4th order filters
    • Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
    • Dynamics 2: Gate / Ducker
