Digital Audio Labs Livemix MIX-32

32 Mix Distributor

Description

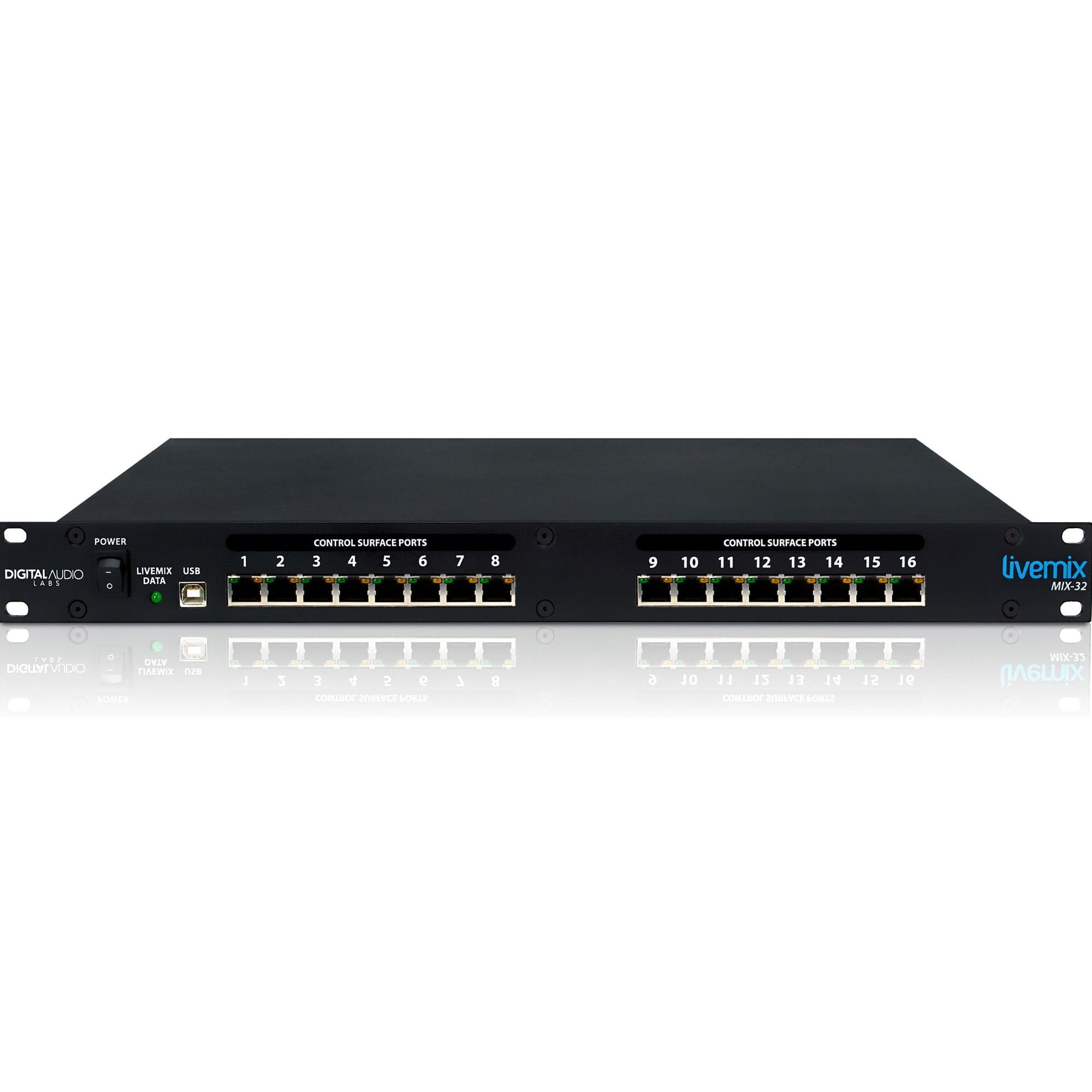

Digital Audio Labs Livemix MIX-32

The Digital Audio Labs Livemix MIX-32 is the central mixer for the Livemix personal monitoring system. The MIX-32 supplies mix streams as well as the power to each of the connected personal mixers.

The MIX-32 will generally be placed near the personal mixers, likely in a rack near the stage. The MIX-32 receives input data over a network cable, either from the AD-24 (shielded) or a Dante network via the LM-DANTE-EXP Dante card.

Each port on the MIX-32 supports two discrete mixes for up to 32 total mixes. Connect a single CS-DUO or up to two CS-SOLOs to each port with a standard network cable. The maximum combined CAT5e cable (shielded or unshielded) distance is 100 meters.

24 Channel + 4 Accessory Channels

The MIX-16 receives 24 channels of audio from the AD-24 (for analog sources) or the LM-DANTE-EXP option card (for digital sources from a Dante™ Network). This is more than enough to handle the needs of the church, studio, and live event stages while still being simple to use with the intuitive mix interface.

24-bit Mixing

High-quality audio processing means mixes come together more quicker and easier. Clear separation of instruments with no smearing and accurate sound reproduction make Livemix the best-sounding personal monitor mixer on the market. Digital Audio Labs’ decades of experience in digital audio give you the very best-sounding mixes possible.

Expansion Port (Option Card)

With the built-in expansion port, you never have to worry about future compatibility. The audio world is constantly changing. Livemix will support those changes so you can be assured that your personal monitor system will provide many years of best-in-class functionality.

Output to Analog for Transmitters

Each MIX-16 has an output port for connection to the optional Livemix DA-816 analog output unit. This lets you assign personal monitor mixes to one of 8 stereo outputs for easy wireless in-ear monitor integration.

Supports Up to 16 Personal Mixers

16 front panel ethernet ports provide up to 32 personal monitor mixes with power and mix capabilities. This can be through 16 dual mixes CS-DUO units, 32 single mix CS-SOLOs, or a combination.


Specifications

LIVEMIX MIX-32
Max Cable Length
to CS-SOLO/CS-DUO
100m CAT5e cable (shielded recommended)
Max Cable Length
to AD-24/DA-816
100m CAT5e cable (shielded required)
Bit Rate 24-bit Digital Mixing and Processing
Sample Rate 48 kHz internal system rate
Up to 96kHz sample rate input accepted from Dante network
Digital Format Proprietary in system
Expansion Option Card Slot
