Flock Audio CX

8 Channel – Mic/Instrument Line Level Adjustment Module

Description

Flock Audio CX

CONNECTIOns MADE SIMPLE…

HOW TO CONNECT CX?

CX is an 8 Channel Hardware Module Compatible with all Flock Audio PATCH Series Models allowing all types of Analog Audio Signals to correctly route through the PATCH Series (+4 Line Level Design) for the most cleanest and transparent analog audio routing experience possible. Assignable, Customizable & Controlled through the PATCH APP and PATCH APP DX.

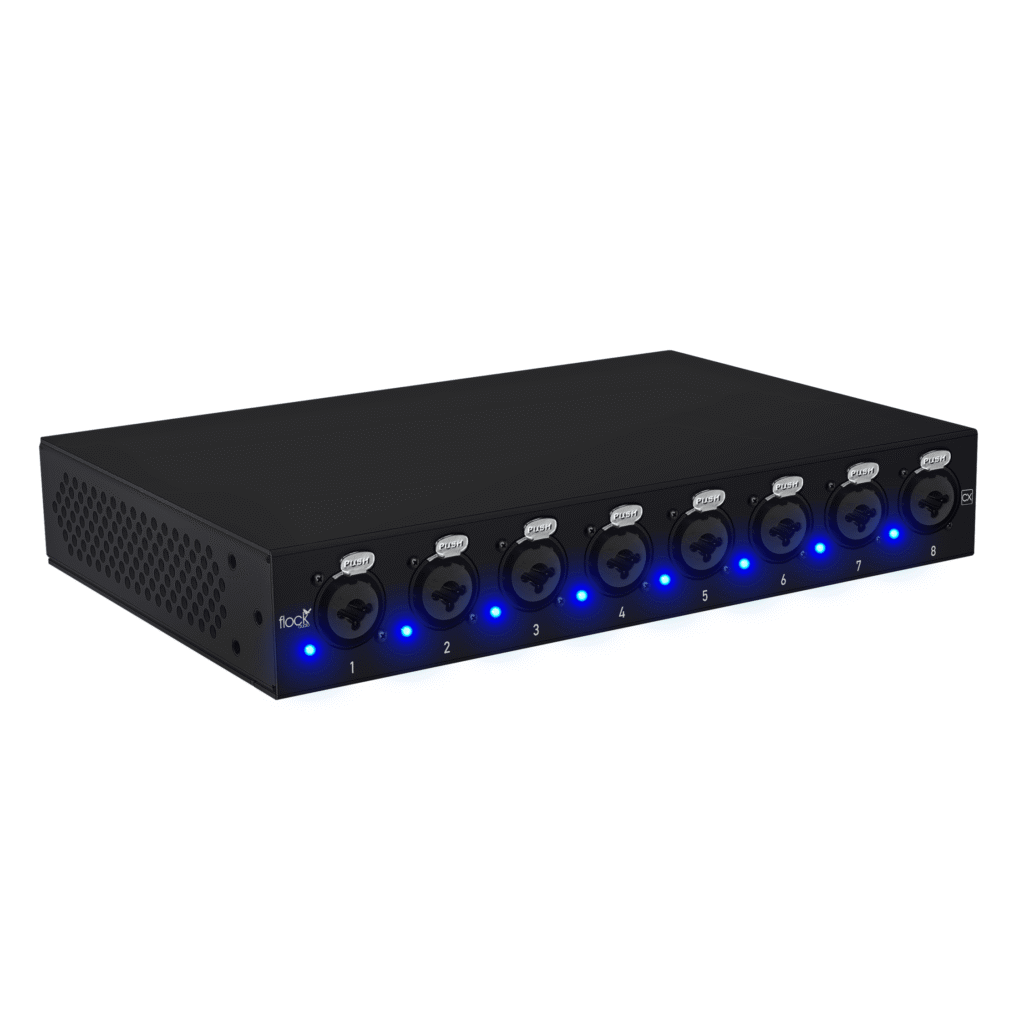

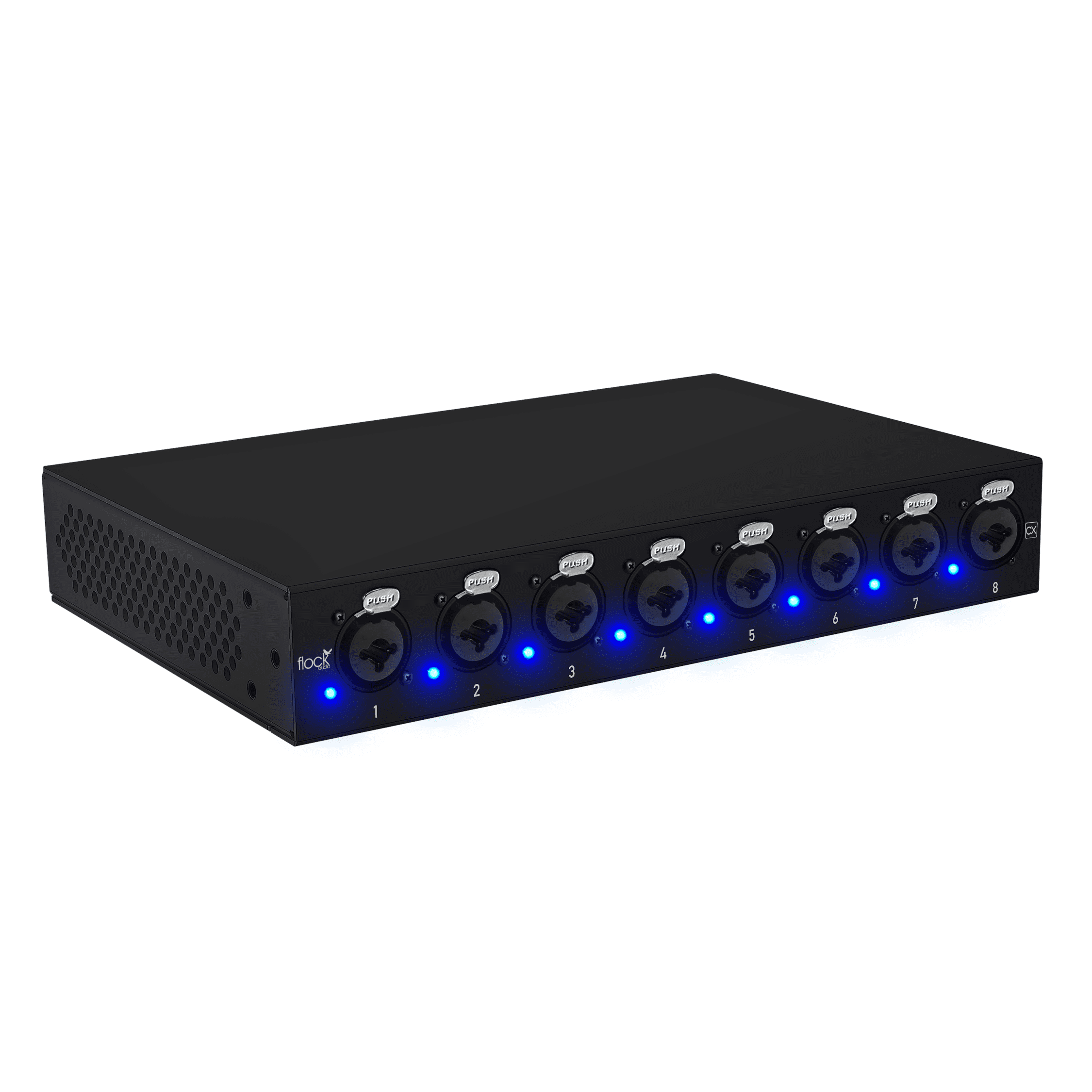

THE FRONT PANEL

8   –  XLR/COMBO INPUT CONNECTIONS

Seamlessly Connect Microphones, Instruments & more Audio directly to the Front Inputs of CX Hardware.

THE REAR PANEL

8  – OUTPUT CHANNELS (DB25/DSUB)

Connect directly to any PATCH Series Models Inputs and begin setting up your CX with PATCH APP or PATCH APP DX

CX Menu

Setup and Control CX right from the PATCH APP or PATCH APP DX Software.

  •  HARDWARE INPUT

           SELECT ANY “INPUT” CONNECTED TO YOUR PATCH SERIES HARDWARE

  •  SIGNAL TYPE

           SELECT A “SIGNAL TYPE” THAT REPRESENTS YOUR INCOMING ANALOG SIGNAL

  • ADJUST

         FINELY TUNE YOUR LEVEL WITH THE ADJUST KNOB.

  • LEVEL

         REVIEW, OBSERVE AND CONFIRM YOUR OPERATING SIGNAL  LEVEL

  • TABS

        SETUP, TAB, AND USE MULTIPLE CX MODULES RIGHT FROM ONE MENU

PRODUCT DETAILS

  • 8 Channel Mic/Instrument Level XLR/TRS Combo Inputs

  • 8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connector

  • 8 Assignable Independent Channels of 48V Phantom Power

  • PATCH APP & PATCH APP DX – Setup & Controlling Software (OSX, Windows, iOS)

  • Connect any type of analog audio signal to the PATCH Series via the CX Hardware

  • No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path

  • Stand Alone Desk Module -or- Rack Ear Mountable Package Design (Ears Included)

  • External Power Supply w/ Threaded Locking Connector (IEC Cable Included)

  • 10 Ft. – USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)

  • Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) – 5 lbs
