Description

• 192 Point Connections (96 Inputs / 96 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 32 Assignable Independent Channels of 48V Phantom Power

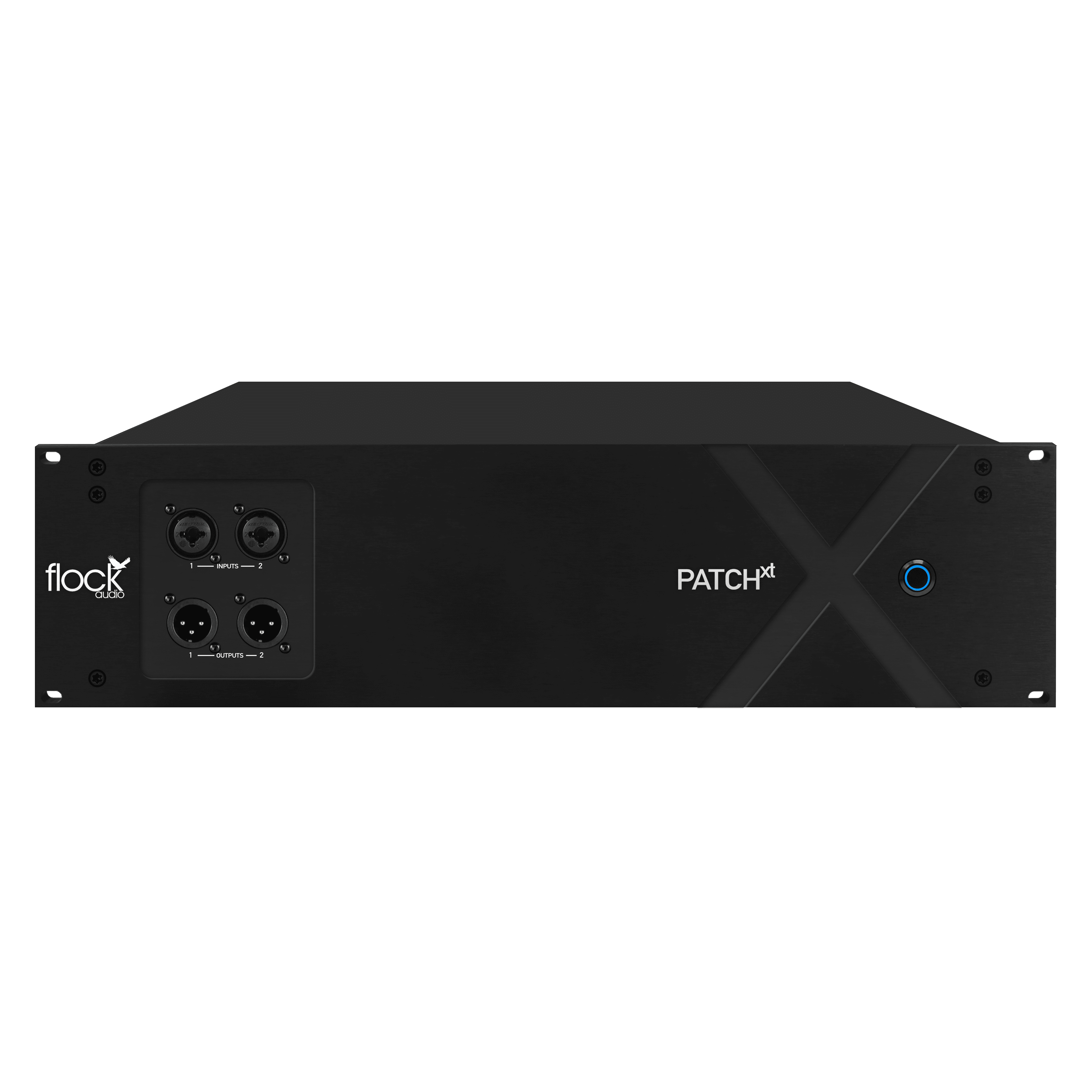

• Front Panel – 2 Combo TRS/XLR Input & 2 XLR Output
• PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Remote Sleep/Wake Mode Control of PXT Hardware
• Input Signal Audio Detection Integration
• Patented Flock Audio Matrix Technology
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• Internal Power Supply w/ IEC Cable Included
• 6 Ft. – USB 2.0 (USB-A to USB-B) Threaded Securement – Cable Included
• CAT5 Network (Optional Control) Capability (Cable Not Included)
• Unit Dimensions: 3U – 5.25”(H) x 19” (L) x 13” (D) – 26 lbs
• Optional Rear mount Cable Hanger Accessory (Product Code: XTH)

192 Points 96 in, 96 out | analog connections per unit

NO AD/DA CONVERSION. 100% ANALOG

One Switch, One Multi-Purpose LED Indicator because less is more.

Locking USB Connector *Cable Included
Never risk disconnection. Long Distance Control, No Problem *Additional CAT5 Network Connection Included

Front IO Access
Anything in your Analog Matrix at Anytime

Redesigned Airflow
Cooling without compromise

More Room. More Power.
Built In Power Supply

One App…One Controller
Software that Instantly recognizes your PATCH Model

Your Analog Consoles New Companion
Existing Patchbays? Remove, Replace & Embrace
