Description

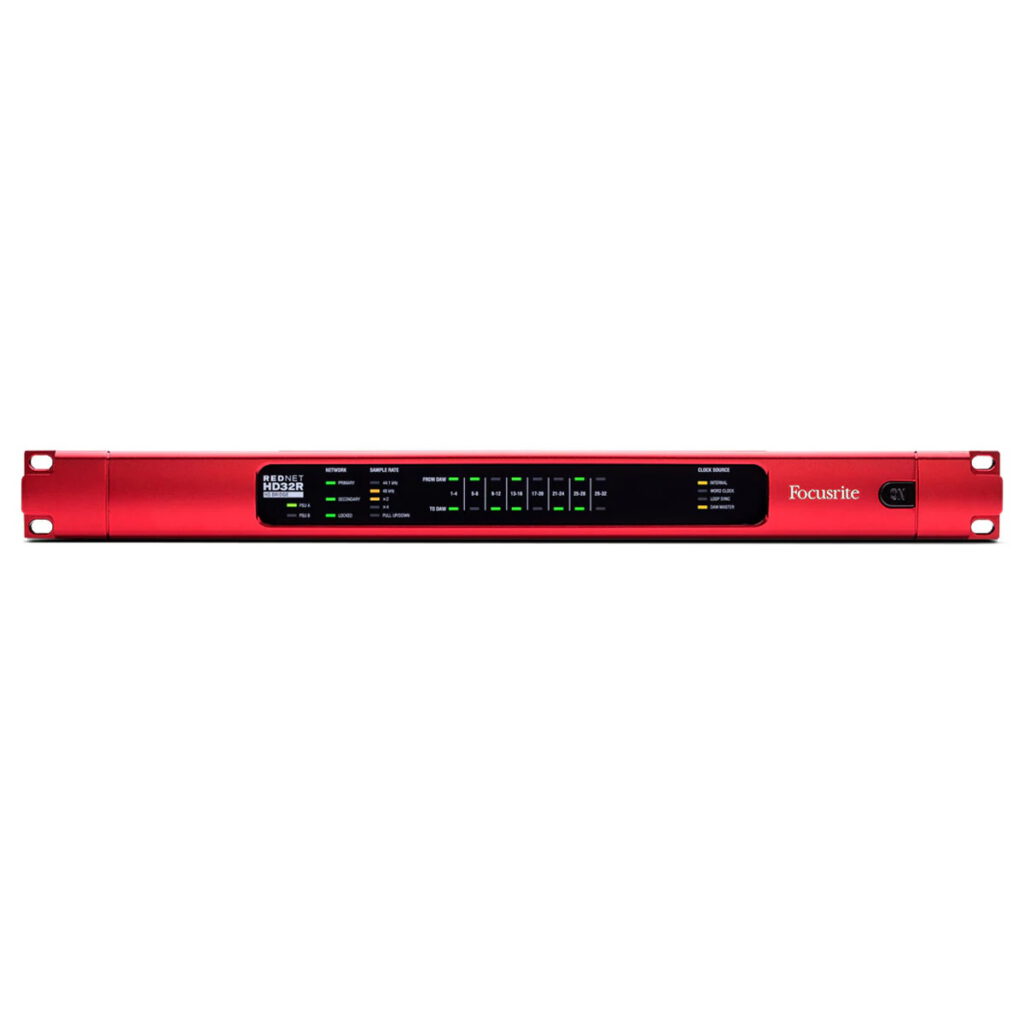

The Focusrite RedNet HD32R is a 1U, Pro Tools | HD™ interface for any Dante™ audio-over-IP network, providing up to 32×32 channels of I/O (16×16 at 192kHz) Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it’s Native, HDX, or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.
Features
- 32×32 Pro Tools | HD I/O for Dante audio-over-IP networks at up to 96kHz (16×16 at 192kHz)
- Primary and Expansion DigiLink mini connections
- Up to 24-bit, 192kHz sampling rates
- AES67 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware
- Comprehensive remote control and remote signal metering through RedNet Control
- Brainworx bx_console Focusrite – an exclusive plug-in that faithfully captures the sound, feel, and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
Specifications
DIGITAL PERFORMANCE
Supported Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources
Internal, Word Clock, Loop Sync (master or slave), or from Dante Network Master
External Word Clock Range
Nominal sample rate ±7.5
Channel Count
32×32 at up to 96kHz sampling rate, 16×16 at 176.4 and 192kHz
REAR PANEL CONNECTIVITY
Primary Port
1 x Mini DigiLink
Expansion Port
1 x Mini DigiLink
Word Clock Input
1 x BNC 75O port (switchable termination)
Word Clock Output
1 x BNC 75O port
PSU
2 x IEC Inputs with retaining clips
Network
2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
FRONT PANEL INDICATORS
Primary PSU (A)
Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary PSU (B)
Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network
Green LED. Indicates that a network connection is present on the primary port when in redundant mode
Secondary Network
Green LED. Indicates that a network connection is present on the secondary port when in redundant mode
Network Locked
Green LED. When the unit is a network slave, shows a valid network lock. When the unit is network master
Sample Rate
Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down
Orange LED. Indicates the unit is set to operate on a Dante pull up/down domain
Signal Indicators
16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
Clock Source
Orange LED for each: Internal, Word Clock, Loop Sync, and DAW Master
NETWORK MODES
Redundant
Allows the unit to connect two independent networks
Switched
Connects both ports to an integrated network switch allowing daisy-chaining of device
DIMENSIONS
Height
44.5mm/ 1.75″
Width
482.6mm/ 19″
Depth
263mm/ 10.35″
WEIGHT
Weight
3.9kg
POWER
Power PSU
2 x Internal, 100-240V, 50/60Hz, consumption 30VA
HEAT PERFORMANCE
Operating Temperature
Operates at up to an ambient temperature of 50 degrees Celcius
