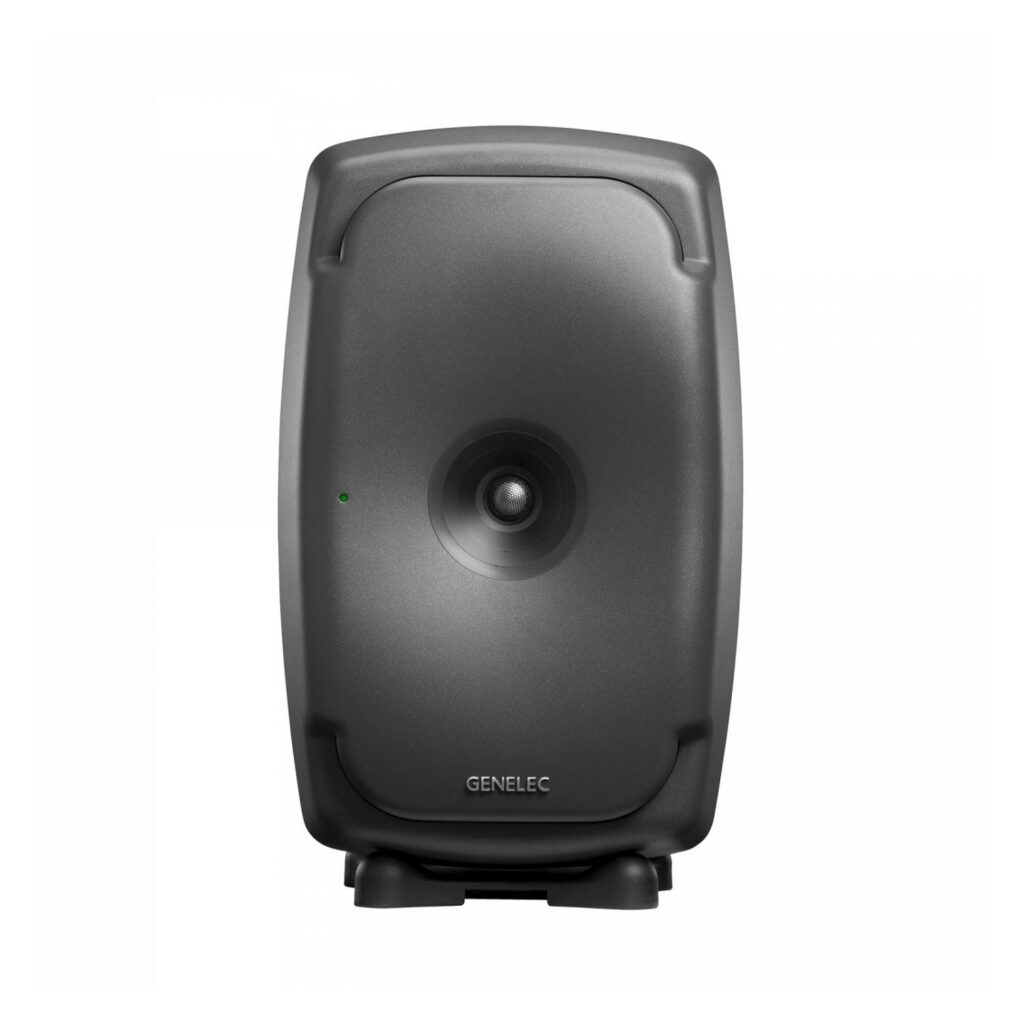

The largest of our coaxial point source monitors, the 8361 offers extremely high dynamic range, unrivalled directivity and imaging and a short term SPL of 118 dB, enabling it to deliver an exquisite monitoring experience at any listening distance up to 5 metres – and therefore making it perfect for small to medium sized rooms.
The 8361 features two newly-designed Acoustically Concealed Woofers – generating high SPL output with extremely low distortion – and brand new MDC coaxial midrange and tweeter drivers which provide smooth directivity, low distortion, high SPL and extended frequency response up to 40 kHz. The 8361’s unique Minimum Diffraction Enclosure eliminates colouration and its entire front baffle acts as a Directivity Control Waveguide – producing a fantastically wide, uncoloured sweet spot.
Like all models in The Ones series, the 8361 promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions – because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361 will adapt to your acoustic space – compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.
Smart Active Monitor (SAM™) Systems
Minimum Diffraction Coaxial (MDC™) Driver Technology
Directivity Control Waveguide (DCW™) Technology
Acoustically Concealed Woofers (ACW™) Technology
Minimum Diffraction Enclosure (MDE™) Technology
Reflex Port Design
Intelligent Signal Sensing (ISS™) Technology
Room Response Compensation
SPL 118 dB
Frequency response 30 Hz – 43 kHz (-6dB)
Accuracy of frequency response ± 1.5 dB (36 Hz – 20 kHz)
Driver dimension 2x Oval Woofers 10 3/8 x 5 3/8 inch + Coaxial Midrange/Tweeter MDC™ 5 / 1 in+ DCW™
Amplifier power Woofer 500 W + Midrange 150 W + Tweeter 150 W
Dimensions H 593 x W 357 x D 347 mm, H 23 3/8 x W 14 x D 13 5/8 in
Weight 31,9 kg / 70 lb
Connections 1 x XLR analog input, 1 x input / 1 x output XLR digital AES/EBU, 2 x RJ45 control network
