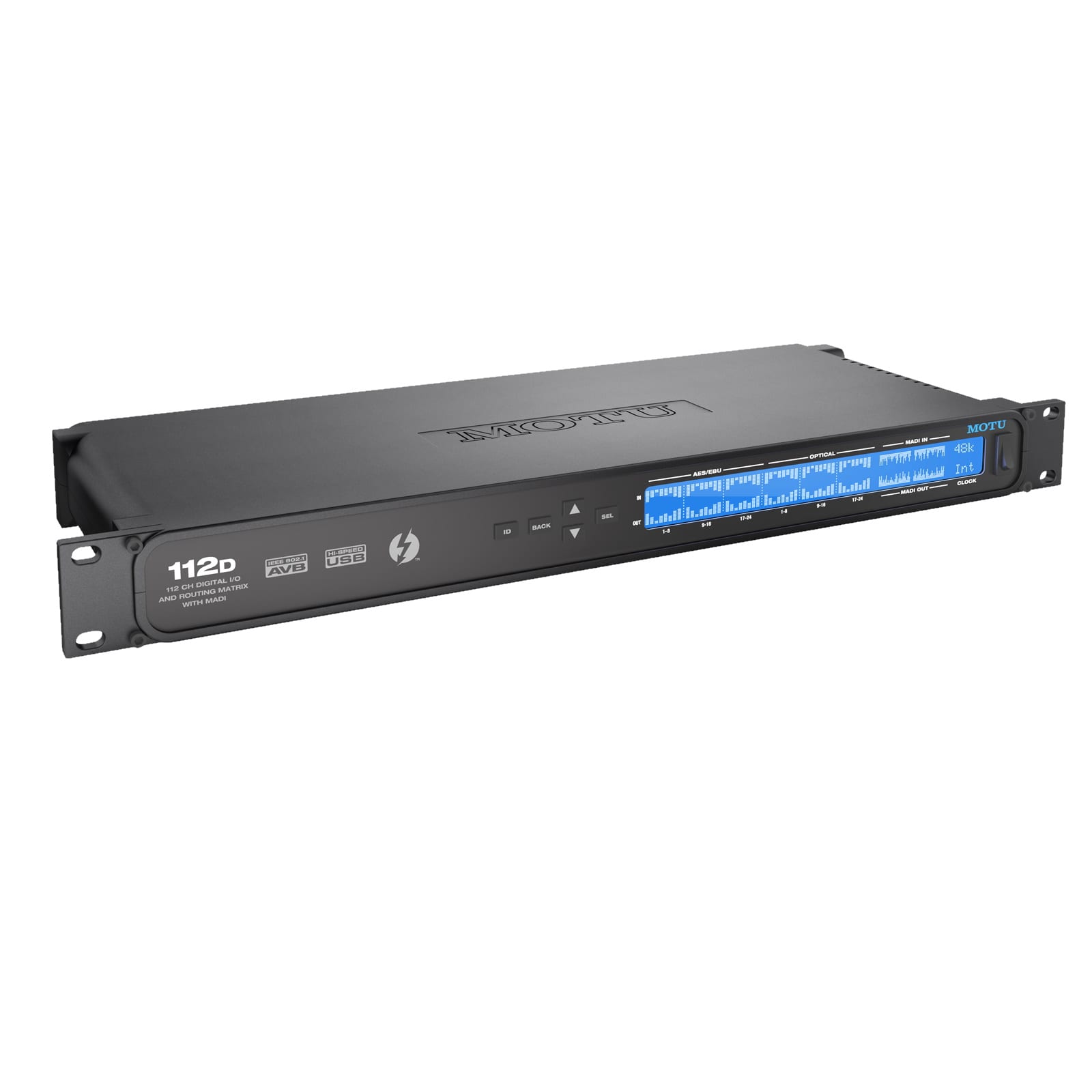

MOTU 112D
Features
112 simultaneous digital audio channels
24 channels of AES/EBU, plus 24 channels of ADAT optical, plus 64 channels of MADI, for 112 total channels of digital audio I/O. All input and output channels can be active simultaneously.
64 channels of MADI
Serves as a 64-channel MADI interface, router, and converter with near-zero latency and flexible routing and splitting to/from the AVB network, computer, AES/EBU and optical. Supports 56-channel mode, 32-channel mode, and 1x/2x/4x clock modes.
24 channels of AES/EBU and ADAT optical up to 96 kHz
Three 8-channel (D-sub) banks of AES/EBU at sample rates up to 96 kHz. Three 8-channel banks of ADAT optical at rates up to 48 kHz; six banks of ADAT at 2x sample rates (24 channels).
Flexible routing, splitting, and format conversion
Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network. Convert any format to any other.
256 channels of network audio I/O for your host computer
Record and monitor up to 128 networked audio channels in and out, simultaneously, through the Thunderbolt connection to a host computer.
Universal connectivity
Connects to a computer with Thunderbolt, standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
On-board DSP with mixing and effects
Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.
32-bit floating-point processing
The 112D’s mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ is modeled after British analog console EQs.
System expansion and audio networking
Add a 2nd MOTU AVB interface (1248, 8M, 16A, etc.) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
256 channels of network audio I/O for your host computer
Record and monitor up to 128 networked audio channels in and out, simultaneously, through the Thunderbolt connection to a host computer.
Web app control
Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.
Stand-alone mixing with wireless control
Connect an Apple Airport™ or other Wi-Fi router directly to the 112D with a standard Ethernet cable and control the 112D’s powerful mixing and DSP effects from your smartphone or tablet, without a computer. Great for live sound mixing.
Comprehensive metering
The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing, and 32-bit mixing and mastering.
Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Digital I/O | 3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates 6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates 3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub 1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x) |
| Total I/O | 112 inputs and 112 outputs (224 total) at 1x sample rates 80 inputs and 80 outputs (160 total) at 2x sample rates 16 inputs and 16 outputs (32 total) at 4x sample rates |
| Computer I/O | 1 x Thunderbolt (compatible with 1 and 2) 1 x USB 2.0 audio class compliant USB 3.0 and iOS compatible 1 x AVB Ethernet (requires OS X Yosemite) |
| Computer I/O channels | Thunderbolt (44.1 to 96 kHz): 128 in/out Thunderbolt (176.4 to 192 kHz): 64 in/out USB 2.0 (44.1 to 48 kHz): 64 in/out USB 2.0 (88.2 to 96 kHz): 32 in/out USB 2.0 (176.4 to 192 kHz): 24 in/out AVB Ethernet: 16 to 128 in/out, depending on host computer speed |
| Sync I/O | 1 x word clock in 1 x word clock out / thru |
| Network I/O | 1 x RJ45 AVB/TSN Ethernet (1 Gbps) |
| AVB streams (8 channels per stream) | 16 in / 16 out @ 44.1 or 48 kHz 16 in / 16 out @ 88.2 or 96 kHz 8 in / 8 out @ 176.4 or 192 kHz |
| Front panel | 5 x switches • menu navigation 324 x 24 pixel LCD for level meters / menu nav 1 x AC power switch |
| Power | International 100-240V auto switching supply 50-60 Hz • 0.5A max |
| Dimensions and weight | (width x depth x height, enclosure only) 19 x 7 x 1.75 inches 48.3 x 17.75 x 4.5 cm 4.3 lbs / 1.95 kg with rack brackets removed: 17.25 inches (43.8 cm) wide 4.2 lbs / 1.90 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available Thunderbolt, USB 2.0, or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Included Software
- Thunderbolt and USB 2.0 drivers
- MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU Pro Audio Control web app (served from the hardware itself)
- MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
- AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
Compatible Mac Software
The 112D ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Apple Logic Pro
- Apple Logic Express
- Apple Garage Band
- Apple SoundTrack Pro
- Ableton Live
- Propellerhead Record & Reason
- Steinberg Cubase
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via the compatible host)
Compatible Windows Software
The 112D ships with standard ASIO and Wave drivers for Windows 7, 8, and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Ableton Live
- Cakewalk Sonar
- Steinberg Cubase
- Propellerhead Record & Reason
- Image-Line FL Studio
- Sony Vegas Pro
- Sony Sound Forge
- Sony Acid
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via the compatible host)
