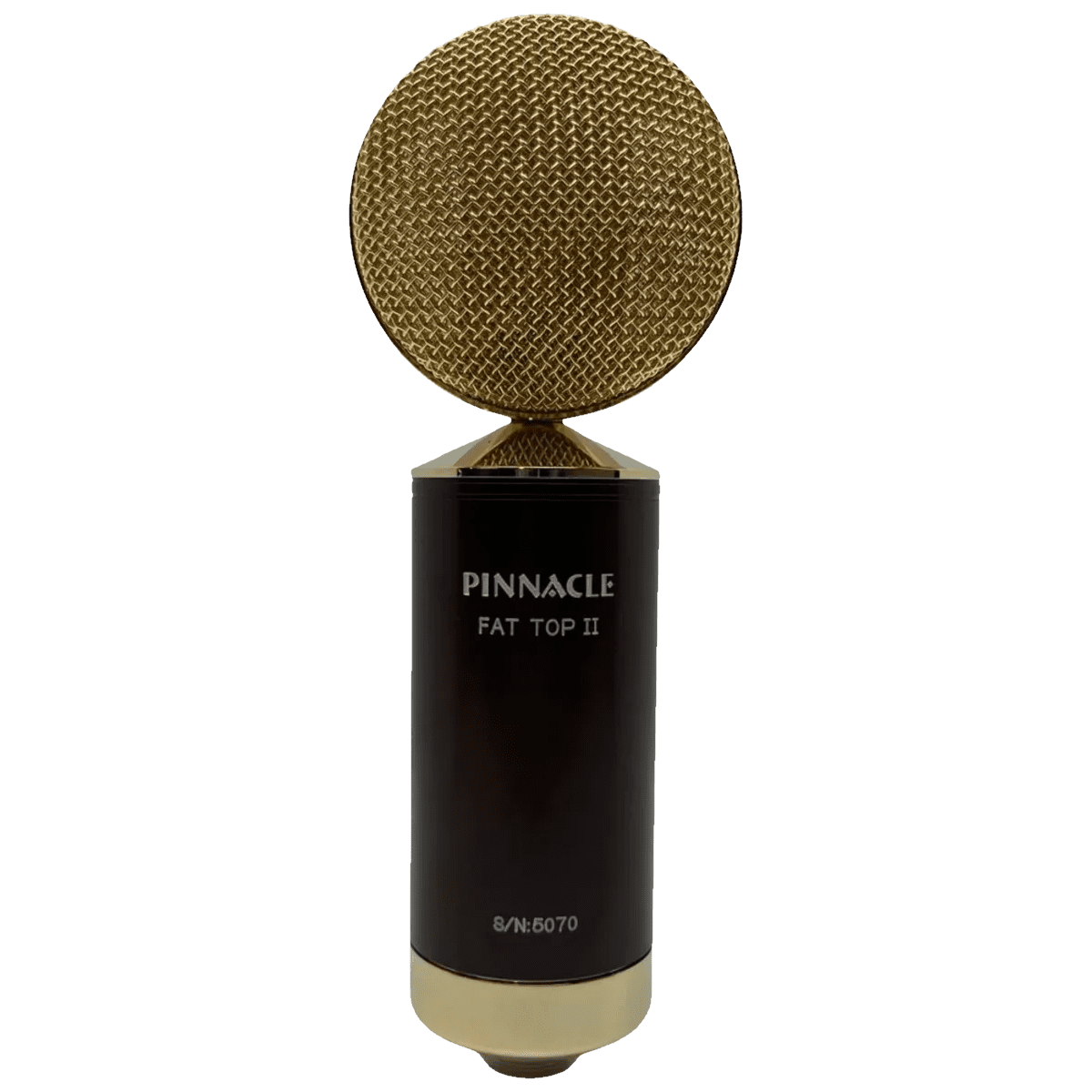

Pinnacle Microphones Fat Top II

* Please specify black or brown, single mic or stereo pair, and active-passive or Lundahl Transformer *


The Pinnacle Microphones Fat Top II is a short ribbon microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. This microphone is fitted with an active/passive switch. When switched to the active mode it isolates the output of the ribbon from the microphone preamp, the ribbon is consistently loaded at an optimal value. The active mode requires phantom power and will add up to 20db of gain. Best suited for guitar cabinets, piano, brass, and percussion instruments. Can be used in pairs in a Blumlein setup to pick up the entire room. Fat Top II Active/Passive comes standard fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic an improved definition, lower floor, and higher ceiling.


Type: Ribbon (velocity) Microphone

Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)

Polar Pattern: Symmetrical Figure 8

Sensitivity: -54.4 dB (1.5 (mV/Pa)

Frequency Response: 30 to 15 KHz (+/- 3dB)

Impedance: <=200 Ohms

Recommended Load Impedance: 1000 Ohms

Max.SPL (1% THD @1000 Hz): 135 dB

Equivalent Noise Level: to IEC 268-4 (A-weighted) 17dB

S/N ratio: re 1Pa: 70 dB

Connector: 3-Pin Male XLR

Size: Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
