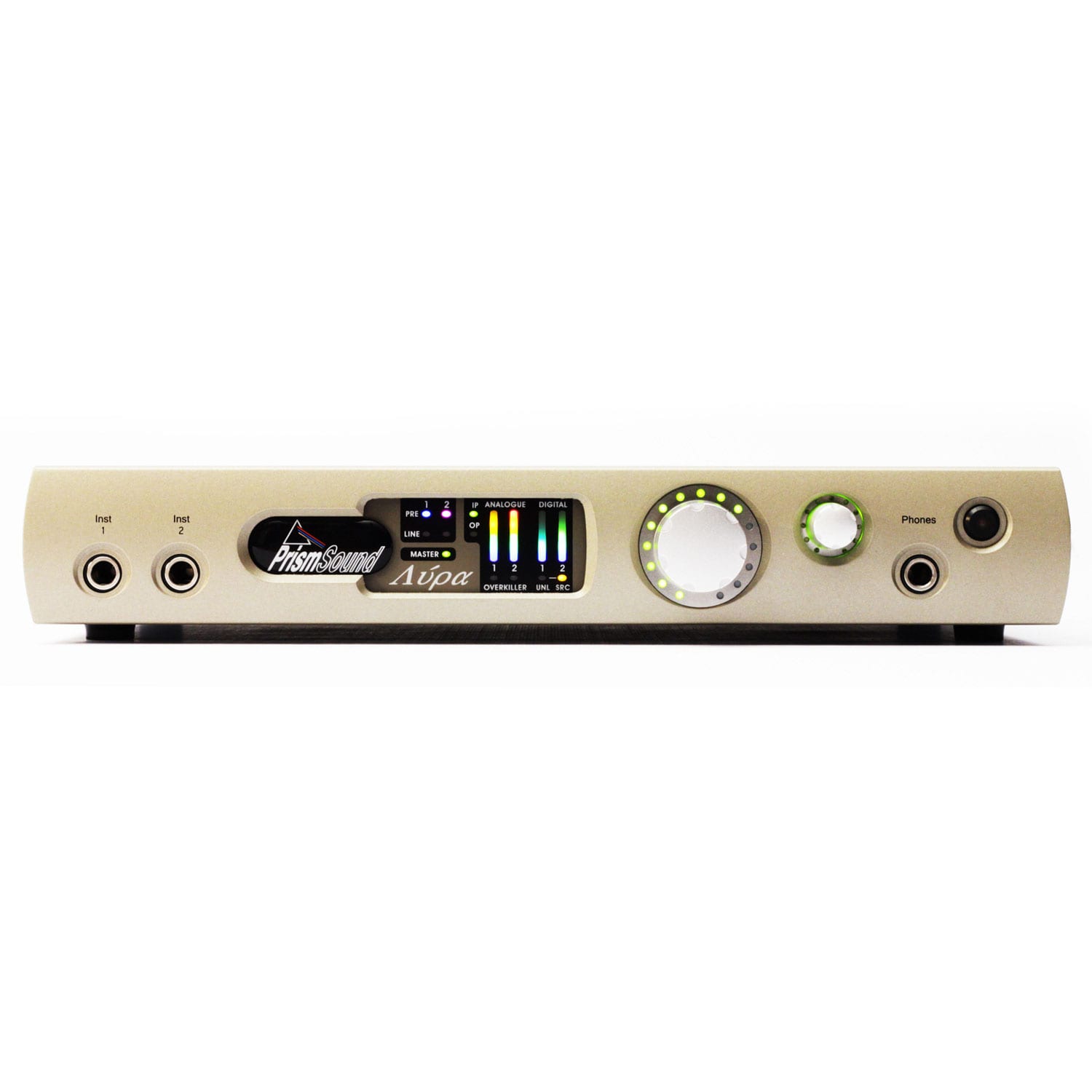

Prism Sound Lyra-2

Reference Grade Compact Audio Interface

* Please specify the Lyra-2 Ultimate Collection version or the Lyra-2 Pure *

SKU: Lyra-2 Categories: , , , , , , Tags: , ,

Description

Prism Sound Lyra-2

Lyra represents the pinnacle of compact audio interfaces. Packing Prism Sounds trusted, uncompromising AD/DA conversion into a compact chassis perfect for use in the studio or on the road.
Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count but do demand the highest quality and most transparent AD/DA available.

 Prism Sound LYRA 2 – Ultimate Collection

Including $4000 of premium instruments, contemporary FX plugins, an award-winning music production-focused DAW, and an industry-leading mastering and edit suite.

Prism Sound LYRA 2 – Pure

Packing Prism Sounds trusted, uncompromising AD/DA conversion into a compact chassis perfect for use in the studio or on the road. Lyra 2 has expanded I/O capabilities over its baby brother Lyra 1.

RENOWNED AD/DA CONVERSION

Lyra cuts no corners in its design and boasts the same trusted Prism Sound converters used on countless hit records. Its ultra-transparent characteristic means what you put into the Lyra is exactly what you get out of it.

PRISTINE PRE-AMPLIFICATION

Featuring two class-A microphone preamps, Lyra 2 guarantees superbly clean, detailed recordings that capture a performance the way it was intended.

SOFT-CLIP LIMITING (OVERKILLER)

Lyra’s analog input channels include a switchable Prism Sound ‘Overkiller’ circuit. This soft-clip limiter gently absorbs transients and allows signal levels to be pushed to their limits without risk.

QUALITY SUPPORT

Prism Sound’s reputation for audio excellence has been matched only by its top-quality after-sales support and technical advice. The longevity of a Prism Sound product is a testament to the dedicated team behind it.

LYRA 2

ULTIMATE COLLECTION VERSION

The Prism Sound Ultimate Collection is an optional bundle of products offered when purchasing a LYRA 1, LYRA 2, or TITAN interface.

Gain access to a wealth of creative, innovative, and industry-leading audio tools. Prism Sounds Ultimate Collection is valued at over $4000 and features an array of premium instruments, contemporary FX plugins, an award-winning music production-focused DAW and an industry-leading mastering and edit suite.

SOFTWARE

Lyra’s hardware front panel gives a continuous visual indication of the unit’s main settings and levels, but in-depth control is managed from the Lyra control panel. This runs on the host computer and can be brought into view whenever adjustments are needed.
The upper area of the control panel shows a panel of ‘Global’ settings for the entire group of connected interfaces and a panel of ‘Unit’ settings which is assignable to each connected unit in turn, using the enclosed drop-list. These settings are concerned with general parameters such as sync source and sample rate selection, metering, and buffering modes. An ‘Identify’ button causes all the LEDs on the selected box to light, to assist with identification in multi-unit systems. To the right, there are large buttons for loading and saving setups, and for online help.
Verifile
Verifile is a radical new proprietary technology exclusive to Prism Sound which allows computer audio streams and recorded files to be quickly checked for a wide range of clicks, errors, and dropouts, without any compromise in the audio content or any additional metadata. The Verifile process is entirely invisible and inaudible to the user, so using it is simplicity itself.
Developed to meet the needs of our audio archiving clients where even the most minute, the inaudible error is completely unacceptable. Verifile can quickly identify and detect any such imperfection making it also the ideal choice for mastering & mix engineers.

TECH SPECS

DIMENSIONS

1U 19inch rack mountable 2/3 width (rack ears available as an option)

Table top (inc feet): W: 285mm D: 242mm H: 50mm

Rack-mount (inc ears):
W: 483mm D: 242mm H: 44.5mm

POWER

90-250VAC, 50/60Hz internal power supply

IEC 6A connector

15W 0.5A(T) 20mm ceramic fuse

INPUTS

2 x XLR sockets

2 x 6.3mm TRS jack sockets (balanced or unbalanced)

1 x TOSLINK for S/PDIF or ADAT Optical input

OUTPUTS

2 x 6.3mm TRS jack sockets (balanced or unbalanced)

4 x 6.3mm TRS jack sockets (balanced or unbalanced)

1 x TOSLINK for S/PDIF or ADAT Optical output
