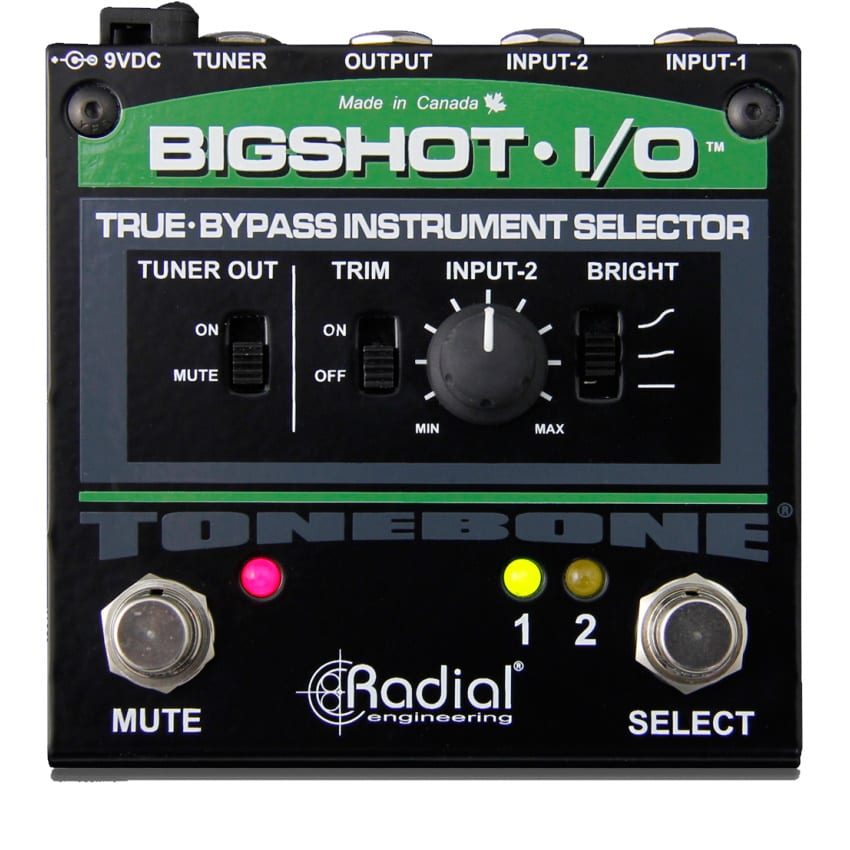

Radial BigShot i/o

$99.99

True-bypass Instrument Switcher

Description

The BigShot i/o is an easy-to-use instrument selector that lets you quickly transition between any two instruments while balancing the levels between them and feeding the output to your amplifier.

  • Toggle between two instruments with a single foot stomp
  • Adjustable volume control to match instrument levels
  • True-bypass operation retains the tone of the instruments
  • Separate tuner output and mute footswitch for silent tuning

Easy instrument changeovers on stage

The BigShot i/o allows you to switch between instruments on stage without pops through your amp or the need to adjust levels, while featuring 100% true-bypass for the most demanding purist. Input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the levels are matched when played through your amplifier. When passive instruments are used, a unique three-position Bright switch lets you compensate for instruments that lack shine in the high frequencies. The BigShot i/o is also equipped with a separate tuner output; with a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.

The BigShot i/o is a passive instrument selector that enables the artist to select between two instruments using a simple mechanical switch. This true-bypass design delivers straight wire performance between the input and the output thus resulting in near-perfect signal transfer. A variable level control can be used to reduce the input sensitivity on input-2 to compensate for overly loud instruments while a bright switch can also be inserted to compensate for the cable length and capacitive effect.

Specifications
Audio circuit type:Passive, true bypass
Frequency response:20Hz – 20kHz
Gain:-0.3dB
Features
Dim Switch, Bright Switch
Input Connectors:¼” jack for first instrument connection Input-2, ¼” jack with dim and bright controls
Output Connectors:¼” jack is switchable between always-on, or engaged by Mute switch
Extras:Tuner/toggle switch
General
Construction:14-gauge steel
Finish:Durable powder coat
Size (L x W x D):3.9″ x 3.6″ x 2″ (99 x 91.4 x 50.8mm)
Weight:1.25 lb (0.56 kg)
Shipping size (L x W x D):6.25″ x 4.25″ x 3″ (158.7 x 108 x 76.2mm)
Shipping weight:1.55 lb (0.70 kg)
Power:9VDC, center pole negative
Conditions:For use in dry locations only between 5°C and 40°C
Warranty:Radial 3-year, transferable
