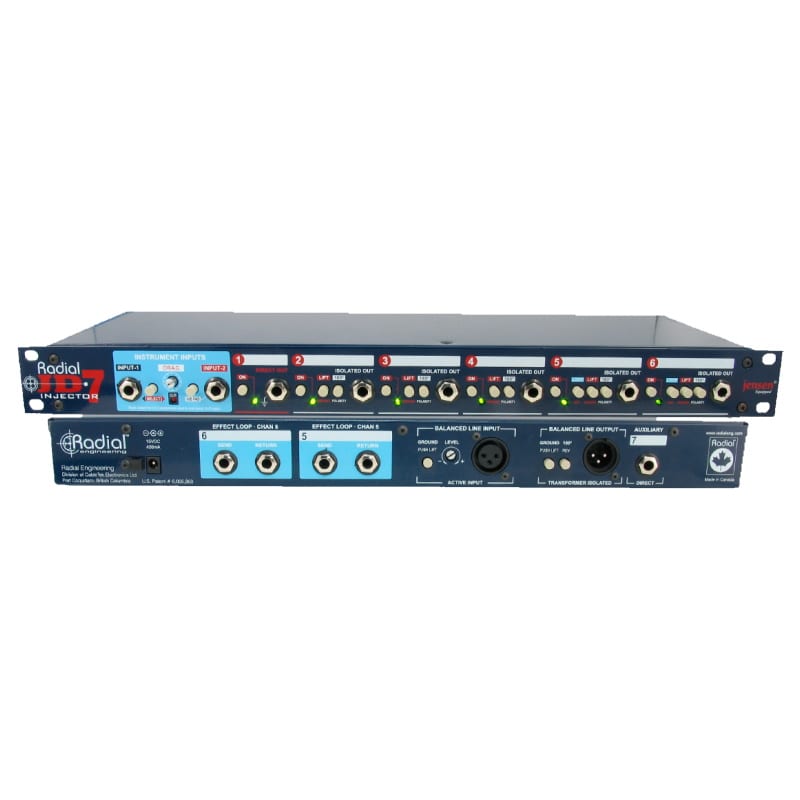

Radial JD7

Studio Guitar Distribution and Splitting


About this item



The Radial JD7 is a guitar signal splitter that is able to drive as many as seven amplifiers at the same time without introducing noise, signal loss, or hum and buzz from ground loops.

  • Drive up to 7 amplifiers and 2 effects loops at the same time
  • Jensen transformer isolation eliminates hum and buzz
  • Built-in Radial Direct box and Reamp capabilities
  • Drag control load correction for natural tone

Natural tone, quiet operation

The JD7 allows you to feed up to seven amplifiers simultaneously, with premium Jensen transformers on the outputs that ensure distortion-free signal transfer while blocking hum and buzz from ground loops. To help retain the natural tone of your instrument, Drag control load correction is also featured on the input so you won’t lose the tone and feel of connecting your guitar directly to an amplifier.

Record direct and Reamp through multiple amps

The JD7 has a built-in Radial DI box, so you can take a clean guitar track directly to your recording interface while simultaneously playing through multiple amplifiers. A Reamp input allows you to send your recorded guitar track from your recording device back through any or all of your amps, so you can focus on the performance and have the freedom to tweak your amps and microphones later on.

The Radial JD7 is a combination distribution amplifier, direct box and Reamp. As such there are a myriad of specifications that one may look at when determining suitability. The Radial JD7 incorporates 100% discrete parts, class-A circuitry and Jensen audio transformers in the guitar signal path to deliver near perfect unity gain with plenty of headroom and low noise. The fidelity of the audio and ‘feel’ can only truly be judged by plugging it in and closing your eyes!

Audio circuit type:100% discrete class-A with transformer isolation
Number of channels:2 Input 7 Outputs
Frequency response:20Hz ~ 20kHz (± 1dB)
Dynamic range:125dB (unbalanced input to unbalanced output)
Total harmonic distortion:0.05% @ 1k (unbalanced) 0.1% @ 1k (balanced)
Intermodulation Distortion:0.2% @ -20dBu
Input Impedance:Variable from 10k Ohms ~ 1megaOhm
Output Impedance:¼” unbalanced: 10k Ohms; XLR balanced: 150 Ohms
Maximum Input:+13dBu (unbalanced) +23dBu (balanced)
Input pad, 180° polarity reverse, Ground lift, Drag Control, Effects Loop
Input Connectors:1/4″, XLR
Output Connectors:1/4″, XLR
Construction:14 gauge steel chassis & outer shell
Size (L x W x D):17.5″ x 6″ x 1.75″ (44.5cm x 15.25cm x 4.45cm)
Weight:7.5lb (3.4 kg)
Shipping size (L x W x D):22″ x 10.375″ x 4.5″ (55.9cm x 26.4cm x 11.4cm)
Shipping weight:8lb (3.63kg)
Power:+15VDC/400mA adapter included
Conditions:For use in dry locations only between 5°C and 40°C
Warranty:Radial 3-year, transferable
