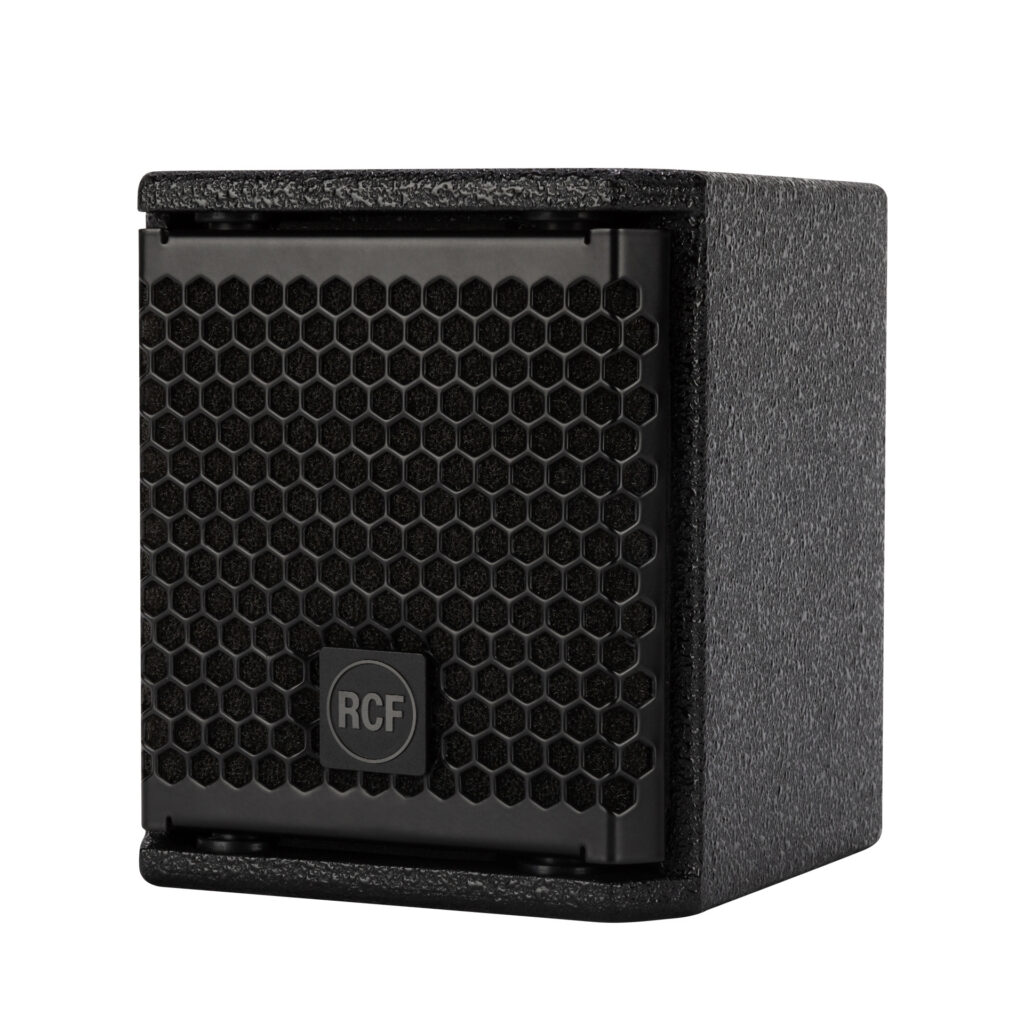

RCF COMPACT M 04

Two-way Professional Speaker

Description

The RCF COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond the expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allows the use of the M 04 on wall or ceiling installations.

MULTIPURPOSE SOUND

The elegant design aesthetic, multiple formats, and RCF signature sound quality that allows delivering a supreme audio experience in any application, from the restaurant and retail shops to clubs, corporate spaces, and venues.

ENGAGE YOUR CUSTOMERS

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience to enjoy an immersive musical experience.

IMPROVE THE AUDIO ATMOSPHERE

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of the RCF Compact M Series – optimal performance in both background music and high-powered foreground audio.

SMOOTH INSTALLATION

Compact M speakers stick to the functionality and style of the Italian design, always in harmony with any type of interior. Installation time is minimal with a complete range of solid wood cabinets, multiple rigging points and, accessories. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE (-10DB):
90 Hz ÷ 20000 Hz
MAX SPL @ 1M:
113 dB
HORIZONTAL COVERAGE ANGLE:
120°
VERTICAL COVERAGE ANGLE:
120°
DIRECTIVITY INDEX Q:
6
SYSTEM SENSITIVITY:
89 dB
Power section
NOMINAL IMPEDANCE (OHM):
16
POWER HANDLING:
60 W RMS
PEAK POWER HANDLING:
240 W PEAK
RECOMMENDED AMPLIFIER:
120 W
CROSSOVER FREQUENCIES:
1800 Hz
Transducers
DOME TWEETER:
1.0” neo, 1.0” v.c
NOMINAL IMPEDANCE (OHM):
16 ohm
INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
91 dB
WOOFER:
4.0”, 1.0” v.c
NOMINAL IMPEDANCE (OHM):
16 ohm
INPUT POWER RATING:
60 W AES, 120 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
88 dB
Input/Output section
INPUT CONNECTORS:
Euroblock
OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black – RAL 9005
HARDWARE:
2 x M6, 2 x M8
GRILLE:
Steel with clothing
CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
132 mm / 5.2 inches
DEPTH:
145 mm / 5.71 inches
HEIGHT:
148 mm / 5.83 inches
WEIGHT:
2.3 kg / 5.07 lbs
Shipping information
PACKAGE WEIGHT:
2.9 kg / 6.39 lbs
PACKAGE DEPTH:
150 mm / 5.91 inches
PACKAGE WIDTH:
233 mm / 9.17 inches
PACKAGE HEIGHT:
168 mm / 6.61 inches
