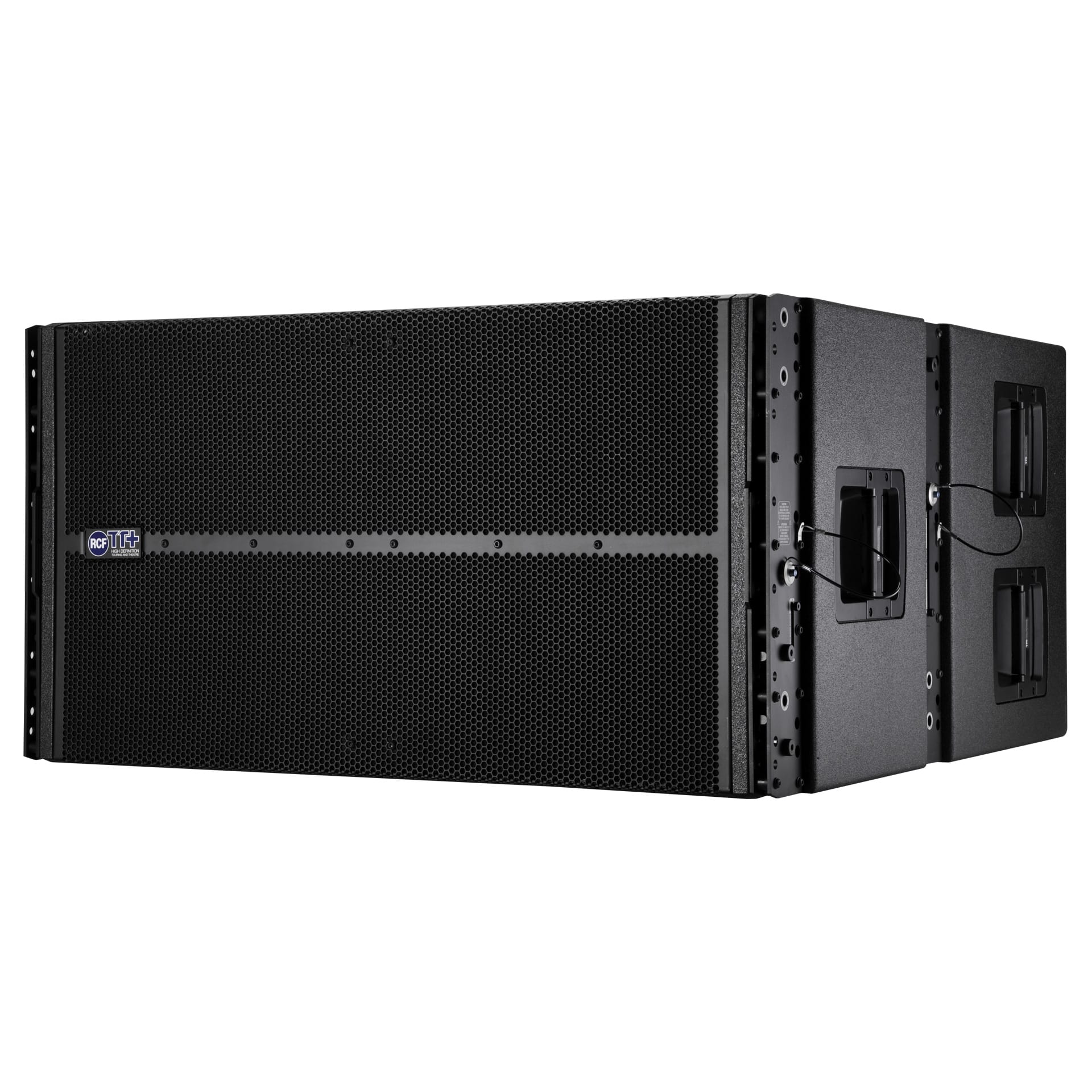

RCF TTL 36-AS

ACTIVE LINE ARRAY SUBWOOFER MODULE

Description

The RCF TTL 36-AS is the ideal flyable bass complement for the TTL55-A array system. The clam-shell design guarantees the maximum output per size while the 2 x 4.5” voice coil vented 18” woofer design offers the minimum of power compression. The TTL36-AS is perfect to create flown systems for theatrical and indoor requirements. For very large outdoor systems is the perfect complement to reinforce the TTL55-A bass performance in combination with the ultra-powerful TTS56-A subwoofers.

  • 4000 Watt (2 x 2000 W digital switching amplifiers)
  • 2 x 18″ high power neodymium woofer, 4.5″ v. c.
  • 96 Khz, 32 bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for stacking groups of 3
  • Tour grade Baltic birch cabinet, integrated rigging
  • RDNet on board
  • Maximum output per size

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE:
35 Hz ÷ 120 Hz
MAX SPL @ 1M:
142 dB
Transducers
WOOFER:
2 x 18” neo, 4.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+10 dBu
Processor section
HI-PASS FREQUENCIES:
100 Hz
LOW-PASS FREQUENCIES:
80 Hz
PROTECTIONS:
Thermal, Excurs., RMS
LIMITER:
Soft Limiter
CONTROLS:
DSP Controlled
RDNET:
Yes
Power section
TOTAL POWER:
8000 W Peak, 4000 W RMS
LOW FREQUENCIES:
8000 W Peak, 4000 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array flyware
HANDLES:
3 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
536 mm / 21.1 inches
WIDTH:
1022 mm / 40.24 inches
DEPTH:
970 mm / 38.19 inches
WEIGHT:
120 kg / 264.55 lbs
Shipping information
PACKAGE HEIGHT:
1287 mm / 50.67 inches
PACKAGE WIDTH:
1194 mm / 47.01 inches
PACKAGE DEPTH:
794 mm / 31.26 inches
PACKAGE WEIGHT:
177 kg / 390.22 lbs
