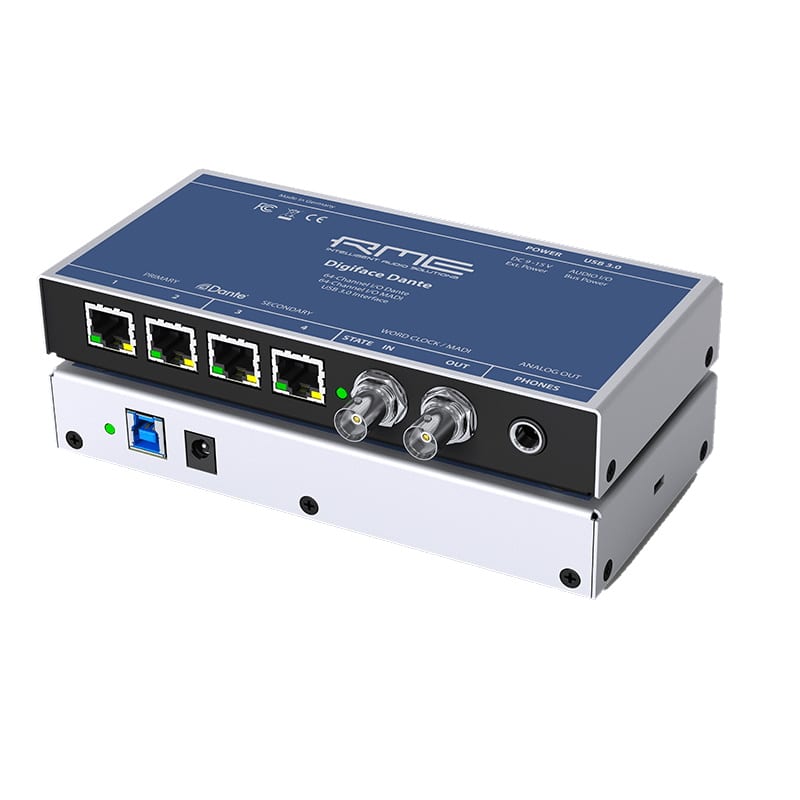

RME Digiface Dante

Dante is audio over IP protocol by Audinate. The Digiface Dante is a USB 3.0 from/to Dante interface, adding an external and fully mobile option to the internally used Dante PCIe card. Digiface Dante uses RME’s matured MADIface Series driver for Windows and macOS, with the lowest latency and industry-leading stability. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high-quality phones output offers a quick listen to any audio channel, but can also be used as a line output to provide an additional analog stereo mixdown. Equipped with the largest Dante module 64 channels can be sent and received via the network.

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Dante and MADI, 128 channels, are transferred via USB 3.0 and handled via both Dante control software and RME’s TotalMix FX, for full and struggle-free control of all audio.

Explore new ways to transport Audio

Equipped with two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also offers the functionality of a switch, connecting up to 4 network lines, removing the need for further switches to distribute and collect network lines, or offers redundancy operation with 2-port connectivity for both the primary and secondary network.

Used without USB the Digiface Dante automatically turns into a 64-channel Dante / MADI converter. The analog stereo output can be preconfigured to send out a mix of exactly those channels that are needed. Full network redundancy and switch functionality are also available. With USB bus power operation and an external power supply connection, a stable and redundant power supply is ensured. As Dante has become AES67 compatible, the Digiface Dante supports another format on the network side for even greater flexibility and more applications.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME’s latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward setup process — simply enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

DIGICheck – Test, Measurement and Analysis Tool for Mac & Windows

The Interface comes with RME’s unique software toolbox for metering, testing, measuring and analyzing digital audio streams. On Mac OS X provides unique functions and features of the spectral analysis of the data calculated in hardware level right through to sophisticated multi-channel level meter. On Windows, an additional multi-track recorder and the display of playback data from an audio software are also available.

SPECIFICATIONS

• 256 Channels: 128 in / 128 out
• 64 Channels Dante / 64 Channels MADI
• 2 x Gigabit Ethernet (802.3 compliant)
• 1 x MADI I/O coaxial I/0
• Headphone Output
• Wordclock I/0
• USB 3
• Bus-powered
• TotalMix FX
