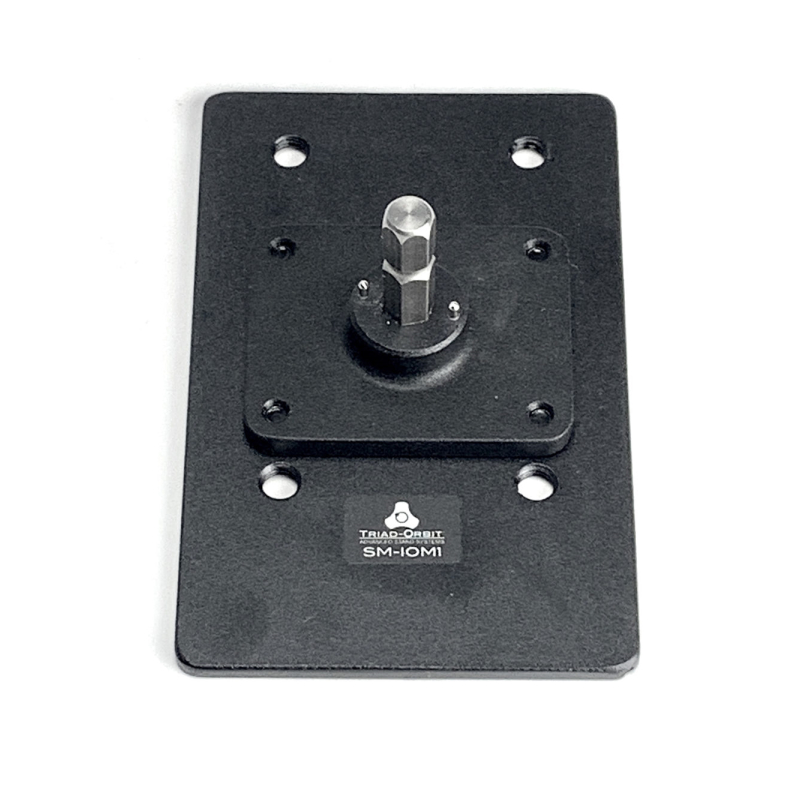

Triad Orbit – SM-IOM1

SM-IOM1 attaches to the SM-SW1. It is specifically designed for temporary truss mounted Atmos systems. Pair with the Triad-Orbit IO-GC grip clamp.

Description

DESCRIPTION

TRIAD-ORBIT QUICK CHANGE COUPLER PLATE

The Triad-Orbit, Precision® AV Atmos Speaker Mount System offers many options for mounting onto walls, ceilings or Triad-Orbit® IO. This uniquely designed patent-pending speaker mounting system allows the installer to meet the critical demands of Dolby Atmos installations providing unparalleled flexibility in mounting and alignment options, saving time in installation and laser alignment. SM-1 system features multiple speaker mounting plates for different manufacturers, dual redundant locking mechanisms, and 15 degree locking positions in both tilt and pan axis. Optional mounting configurations are available to accommodate wall, ceiling, long drop ceiling, pipe and truss mounting.

System Components

  • SM-WM1 wall/ceiling mount houses the SM-SW1 swivel. The SM-SW1 slides into the SM-WM1 mount and secures by 4 hex screws. This allows the speaker to be attached to the swivel first and then sliding the assembly in the SM-WM1 mounting plate.
  • SM-SW1 swivel can accommodate the various speaker mounting plates or can connect directly to speakers that have a dual hole pattern (50mm-80mm). SW-1 has spring pins in 15 degree increments as well as secondary tension locks in both tilt and pan axis.

Speaker Brackets

  • SM-705B and SM-708B (JBL 705p/708p speakers) have five possible mounting points to allow for optimal positioning. Refer to the provided instructions for mounting options.

Mounting Plates

  • SM-7iP (non-powered JBL 705/708 installer series) speaker plate has four (4) 50mm holes and four (4) 80mm slots for ease of mounting. This allows both vertical and horizontal orientation when attaching to the SM-SW1 swivel.
  • SM-GP (Genelec) speaker plate has four (4) holes spaced 127mm X 70mm to accommodate Genelec One series speakers and (4) holes spaced 108mm X 51mm for smaller Genelec speakers. Note: Many Genelec and other speakers may connect directly to the SM-SW1 using the 50mm-80mm slotted holes.
  • SM-PM1 pipe mounting plate is intended for use with standard 3/4” NTS pipe thread for long drop hanging or extending off of walls.
  • SM-IOM1 is designed to be used with Triad-Orbit IO-connected components. Use with Triad-Orbit IO-GC grip clamp for truss mounting configurations.
  • This list will be updated as new speaker manufacturer plates are approved for use. Contact Triad-Orbit if you do not see an intended use speaker on this list.
