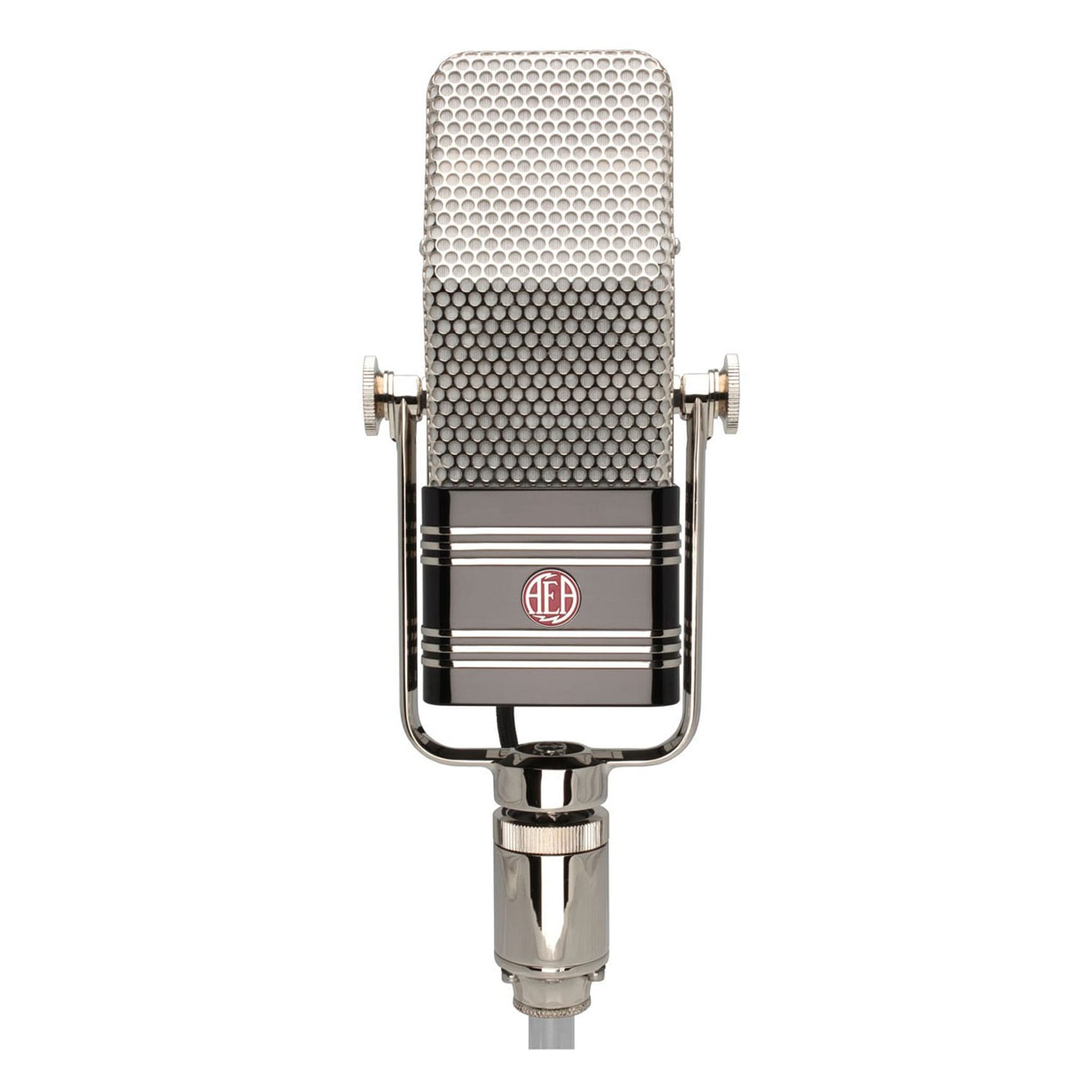

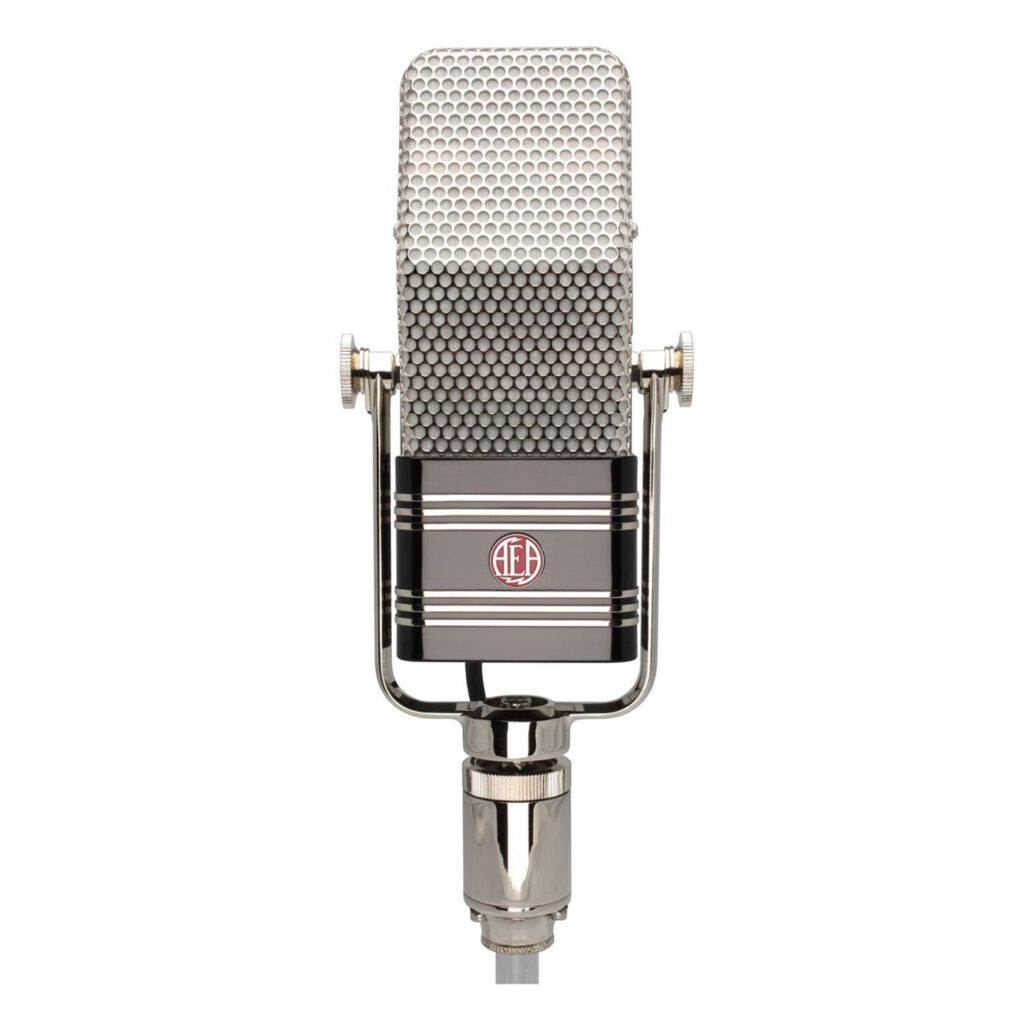

AEA R44CX

X-Motor Mod: High-Output version (6dB more than the original) of AEA’s flagship R44C

SKU: R44CX Categories: , , , , Tags: ,

Description

X-Motor Mod: High-Output version (6dB more than the original) of AEA’s flagship R44C

The AEA R44C is an exact replica of the vintage RCA 44BX ribbon microphone, considered the most musical-sounding microphone ever built. Many of the 20th century’s most iconic recordings were recorded by the R44.

R44 SERIES MICROPHONE OVERVIEW

  • Unparalleled warmth and legendary character
  • Full and rich tonality with generous low-end and proximity effect
  • Faithful reproduction of the RCA R44BX. Ribbon material meets or exceeds the original RCA spec.
  • Economy exterior R44CE exhibits the same, classic sound
  • Active A440 upgrade has an 18dB level increase and is optimized for all preamps
  • Made in the U.S.A.

THE FIRST GREAT MICROPHONE FOR MUSIC

Whether it was the smooth brass section of the soundtrack of a classic Hollywood film, the velvety lushness of a jazz vocal, or the larger-than-life drum sound of a classic rock recording, chances are an RCA 44-series ribbon microphone was used in the studio when the sound was created.
In use for more than 80 years in recording and broadcast studios throughout the world, the RCA 44 ribbon design is as rich in history as it is in sound and character. This instantly recognizable sound produces thunderous lows due to the strong proximity effect, full and rich midrange, and a unique top end taking the edge off of harsh instruments.
In 1976, AEA decided to begin servicing the thousands of existing RCA ribbon mics in the world. By 1998, AEA had acquired 100 percent of the interchangeable parts used within the original RCA 44. That same year we debuted our R44 reissue — called the AEA R44C — using RCA’s original methods and techniques.

MADE IN THE USA

All our microphones are handcrafted in the United States of America.

THE LEGENDARY BIG RIBBON SOUND

The AEA R44 maintains an iconic legacy of great ribbon mics by delivering a rich sound full of character and color.

Effective on a broad range of instruments and rooms, the R44 bolsters mids and lows while smoothing harsh high frequencies to produce a multi-dimensional sound unlike that of any microphone the world over.

Used on everything from crooning vocalists to full orchestras, the R44 is the ideal choice to capture the tone of any voice or instrument while imparting its legendary ribbon character.

DIFFERENT OUTSIDES, THE SAME SOUND

Our R44 Series microphones all share the authentic sound, feel and look of the 1936-38 RCA 44BX. The R44 series microphones are all detailed, hand-crafted replicas, using parts that are made to be interchangeable with an original RCA 44. We manufacture three different versions of the R44 and an optional hotrod.

At the core, every version of the R44 sounds the same when powered with a ribbon preamp. The major differences between the versions are the exterior look and the amount of output level.

THE R44 VARIANTS

The passive R44 is available in two exteriors– the original museum-quality replica R44C and the aesthetically cost-effective R44CE. Both mics have an identical sound and are exactly the same on the inside. The difference between the two is only cosmetics and price.

The active A440 is a preamp-flexible R44 with 18dB of extra output. It is custom-painted with the RCA classic umber-colored transformer case.

High-Output Upgrades

The original R44 microphones were constantly updated during their twenty years of production, and after carefully looking at some of the technical modifications, we’ve created two upgrades to the original R44.

The active A440 is an ultra-premium version of the R44C. It is complete with a custom Lehle transformer, RPQ JFET preamp electronics, and the “X” motor hotrod and is the quietest ribbon microphone ever manufactured. It retains the same sonic character of the passive R44C, but with an additional 18dB of output and greater flexibility with different preamps. Many engineers favor their A440s over their vintage RCA 44s due to the advantages in noise performance.

We developed a modified R44 transducer, called the X-Motor, that includes two additional magnets that provide an extra 6db of output. With a sound identical to the original 44, the X-Motor ‘hot rod’ mod is useful for scoring and classical sessions and other applications demanding a wide dynamic range with the classic 44 sound. Available as an upgrade in R44C and CE models, the X-Motor version of the R44 bears a red badge on the outside instead of the standard black badge.

YES, THERE’S A MATCHING PREAMP

The preamp is critical for optimum performance for our passive R44 models. Preamp gain should be at least +60dB or higher and it should have a very high impedance. It’s the same requirement with all passive ribbon mics.

To guarantee consistent, full-range ribbon sound, we recommend AEA’s RPQ2RPQ500, and TRP2 preamps, which were specially designed for ribbon microphones. However, preamps with above a 5K ohm impedance found in many live soundboards are adequate for guitar amps and other louder instruments. On quiet sound sources or for distance recording, an AEA preamp is highly recommended.
