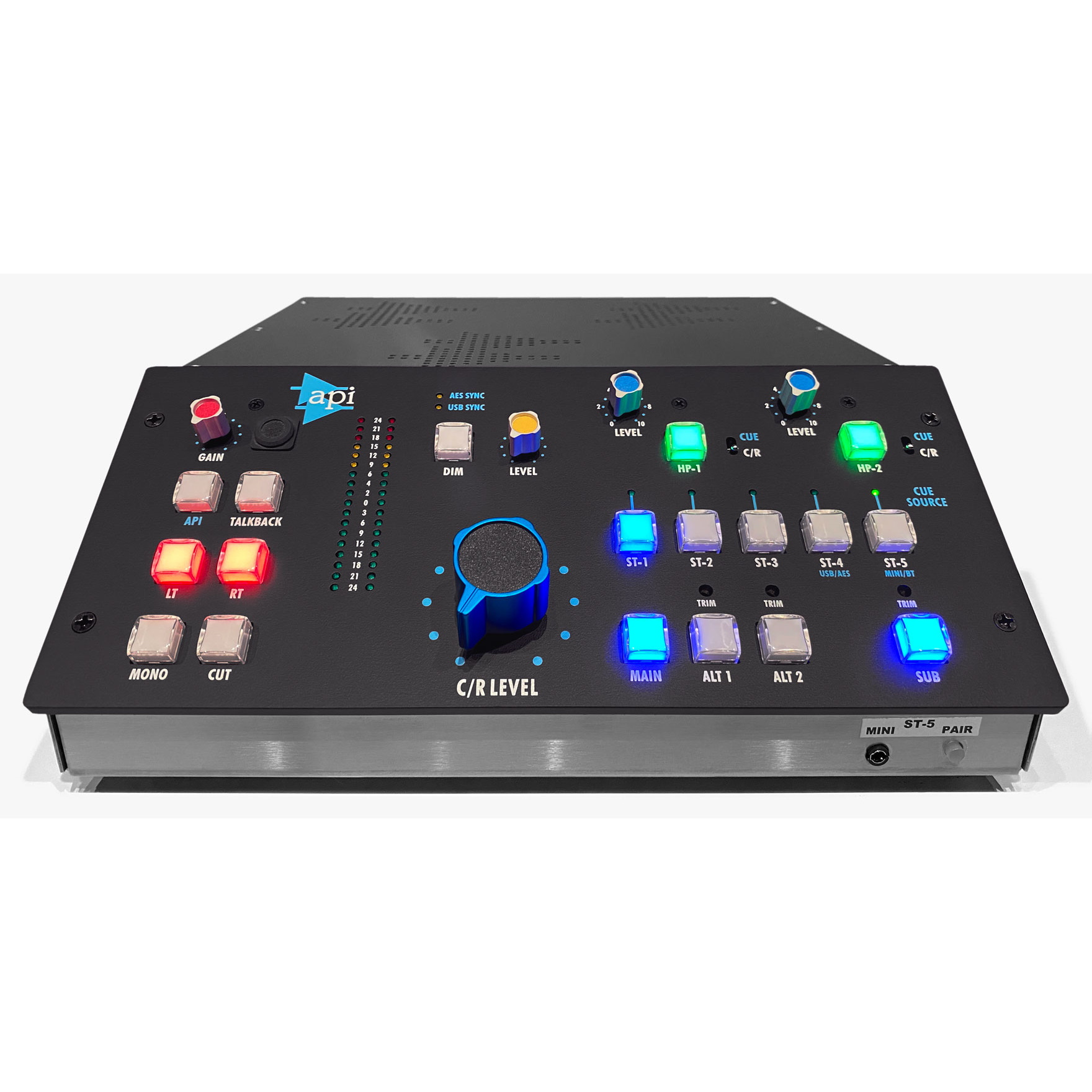

API Audio MC531 Monitor Controller

SKU: MC531

Desktop Monitor Controller with Main Output, 2 Alternate Outputs, 7 Stereo Input Sources, 2 Headphone Outputs, and Talkback Mic

Quantity:

About this item

Product

Description

API Audio MC531 Monitor Controller Features

  • 3 stereo balanced line-level analog audio inputs
  • Digital audio input, selectable between AES3 or USB
  • 3.5 mm input on front and rear panel
  • Bluetooth connectivity
  • All 5 inputs are buffered with the API 2510 Op Amp.
  • 3 stereo balanced line level outputs with individually adjustable trim levels
  • Mono balanced line level output for feeding a subwoofer with adjustable trim level
  • Independently assignable SUB output
  • Stereo outputs include full mute, mono, and DIM controls
  • 2 stereo headphone outputs
  • Headphone source selection toggle switch for C/R or CUE SOURCE
  • CUE SOURCE selectable from any of the 5 inputs
  • Built-in Talkback Mic with gain control and activation button
  • 18 segment stereo LED meter
  • Balanced unity level meter output for connecting to an external meter system
  • External power supply

Building on its rich heritage of manufacturing the highest quality mixing and recording consoles, API proudly introduces the new MC531 Monitor Controller. Featuring the same level of craftsmanship found throughout API’s entire product line, the MC531 offers a stand-alone version of the monitoring functionality built into the center section of API’s legendary analog consoles. Specifically designed to include fully-featured monitor control for DAW workflows, the MC531 can integrate seamlessly into any audio production environment where functionality, ease of use, and an accurate reference of each audio source are required.

Specifications

Input Connections:ST-1, ST-2, ST-3: 1/4″ Balanced Analog, 30K Ohm Input Impedance
ST-4: Digital Input, USB Type-B, XLR female AES3
ST-5: Bluetooth, Mini Jack front and rear in parallel
Output Connections:
Control Room Outputs:XLR, selectable electronic or transformer balanced, 75 Ohms
Meter Output: 1/4″ Balanced
Headphone: 1/4″ Stereo
Maximum Input Level:+28dBu
Maximum Output Level:+28dBu
Frequency Response:+/-0.5dB 20Hz to 50kHz
Signal to Noise Ratio:115dB
Power Consumption:16 Watts
Unit Size:11.0″ x 12.75″ x 4.0″
Shipping Size:14.5″ x 13.5″ x 8.5″
Unit Weight:8.5 lbs
Shipping Weight:12 lbs
