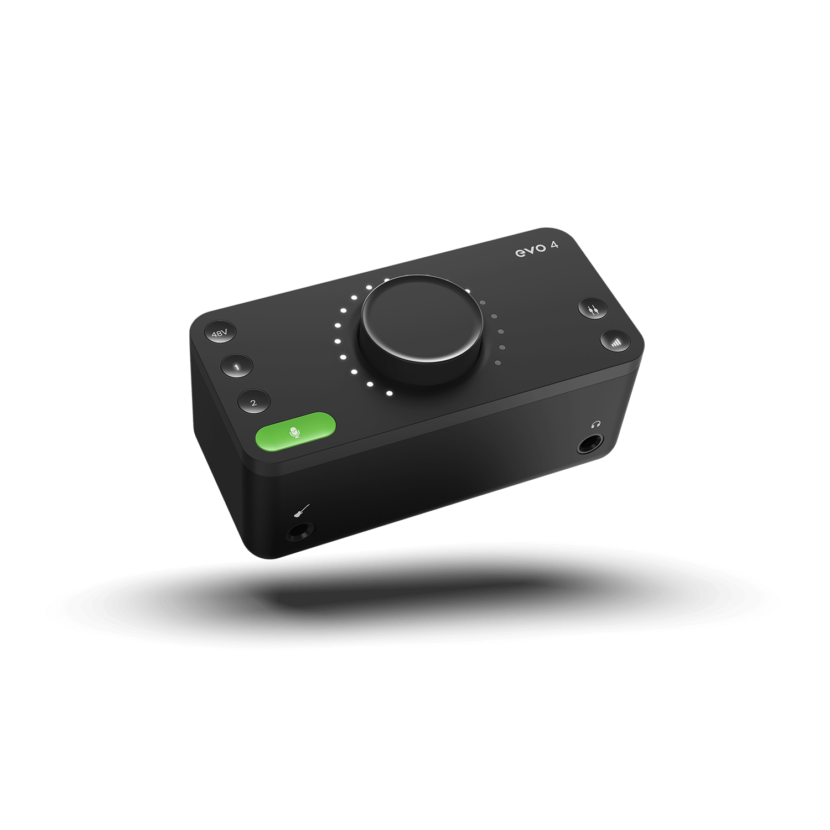

Audient EVO 4

Capture your microphones and instruments and start recording audio directly to your computer with Audient EVO 4’s intuitive feature set. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect interface for beginners and pros alike.

Available on backorder

Description

Capture your microphones and instruments and start recording audio directly to your computer with Audient EVO 4’s intuitive feature set. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect interface for beginners and pros alike.

Made for you

Made for the smart creative, EVO 4 will deliver a powerful recording solution no matter your art form.

Capture creativity fast

Whether recording your latest track, producing a beat, or creating a podcast, get your ideas down fast with EVO 4’s advanced and versatile feature set.

Unrivaled audio performance

Building on Audient’s 20+ years of audio design experience, EVO 4 gives you unrivaled audio quality on your desktop.

The professional sound

EVO 4’s innovative technical design ensures you will get professional quality recordings from the start.

2 x EVO Preamps

Get the most from your microphones with the clean, warm, and accurate EVO preamps – offering 58dB of gain range.

High-Performance Converters

Hear your recordings more accurately than ever with 113dB of dynamic range.

Instrument Input

Plug your guitar or bass straight in through the JFET instrument input and start recording instantly.

2 x EVO Mic Pres

Designed to sound clean, detailed, and accurate

Class-Leading Converters

AKM converters (AD/DA)

Smart gain

Dial in your channels automatically

Smart Touchpoints

Intuitive and fast control at your fingertips

JFET Instrument Input

Plugin guitars, basses, keyboards, and more

Speaker Outputs

Plugin your speakers

Headphone Output

High-performance headphone output

Platform Compatible

Compatible with Mac, Windows, and iOS

Monitor Mix

Ultra-low latency when recording

Monitor Pan

Create better headphone mixes

Audio Loop-back

Record your computer audio simultaneously

USB2.0 Bus Powered

Power from your computer

Phantom Power

True Bus-Powered +48v

DAW Controlled Mic Pres

Set levels using compatible software

24bit / 96kHz

Stunning audio quality

Free Software + Plugins

Requirements:
  • Windows 7 and above officially supported (32bit and 64bit)
  • PC or Laptop manufactured after January 2006
  • Intel Core 2 @1.6Ghz, or AMD equivalent
  • 1GB RAM Minimum
  • OSX: 10.7.5 (Lion) or later
  • Intel CPU
  • 1GB RAM Minimum

SPECIFICATIONS

Microphone Preamplifier
Mic Gain Range:
58dB
Line Gain Range:
58dB (-10dB pad)
Phantom Power:
48v +/-4v @ 10mA/Channel
Mic EIN:
<-128dBu
CMRR:
>85dB @ 1kHz
Maximum Input Level:
+16dBu
Input Impedance (Mic):
>3kΩ Balanced
Input Impedance (Line):
>10kΩ Balanced
Frequency Response:
+/-0.5dB 10Hz to 40kHz
Crosstalk:
<-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):
<0.0015%
SNR:
100dB
XLR:
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack:
TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I
D.I Gain Range:
58 dB
Maximum Input Level:
+10dBu
Input Impedance:
1MegΩ Unbalanced
Frequency Response
+/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz):
<0.3%
SNR:
100dB
1/4” Jack:
TIP (Hot) & SLEEVE (Shield)

ADC Inputs
Digital Reference Level:
0dBFS = +8dBu
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
-105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):
<0.001%
Dynamic Range:
113dB A-weighted

DAC Outputs
Maximum Output Level:
+11dBu
Digital Reference Level:
0dBFS = +11dBu
Output Impedance:
<100Ω Balanced
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
<-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):
<0.0015%
Dynamic Range:
113dB A-weighted
1/4” Jack:
TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output
Output Impedance:
<50Ω
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):
<0.0015%
Dynamic Range:
113dB A-weighted
Max Level Into 30ohms:
+0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms:
+4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms:
+10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack:
TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:
(in to out)
44.1 kHz
0.594ms
48.0 kHz
0.552ms
88.2 kHz
0.302ms
96.0 kHz
0.281ms

DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback
44.1 kHz
~2.5ms
96.0 kHz
~2ms

DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)
44.1 kHz
5ms
96.0 kHz
4.1ms

Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.

USB 2.0 High Speed
No. Of Input Channels
2 Analogue
No. Of Output Channels
2 Digital
Connector:
USB Type-C
Included Cables:
1m USB 2.0 Type-C to USB Type-A

Weight & Dimensions
Weights:
Unit:
360g

Packaged:
600g
Dimensions:
Unit:
140mm (w) x 67mm (h) x 67mm (d)

Packaged:
172mm (w) x 88mm (h) x 97.5mm (d)
