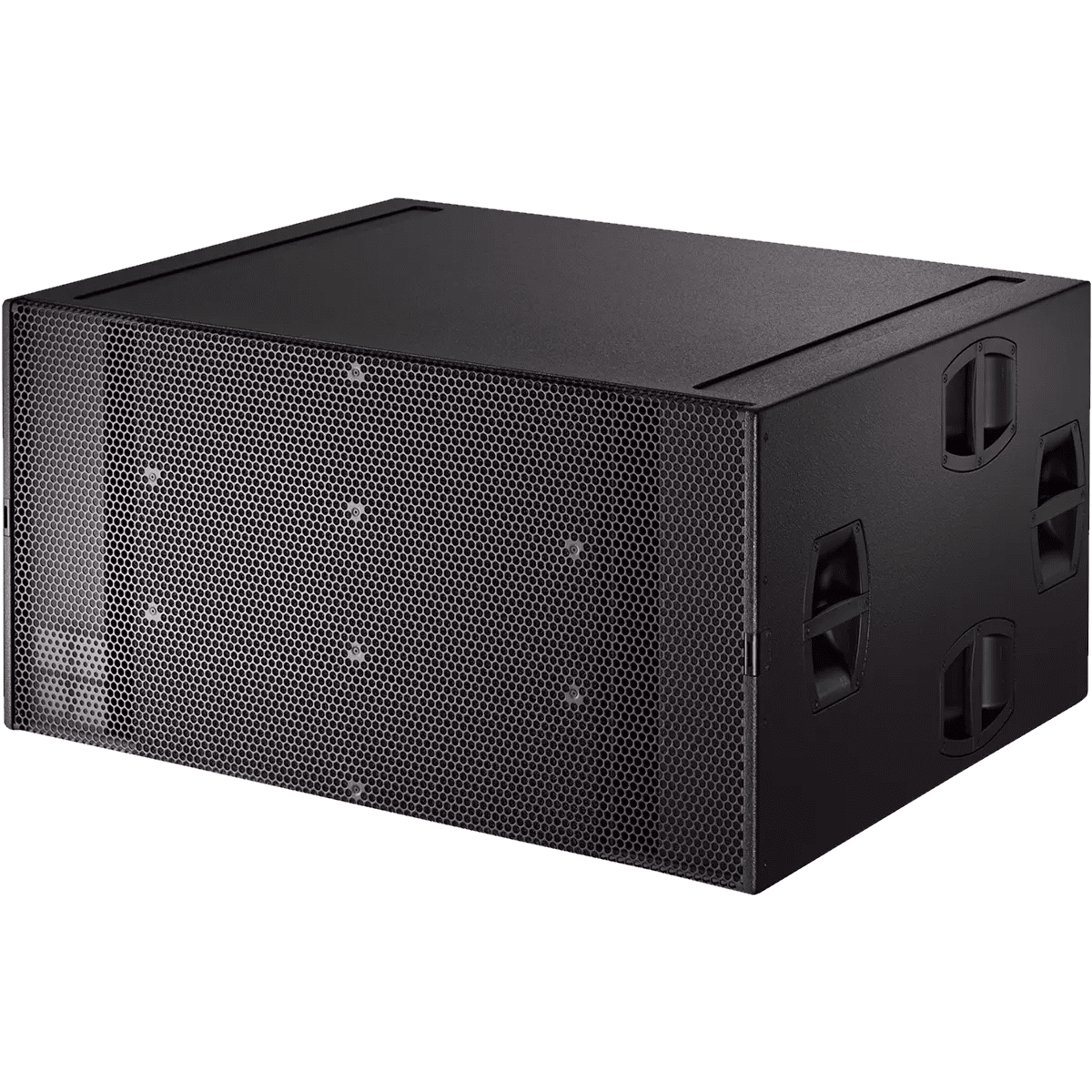

d&b audiotechnik B22 Subwoofer

SKU: B22-sub

High-performance subwoofer intended for ground-stacked applications


About this item



d&b audiotechnik B22 Subwoofer

  • Components 18″/18″
  • Dispersion Omni directional
  • SPLmax 143 dB

Product description

The B22-SUB is a high-performance subwoofer designed for ground-stacked applications, housing two long excursions of 18″ drivers built into a bandpass horn cabinet design. With high Sound Pressure Levels and extended frequency response, the B22-SUB is ideal for any large-format sound reinforcement application. When operated in INFRA mode, the B22-SUB can be used to complement other d&b subwoofers by extending the frequency response of the system. When three or any multiple of three B22 subwoofers are used, they can be positioned in a Cardioid Subwoofer Array, achieving impressive directivity control at lower frequencies and significantly reducing the energy radiating toward the rear.

The cabinet is constructed from marine plywood and has an impact-resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The side panels of the B22-SUB both incorporate four handles, whilst four wheels are mounted to the rear. The enclosure features two runners to protect the bottom panel from scratching. Two correspondingly shaped recesses are incorporated into the top panel of each B22-SUB cabinet to accept these runners, preventing cabinet movement when stacked.


The d&b D80 amplifier is recommended to drive the B22-SUB. The d&b D20 and 30D amplifiers can also be used with the appropriate loudspeaker configuration selected.


System data

Frequency response (-5 dB standard)
37 Hz – 90 Hz
Frequency response (–5 dB INFRA mode)
32 Hz – 68 Hz
Max. sound pressure1
with D20/30D – 140 dB
with D40/D80/40D – 143 dB

Loudspeaker data

High-performance subwoofer intended for ground-stacked applications
Nominal impedance
4 Ω
Power handling capacity (RMS/peak 10 ms)
1000/4000 W
2 x 18″ driver with neodymium magnet
2 x NLT4 F/M
optional 2 x EP5
Dimensions (H x W x D)
585 x 1160 x 920 / 1046 mm
23 x 45.7 x 36.2 / 41.2”
106 kg (234 lb)

1 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
