Description

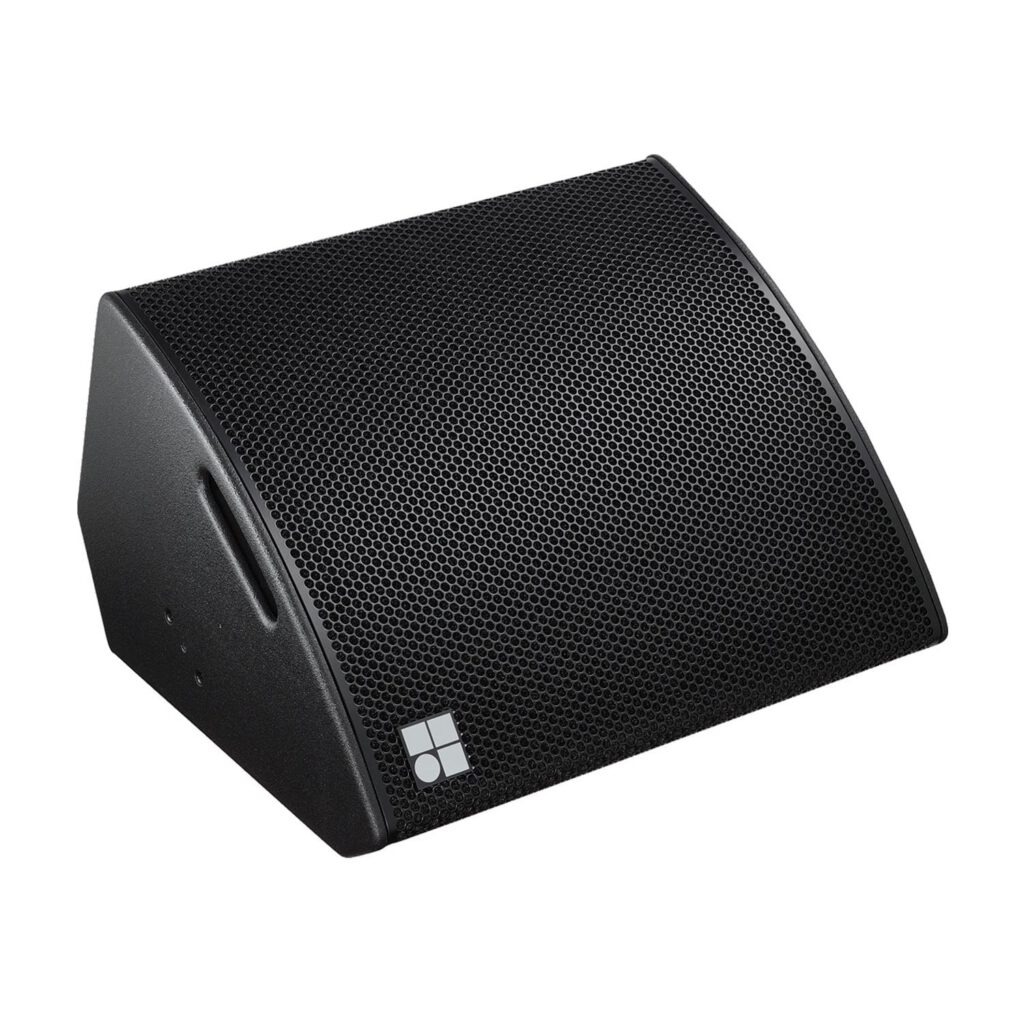

The 2-way passive d&b audiotechnik MAX2 Monitor houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver and achieves 75° conical constant directivity dispersion. The driver arrangement uses a single magnet assembly, allowing for a compact cabinet design with a low profile for strict visual demands. The MAX2 provides a broad variety of deployment possibilities, whether used individually as a stage monitor; as a stand-alone full range system, or, when combined with d&b subwoofers, as a drum fill. The loudspeaker cabinet is constructed in marine plywood with an impact-resistant paint finish. Four M10 threaded inserts allow connection to a flying bracket. The cabinet incorporates a pair of recessed grips for handling, while the front is protected by a rigid metal grill backed with an acoustically transparent foam. A pole mount is incorporated into one of the side panels. Two runners recessed in the bottom panel protect the cabinet from scratching and prevents movement.
System data
Frequency response (–5 dB standard) 55 Hz – 20 kHz4
Max. sound pressure (1m, free field)1
with D6/10D
with D20/30D
with D80 131 dB
135 dB
135 dB
Cabinets per amplifier channel 2
Loudspeaker data
Configuration 2-way stage monitor
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 250/1600 W
Nominal dispersion angle (h x v) 75°
Components 15″ driver with ferrite magnet
coaxial 1.4″ exit compression driver
passive crossover network
Connections 2 x NLT4 F/M
optional 2 x EP5 or 2 x NL4
Dimensions, weight
Dimensions (H x W x D) 354 x 580 x 496 mm2
14 x 22.8 x 19.5″ 2
Weight 23 kg
50 lb
