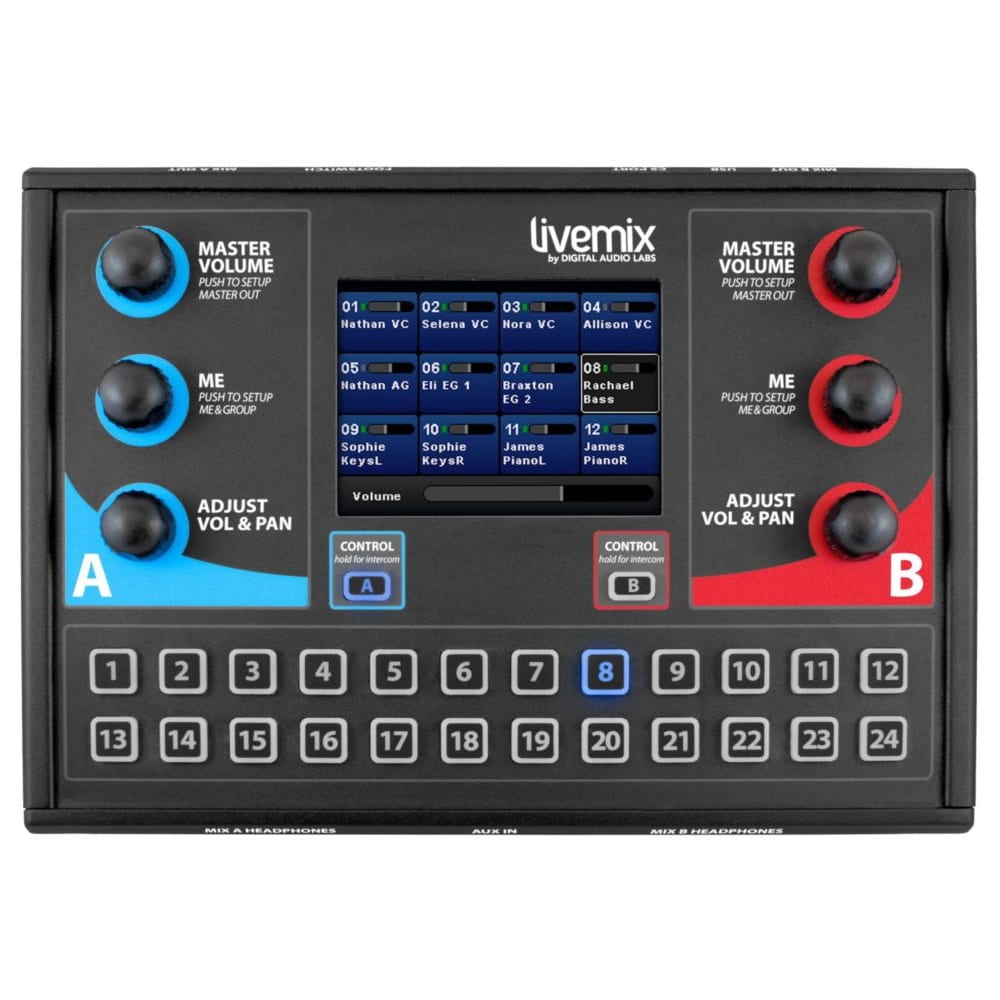

Digital Audio Labs Livemix CS-DUO

Dual Mix Personal Mixer

Description

The Digital Audio Labs Livemix CS-DUO is the most feature-rich personal mixer on the market. The LCD touchscreen with custom naming makes creating a mix easy. Dedicated knobs provide quick access to essential features.

The Livemix CS-DUO is two personal mixers in one. With two mixes per unit, you can reduce your overall per node cost without sacrificing quality or functionality.

The CS-DUO provides 24 channels plus accessory channels, each with EQ and compression. The master output features EQ, compression, and reverb. MirrorMix® remote setup and mixing, mute and solo options, channel grouping, and LCD dimming make the Livemix system deep enough for professionals, but simple enough for volunteers.

FEATURES

2 Mixes in One Box

Two performers can share a personal mixer to decrease cost and clutter. Each side (A and B) has its own discrete mix and separate headphone amplifier. This isn’t just a built in splitter, this is two totally separate mixers in one unit!

24 Channels + 4 Accessory Channels

While most personal mixers give you 16 total mixable channels, Livemix offers 24 plus additional accessory channels. With Stereo Pairs and built-in Groups, it’s easy to build true stereo pairs and multi-channel groups.

Simple To Use

Making a personal mix is much easier when you can “turn up Sasha” or “turn down the bass” and not try to remember who is on what channel. With a color LCD touchscreen with custom names, scribble strips, and guessing is a thing of the past. Dedicated knobs for adjustments, your own channel group, and master volume make mixing simple and intuitive.

Crystal Clear Headphone Amplifier

The headphone amplifier on Livemix will drive nearly any impedance and give you incredible space and tonal separation. This makes creating a personal mix easier as channels on other systems can tend to “smear” or “get muddy”.

EQ, HPF, & Dynamics on Every Channel

Effects presets for each instrument type helps make the mix setup simple. You can also bypass the presets and edit each effect directly. The effects in Livemix are global so you only have to set them up once and everyone gets an incredible sounding personal mix.

Built-in Accessory Channels

In addition to the 24 input channels, Livemix boasts 4 accessory channels. Built-in ambient mics help musicians locate themselves on stage when using in-ear monitors. The intercom allows team communication and the auxiliary input can connect to a media player for practicing songs or for tracks. The built-in metronome helps everyone stay on time.

Remote Mixing and Intercom

MirrorMix remote mixing lets anyone get help when they need it. Any personal mixer can audition and mix any other mix. Push out a good starter mix to all mixers at once with Global MirrorMix. In MirrorMix mode, the built-in intercom is direct to the target mixer for easy confirmation and communication.

LIVEMIX CS-DUO
Output Power & THD+N @22Ω 200mW @ 1% THD+N
100mW @ .03% THD +N
@32Ω 250mW @ 1% THD+N
100mW @ .014% THD +N
@64Ω 250mW @ 1% THD+N
100mW @ .005% THD +N
@300Ω 130mW @ 1% THD+N
100mW @ .003% THD +N
Frequency Response 20 Hz – 22 kHz ± 3 dB
S/N Ratio 103 dB
Input Impedance (Aux In) 7.5 kΩ
Crosstalk (Left to Right) -103 dB
Max Cable length from MIX-16 100m CAT5e cable
(shielded recommended)
Filter Q High Pass & Low Pass .707
Peak/Dip 1.2
Filter Cut/Boot Amount ± 6 dB
Ambient Mic Gain 25 dB

Accessories

MT-1 DUAL POSITION MOUNT

The Livemix MT-1 microphone stand mount is a dual position mount for Livemix personal mixers. The MT-1 mounts on top of a microphone stand (with included brass locking nut), or using the built-in clamp, secure mount to microphone or music stand.

FP-2 HANDS-FREE FOOT PEDAL

The FP-2 is a multi-function foot pedal allowing hands-free control of key CS-SOLO and CS-DUO features. The FP-2 allows musicians and performers to make channel selections and mix adjustments without taking their hands off their instruments or microphones.

LM-MICPRE INTERCOM MIC PREAMP

The LM-MICPRE is a mic preamp that allows you to use an external dynamic microphone as your intercom mic.  This frees up channels on the mixer as well as gives MD’s and Techs a clear and direct line of communication to the team!

CAT6 CABLES

Shielded CAT6 cables for connecting Livemix personal monitor system components. The shielding adds extra protection from other signals like wireless microphones and wi-fi connections. Note: Shielded CAT5e cables are perfectly acceptable to use with the Livemix Personal Monitor System.

SNAKE CABLES

Snake cables in various configurations provide connections from your analog gear to the Livemix AD-24.
