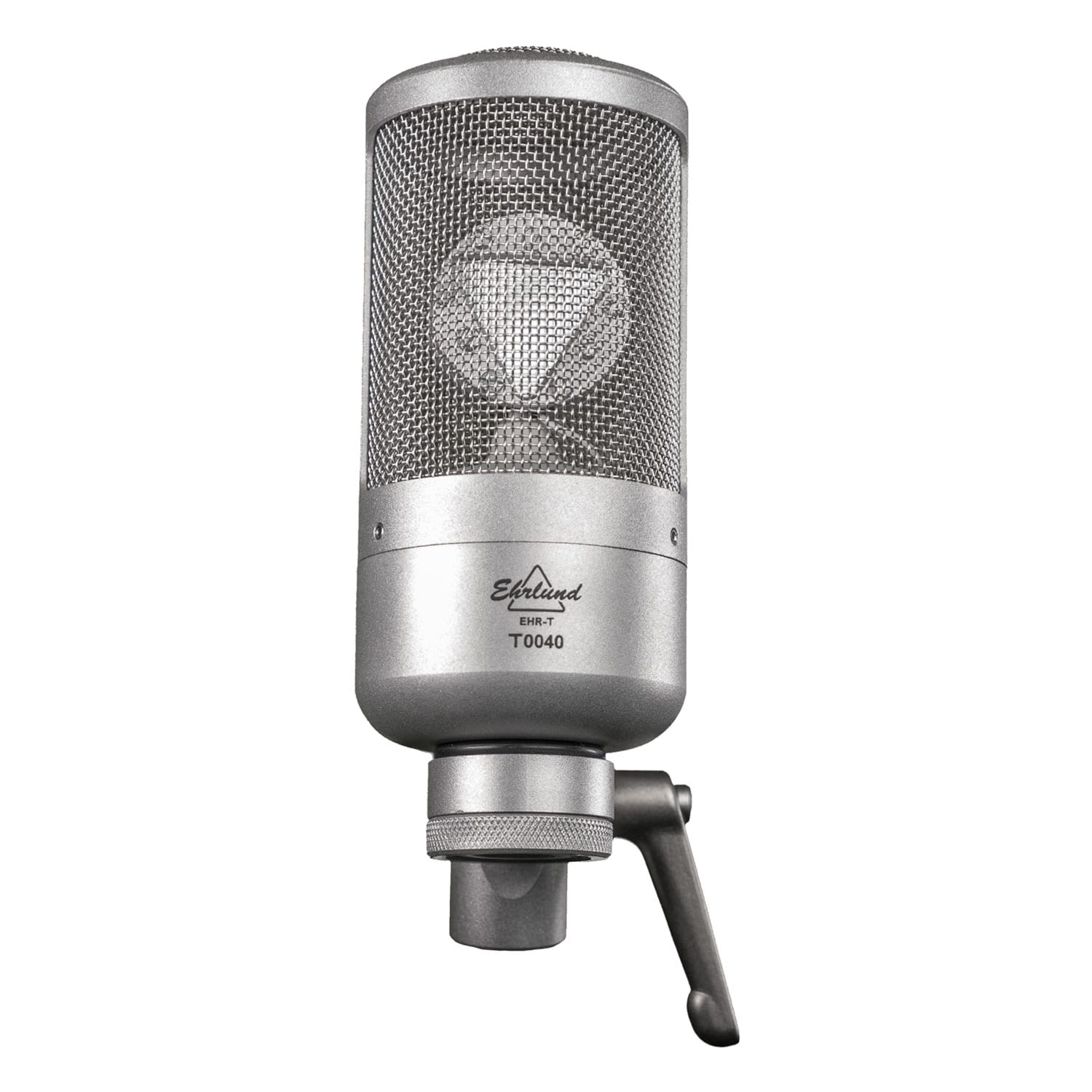

Ehrlund EHR-T

SKU: EHR-T

Two separate outputs per microphone. Condenser microphone with a unique triangular membrane. True cardioid Frequency Range 7-87kHz. Aluminium body, housing made of toughened stainless steel.

Quantity:

About this item

Product

Description

The Ehrlund EHR-T is a Swedish manufactured condenser microphone for studio use; it has been designed to deliver the cleanest sound possible. Its patented dual triangular membrane design has been allied to patented very low noise and low power phantom feed amplifiers. The EHR-T has both broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has impressive stats in self-induced noise, sensitivity, and frequency range. Having two separate channels for the front and back side of the microphone brings great flexibility at the mixing table. The output signal is strong and usually does not need much amplification.

A double version of the EHR-M microphone EHR-T has the same broad recording characteristics as the EHR-M. The EHR-T gives you almost total flexibility at the mixer table. With two separate outputs per microphone, you can mix signals from the two sides of the mic and adjust the sound pickup characteristics afterward. The microphone has a very strong output signal and is literally noise-free. Its unique electronics produced by Research Electronics deliver very low distortion and it has a large dynamic range. An exclusive double microphone with a transparent and natural sound for professional musicians with high demands.

Characteristics

• Large diaphragm twin condenser microphone • Patented triangular membranes • Patented internal amplification and power circuits • Optimised for studio environments • Transparent and natural sound • Great low-noise performance • Phase and frequency linear internal amplifiers • Excels at distance miking • Broad pickup range, linear frequency response even at distance or off-axis • Bass frequencies are picked up in an accurate way even at some distance • Separate outputs allow for change of polar patterns at the mixing table • Natural reproduction of fast transients • Colouring of sound is negligible and true to the original source • Frequency range spans from infrasonic bass to ultrasonic treble • Low energy consumption, ~4.0 mA • Strong output signal, usually doesn’t need any external amplification • No pre-filtering needed, Ehrlund microphones are made for flat EQs • Each and every Ehrlund microphone is stereo matched with its own model • Handles all impedances without altering frequency or phase

Specifications

Type Twin condenser microphone Membrane type Dual triangular membrane combines the characteristics of both large and small membranes Pickup patterns Cardioid, supercardioid, bi-directional, and omnidirectional Frequency range 7 – 87000 Hz Sensitivity at 1kHz -33 dBV/Pa (23 mV/Pa) Impedance Handles all impedances Equivalent noise level < 7 dBA Signal-to-noise 87 dBA Dynamic range 115 dB Max SPL (peak) 0.5% THD 116 dB 1% THD 122 dB Power supply 48 V Phantom power Current consumption 4.0 mA (2.0 mA per channel) Connector 5-pin XLR female to 2x 3-pin XLR male Materials Aircraft-grade aluminum body, hardened nickel-plated stainless steel net Finish Glass bead blasting Dimensions Ø60 mm x 155 mm Weight 345 grams
