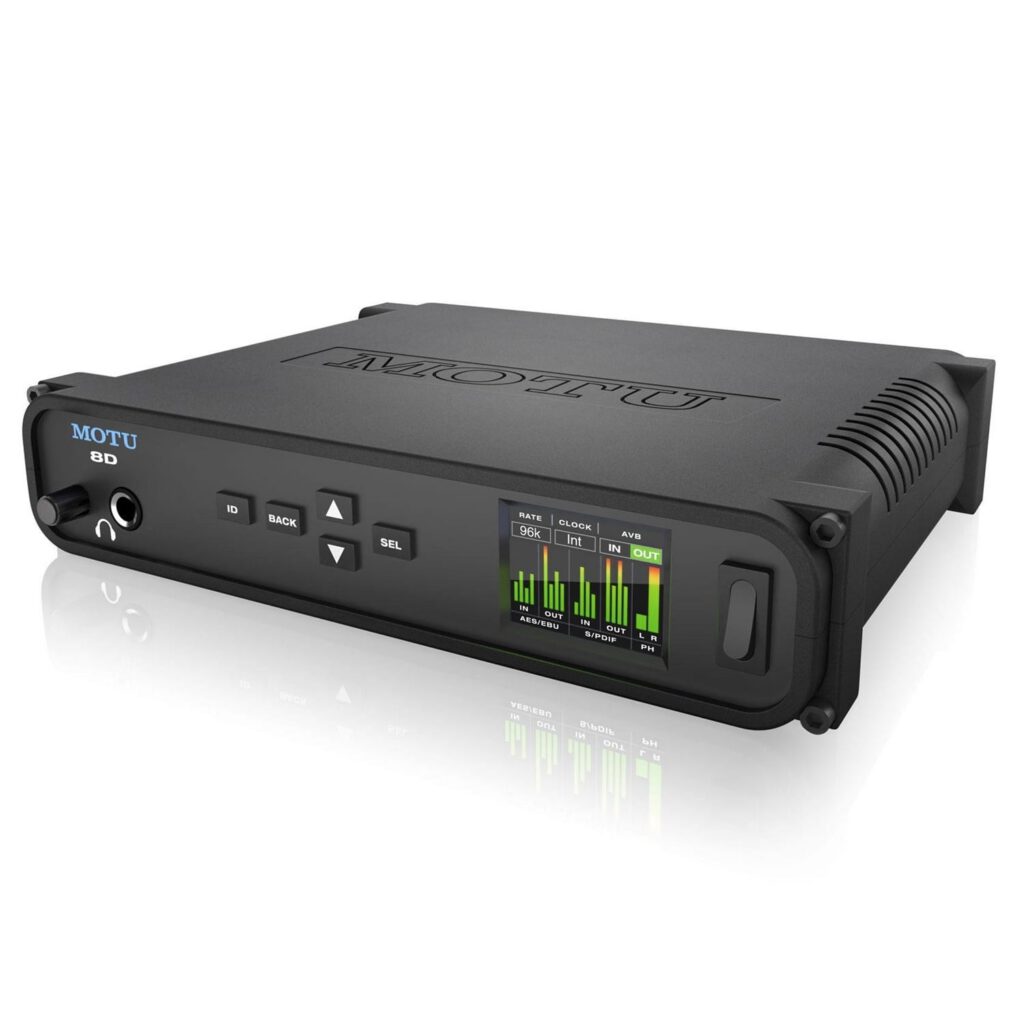

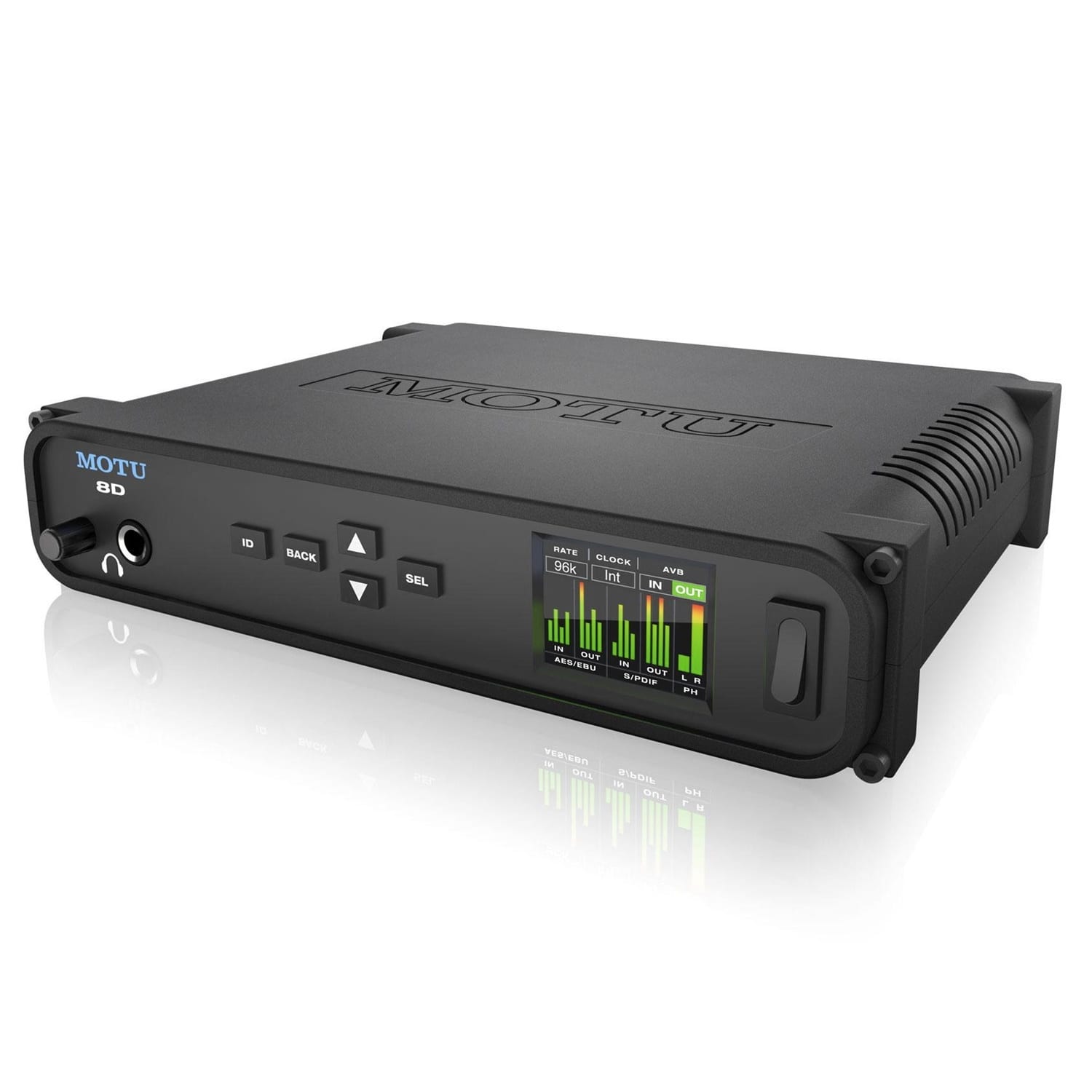

MOTU 8D

SKU: 8D

8×8 USB/AVB-TSN I/O with 4-ch AES3, 4-ch S/PDIF, DSP & networking

Quantity:

About this item

Product

Description

MOTU 8D

Features

Eight channels of digital audio I/O and conversion with SRC

Four channels of professional AES3 (AES/EBU) digital I/O, plus four channels of standard S/PDIF digital audio I/O, with sample rate conversion on all inputs.

Flexible, router, converter, and splitter

Send any input to any output, or split to multiple output channels. Convert any format to any other (AES3, S/PDIF, AVB-TSN, and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.

Stand-alone operation with wireless control

Connect a standard Wi-Fi router with a standard Ethernet cable for wireless control of device settings, routing/splitting, powerful 48-channel mixing, and DSP effects.

DSP mixing and effects processing

Flexible 48-input digital mixer with 7 stereo aux busses, 3 stereo groups, access to 32 network inputs, and DSP effects, including reverb, 4-band EQ, gate, and compression.

Ultra-low latency and proven, high-performance MOTU drivers

Universal connectivity over high-speed USB 2.0 (3.0 and iOS compatible) and AVB. Renowned drivers deliver industry-leading low latency and rock-solid performance.

Comprehensive metering

The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.

Convenient headphone monitoring

Assignable front-panel headphone output with volume control allows for monitoring of any stereo channel pair.

Word clock I/O

Standard word clock input and output for resolving to other digital audio gear or house sync.

32-bit floating-point processing

The 8D’s mixing and effects DSP engine deliver virtually unlimited headroom and the utmost in sound quality.

Modeled vintage effects processing

Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ is modeled after British analog console EQs.

Web app control from any device

Control everything from your favorite web browser on a laptop, tablet, and smartphone connected to your local Wi-Fi network.

System expansion

Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

AVB-TSN audio networking

Build a network with multiple interfaces and computers using standard AVB-TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Audio analysis tools

includes a full-screen real-time FFT display, spectrogram “waterfall” display, full-featured oscilloscope, X-Y plot, and phase analyzer.

AudioDesk

Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing, and 32-bit mixing and mastering.

Specifications

Sample rates44.1, 48, 88.2, 96, 176.4, 192 kHz
Digital I/O2x stereo AES3 (AES/EBU) on XLR male/female
2x stereo S/PDIF on RCA
Total I/O8 in / 8 out (16 total) at 1x sample rates
8 in / 8 out (16 total) at 2x sample rates
n/a at 4x sample rates
Computer I/O1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
Computer I/O channels64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz)
Headphone1 x 1/4″ TRS stereo phone (assignable)
Network I/O1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams
(8 channels per stream)
4 in / 4 out @ 44.1 or 48 kHz
4 in / 4 out @ 88.2 or 96 kHz
2 in / 2 out @ 176.4 or 192 kHz
Front panel1 x 1/4″ TRS headphone output
4x switches for menu navigation
160 x 128 RGB LCD for level meters / menu
PowerExternal 12-18V DC power supply
1.0A max • tip pos or neg
Dimensions
and weight
(width x depth x height, enclosure only)
8.6 x 7 x 1.75 inches
22 x 17.75 x 4.5 cm
2.0 lbs / 0.9 kg

Mac System Requirements

  • 1 GHz Intel-based Mac or faster
  • 2 GB RAM; 4 GB or more recommended
  • Mac OS X version 10.8 or later
  • Available USB 2.0 or 3.0 port
  • A large hard drive (at least 500 GB for recording)

Windows System Requirements

  • 1 GHz Pentium-based PC compatible or faster
  • 2 GB RAM; 4 GB or more recommended
  • Windows 7, 8 or 10
  • Available USB 2.0 or 3.0 port
  • A large hard drive (at least 500 GB for recording)

Web App Support

  • Any web client platform: Mac, Windows, Linux, iOS, Android
  • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.

Included Software

  • MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
  • MOTU Discovery App for iOS (available from Apple App Store)
  • MOTU Pro Audio Control web app (served from the hardware itself)
  • MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
  • AudioDesk 4.0 for Mac & PC (separate download)

Operating Systems

  • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
  • For web app control: Mac, Windows, Linux, iOS, Android

Compatible Mac Software

The 8D ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Apple Logic Pro
  • Apple Logic Express
  • Apple Garage Band
  • Apple SoundTrack Pro
  • Ableton Live
  • Presonus Studio One
  • Propellerhead Record & Reason
  • Steinberg Cubase
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via the compatible host)

Compatible Windows Software

The 8D ships with standard ASIO and Wave drivers for Windows 7, 8, and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Ableton Live
  • Cakewalk Sonar
  • Cockos Reaper
  • Image-Line FL Studio
  • Native Instruments Kontakt
  • Presonus Studio One
  • Propellerhead Record & Reason
  • Sony Vegas Pro
  • Sony Sound Forge
  • Sony Acid
  • Steinberg Cubase
  • Waves stand-alone apps (and plug-ins, via the compatible host)
