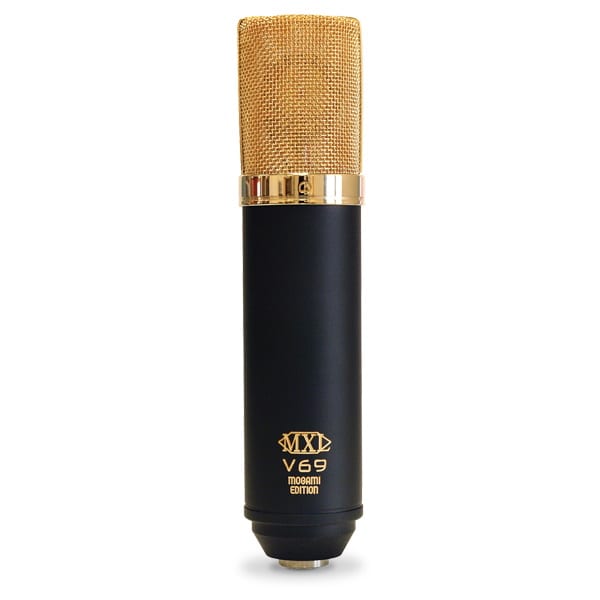

MXL V69M EDT Microphone

MOGAMI® Edition Large Diaphragm Tube Condenser Microphone

Description

MXL V69M EDT Microphone

The V69M EDT is the result of years of research to create a large diaphragm tube condenser microphone that delivers the rich smoothness tube microphones are known for, low noise, and the warm but punchy forward character that captures mix-ready vocals. The sleek black body and custom 24k gold plated screen are accompanied by a protective aluminum flight case, matching black, heavy-duty shock mount, external power supply, 15′ 7 pin cable, 20′ premium Mogami XLR cable, windscreen, and a cleaning cloth.


  • Tube mic that gives singers a rich, warm sound
  • 12AT7 dual-triode tube that delivers vintage tone
  • Transformerless design for low noise
  • Ideal microphone for up-front vocal tracks
  • Premium Mogami cable and wiring for exceptional audio fidelity

Specifications

Type

Condenser microphone

Capsule

32mm capsule with Gold-sputtered, 6-micron diaphragm

Frequency response

20 Hz – 20 kHz

Polar pattern

Cardioid

Sensitivity

22mV/Pa

Impedance

200 ohms

Equivalent noise

22 dB (A-weighted IEC 268-4)

S/N Ratio

72 dB (Ref. 1 Pa A-weighted)

Max SPL for .5% THD

140 dB

Power requirements

110/220VAC, 50-60Hz/Dedicated power supply

Size and weight

47mm x 218mm / 1.85 in. x 8.58 in.
498.95g / 1 lb

Metal finish

Black with gold accents

Included Accessories

MXL57 shock mount | MXL V69CABLE1 | 3-pin XLR cable | WS-001 | PS69 power supply | MXL flight case

Additional information

Weight 15 lbs
Dimensions 22 × 22 × 10 in
