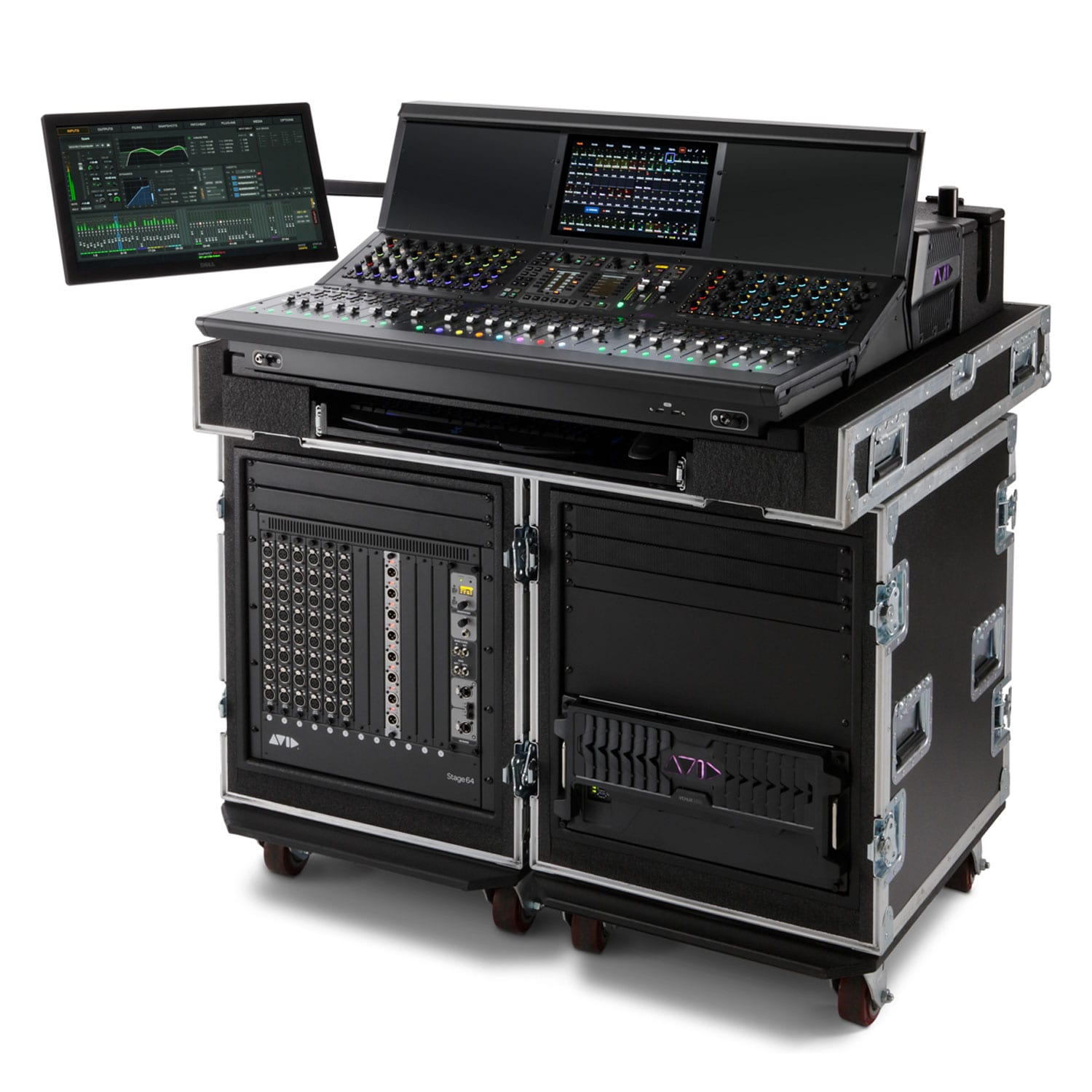

Avid VENUE | S6L

SKU: VENUE S6L

* Please specify which version: S6L-48D, S6L-32D, S6L-24D, S6L-24C, or S6L-16C *

Quantity:

About this item

Product

Description

The next stage in live sound

Mix and record live productions of any size with ease. Avid VENUE | S6L delivers the unmatched processing power and sound clarity artists and engineers rely on to present the best show possible. From direct AAX and Waves plugin support and 128 tracks of Pro Tools recording to full system modularity and 300+ processing channels, the S6L unified platform gives you the mixing efficiency, creativity, and flexibility you need to meet the demands of any gig. And now with its newly expanded line of five control surfaces, three engines, and four I/O racks to choose from—with 100% hardware, software, and show file compatibility across all—it’s easy to configure and scale the perfect system for your needs.

Product Highlights

  • Do more with a single solution
  • Meet any live sound challenge
  • Mix and record high-quality audio
  • Pump up performances with massive power

When it comes to mixing live sound, efficiency, sound clarity, and reliability are of critical importance. Avid VENUE | S6L is the industry’s only unified live sound platform that offers 100% software, hardware, and show file compatibility and interoperability across the entire line. It’s also the only system that offers direct Waves and AAX plugin control from the console to elevate mixes, and 128 tracks of built-in Pro Tools recording/playback with Virtual Soundcheck, saving hours of prep time. Plus, you get three years of 24×7 priority support to ensure the show always goes on.

Features

Take a giant leap forward in performance with VENUE 7

Share I/O across three S6L systems

VENUE now supports I/O sharing across three S6L systems, giving you more workflow flexibility while cutting costs and complexity. This makes it easy to add a broadcast console or second monitor console to your setup or enable fast switchover at festivals. Plus, all I/O configurations fully support True Gain technology, which automatically manages gain compensation to ensure proper signal levels are maintained for each engineer.

See more of what’s new in VENUE 7

Connect to Milan-networked devices

Milan (Media-integrated local area network) is an open standards-based network protocol, built on the AVB standard, that’s gaining traction across the Pro A/V market for its easy, reliable, and future-proof media delivery. With the new MLN-192 Milan Option Card and latest VENUE software, you can now connect S6L with Milan-enabled loudspeakers, amplifiers, and other devices and benefit from the speed, interoperability, and reliability Milan brings to live sound.

Mix more creatively and easily

Expand your creative possibilities with new mixing features. Add analog warmth and color to mix with HEAT available on every input channel. Shape sounds without constraint with unlimited graphic EQs on all output buses. Filter out frequencies with HPF and LPF on every output channel. Enable parallel mix control on built-in channel EQs and dynamics to perform parallel compression, expansion, and gating on every channel. And see your levels in their full glory with the Big Meters view.

Get quick ’n’ easy USB recording and playback

Don’t need a full Pro Tools multitrack session? VENUE 7 enables easy 2-track recording and playback using a USB flash drive connected to your S6L control surface. Perform basic live stereo recordings. Play back stereo tracks for pre-show entertainment or walk-up music. You can even integrate audio files with VENUE snapshots and events to trigger sound effects, cues, and music beds for theater performances.

Explore more processing and routing possibilities

Have access to four new post-fader plugin inserts and one post-fader hardware insert on every input channel—ideal for automixing workflows. Double your plugin fun with 400 plugin slots available across all S6L systems and engines, allowing for better VENUE show file compatibility—regardless of the system or configuration used. And with bus-to-bus routing, you have the freedom and flexibility to route any Aux or Group to any other Aux or Group.

Take better control of delay compensation

Got plugin-heavy mixes with complex routing requirements? Aligning busses and matrixes is now super simple with the expanded Automatic Delay Compensation (ADC) settings. Plus, the new Input Delay Alignment command makes it easy to align selected input channels to compensate for any plugins inserted on those inputs, giving you more granular control and visibility over how to delay gets managed across the system.

System Features

Build your perfect system

VENUE | S6L offers a variety of component options to configure and scale a system to meet any production, space, or budget requirement. Take control of your mix with a choice of five surfaces that offer from 16–48 faders. Power performances and integrate studio processing with a choice of three engines. Get all the ins and outs you need by mixing and matching any combination of four I/O rack options. And scale up or down to meet changing control, processing, I/O, and connectivity requirements, with 100% hardware, software, and show file compatibility across all components.

Meet the S6L-48D control surface

Discover S6L-24C, E6L-112, and Stage 32

Learn more about the S6L unified platform

Take intelligent control of your mix

When you’re mixing live, there are no do-overs. You have to anticipate and react fast. With Avid VENUE | S6L, you get instant access to every facet of your mix. View detailed information across high-res displays—in even the brightest outdoor conditions. Access and adjust your mix, including plugins and VCA groups, using the touchscreen and surface controls. And gain insight into every input, aux, and more through the Universe screen.

Get the brochure

Experience unprecedented power

From Broadway to broadcast, many live shows require hundreds of channels. With the VENUE | E6L engine, you have the power to support over 300 processing channels. The real-time processing engine handles all routing, channel, and mixing functions. The HDX-powered DSP engine manages all plugin processing, with full automatic delay compensation, so you can create bigger, better-sounding mixes—with no round trips to external servers. Simply put, it outperforms the competition—hands down.

Achieve pristine sound—live

VENUE systems have always been respected for their unprecedented sound quality. The clarity. The warmth. S6L is no different—yet it totally is. And it starts at the source. Every VENUE | S6L I/O rack features the exact same professional-grade build quality, with a high-performance preamp design, so they deliver the same sound quality and clarity no matter which you choose, enabling you to present even higher quality mixes, with incredible presence.

Expand your creativity

Mix with the same sound processors used in top studios to get the sounds you want. Or re-create an artist’s signature studio sound live. Because all S6L configurations support Avid and third-party 64-bit AAX DSP plugins, you’ll have far more creative choices at your fingertips than any other live mixing system. Plus, you’ll be able to use way more plugins in your mix, thanks to the system’s dedicated, scalable HDX-powered DSP processing.

Directly control Waves plugins

With the WSG-HD Option Card, you can run Waves SoundGrid systems with Avid VENUE | S6L and experience full unrivaled integration, enabling you to access and control Waves plugins directly from the S6L surface and VENUE software. Just as easily as and right alongside your AAX plugins. It’s super-simple to set up, supports Snapshot automation, and provides full system redundancy for the utmost reliability. You can even open older VENUE (TDM) show files that use Waves plugins right in S6L and have all of your settings ready to go.

Get more details

Software Features

Learn once, mix anywhere

VENUE software is the common platform across all VENUE systems, speeding up all aspects of live mixing and recording. It eliminates complexity, so you can focus more on what matters most—your mix. You can even access a host of parameters and views with just a single touch, increasing your efficiency. If you’ve mixed on any other VENUE system, you’ll feel right at home.

The record shows directly with Pro Tools

Experience the most powerful live recording and playback capabilities in the industry. S6L comes with and supports 128 tracks of redundant Pro Tools recording, so you can create a backup of all live recordings without any extra interfaces or expense. Create a Pro Tools session automatically from your current VENUE show file in seconds—complete with all track names and patching. Record and playback up to 128 audio tracks through a single Cat5e cable. And control your live mixing and recording rigs as one.

Save time with Virtual Soundcheck

When sound checks get compressed or scrapped, show time becomes stress time. With time-saving Virtual Soundcheck, you can get a head start on your mix using Pro Tools recordings from a previous night’s performance in place of the live mics. Then fine-tune from there. And because it doesn’t require the presence of any performer, it’s also a great way to prep a show, from programming snapshots to experimenting with different plugins.

Tackle big productions with dual operators

With the latest VENUE software, you can now designate up to two fader zones on a VENUE | S6L-48D, 32D, or 24D control surface, enabling dual-operator mixing. It’s ideal for theater sound, live broadcast events, and other complex productions. And it offers a cost-effective way to divide and conquer FOH and monitor mixing on a single S6L surface.

Get more info >

Boost your efficiency

With Snapshots, you can store and recall console and plugin settings instantly. Set multiple snapshots to handle changes for every song in a set list. Or quickly switch settings for different performers or scenes. You can also trigger time-consuming but frequently performed actions using Events. And with Layouts, you can assign any channel to any fader strip in any order and save your settings for easy recall. Save up to 48 channel strips per Layout and up to 48 Layouts per show file, enabling assignments and fader settings to be preserved when moving from a larger surface to a smaller one.

Take your mix to go

All VENUE systems use the same software, so you can load any VENUE show file into any S6L system and be ready to rock. This makes it easy to transition from one console to another, like when going from a club tour to a big festival. Just copy your show files to a USB key and load them into S6L. VENUE software adapts the settings to fit within the available hardware and software feature set of the given VENUE system configuration.

Expand your sonic palette

S6L comes with an amazing collection of studio-quality plugins to get you started. But you can expand your library even further by installing renowned plugins from Avid, Sonnox, McDSP, and other top audio designers directly into the system, as well as integrate Waves plugins through the Waves SoundGrid Option Card. From unbelievable emulations of vintage and modern hardware to a wide array of compressors, EQs, delays, and other sound processors, your creative possibilities are endless.

Find more Avid plugins

Find third-party AAX plugins

Expand your Mix Control

Mix monitors on your iPhone or iPad

Wish you could step away from S6L and fine-tune individual monitor mixes on stage. You can with the VENUE | On-Stage iOS app, which enables you to control Aux master levels, Aux sends levels, and Aux pans remotely through its VENUE-style interface. You can even let performers control their monitor mixes using their own mobile device. Best of all, it’s a free download from the Apple App Store.

Take tactile control of immersive live sound mixes

Give audiences the most engaging and immersive aural experience possible with new AAX DSP plugins of Flux:: SPAT Revolution, d&b Soundscape, and L-Acoustics L-ISA that provide intuitive and deeply integrated tactile control over all surrounding parameters from the surface.
Get more details >

Remotely control S6L functions

VENUE | S6L enables you to perform up to 128 custom actions/events instantly using its function keys/switches. With the free VENUE | Function Pad iOS app, which puts wireless remote control of your S6L function keys at your fingertips, you can organize, navigate, and trigger Snapshots and Events from anywhere in the venue using your iPhone or iPad.

Specifications

CONTROL SURFACES6L-48DS6L-32DS6L-24DS6L-24CS6L-16C
12-inch daylight-visible touchscreens1 Master Touchscreen, 5 Channel Touch Modules1 Master Touchscreen, 3 Channel Touch Modules1 Master Touchscreen, 2 Channel Touch Modules1 Master Touchscreennone (requires user-provided external touchscreen)
Faders48 + 232 + 224 + 224 + 216 + 2
Knob Modules with high-resolution OLEDs and tri-color function indicators160 assignable knobs across 5 Channel Knob Modules96 assignable knobs across 3 Channel Knob Modules64 assignable knobs across 2 Channel Knob Modules32 assignable knobs across 1 Channel Knob Module32 assignable knobs across 1 Channel Knob Module
Master Live ModuleGraphic TFTs with soft buttons; Touch and Turn assignable encoder; 2 assignable faders; monitoring, layout, and snapshot controls; transport controls and function buttons
Metering30-segment meters per channel, with pre- and post-fade metering options; Nominal indicator, Expander/Gate status, and Compressor/Limiter gain reduction meters
Analog inputs8 XLR mic/line inputs with 48V and signal present LEDs1 XLR mic/line input*
Analog outputs8 XLR outputs with mute and signal present LEDs2 XLR outputs*
Digital inputs4 pairs of XLR stereo AES/EBU (8 channels total)none*
Digital outputs4 pairs of XLR stereo AES/EBU (8 channels total)none*
Headphone outputs2 independent 1/4″ TRS stereo headphone jacks1 1/4″ TRS stereo headphone jack
Ancillary I/ODVI-D video out, 5 USB 2.0 (2 rear, 2 front, 1 internal), ECx Ethernet port for wired/wireless remote control, GPIO (8 in/8 out), 2 footswitches, Linear Time Code input, MIDI I/O
Ethernet AVB ports2 etherCON (copper), 2 selectable as etherCON (copper) or SFP (fiber); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
Power supplyDual redundant, internal hot-swappable PSUsDual redundant, internal**
Height (front, rear)3.6, 15.3 inches (91, 388 mm)3.6, 8 inches (91, 205 mm)
Width76.1 inches (1,934 mm)51.3 inches (1,304 mm)38.9 inches (989 mm)38.9 inches (989 mm)26.4 inches (671 mm)
Depth31 inches (787 mm)
Weight212 lbs (96 kg)155 lbs (70 kg)119 lbs (54 kg)84 lbs (38 kg)72 lbs (33 kg)

* Local 16 Rack can supply additional local I/O
** S6L-24C and 16C power supplies are not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies

ENGINEE6L-192E6L-144E6L-112
Sample rates96 kHz
Input channels192144112
Input processingHEAT, HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
Mix busses96 + LCR64 + LCR48 + LCR
Output processing7-band PEQ, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
Matrix24 x 2416 x 16
VCAs48
Stereo solo busses2, with independent control
Graphic EQs (31-band)32
Digital signal processingSupports up to four HDX-192 DSP Expansion Cards for plugin processing; includes one cardSupports up to two HDX-192 DSP Expansion Cards for plugin processing; includes one card
Plugin support64-bit AAX DSP; also supports Waves SoundGrid systems through the WSG-HD Option Card for full integration with S6L, or over MADI
Plugin slots400400400
Pro Tools integrationRecord/play back up to 128 audio tracks via Ethernet AVB
Expansion Option Card slots4 max2 max
Ethernet AVB portsIncludes two AVB-192 Ethernet AVB Network Cards with two ports (per card), selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
I/O sharingSupports up to three S6L systems, up to 192 inputs total (requires two AVB-192 Ethernet AVB Network Cards to share I/O)
Word Clock I/OClock I/O BNC, 75 Ohm coaxial
USB ports5 USB 2.0 ports (2 front, 2 back, 1 internal)
Power supplyN+1 redundant, internal hot-swappable PSUsDual redundant, internal*
Dimensions (H x W x D)8.6 x 16.9 x 19 inches (218 x 430 x 483 mm)
Rack spaces5U
Weight74 lbs (33 kg)

* The E6L-112 power supply is not compatible/swappable with S6L-48D, 32D, and 24D control surface power supplies, or with E6L-192 and 144 engine power supplies

I/OSTAGE 64STAGE 32STAGE 16LOCAL 16
Maximum I/O64 input channels, 32 output channels @ 96 kHz with one Stage 64 rack; up to 192 inputs/96 outputs supported (depending on the E6L engine in use) with three Stage 64 racks (64 ins/32 outs each)Total of 32 input/output channels @ 96 kHz with one Stage 32 rack 16 XLR mic inputs/preamps, 8 XLR line outputs, 4 channels of AES3 output8 XLR mic/line inputs, 8 XLR outputs, 4 pairs of XLR stereo AES/EBU inputs (8 channels total), 4 pairs of XLR stereo AES/EBU outputs (8 channels total)
I/O card slots124n/an/a
Sample rates96 kHz96 kHz96 kHz**96 kHz
Ethernet AVB ports2, selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration2 Gigabit Ethernet AVB ports, etherCON (copper), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration2, each providing etherCON (copper) or SFP (fiber optic) connections
Maximum cable lengthCopper: 100 meters (328 feet); Fiber: 500 meters (1,640.4 feet)100 meters (328 feet)Copper: 100 meters (328 feet); Fiber: 500 meters (1,640.4 feet) for Multi-Mode, 10,000 meters (32,808 feet) for Single Mode Fiber
MADIDual MADI output offers direct split of all 64 inputsSingle MADI output offers direct split of up to 32 inputsn/an/a
Headphone confidence monitor1/4″ TRS stereo headphone jack with volume control; display for channel selectionn/an/an/a
Word Clock I/OBNC, 75 Ohm coaxialn/an/an/a
Power supplyDual redundant internal PSUsSingle internal PSUDual redundant internal PSUs
Dimensions (H x W x D)17.5 x 17 x 12.2 inches (445 x 432 x 310 mm)8.7 x 18.5 x 18.9 inches (220 x 470 x 480 mm)6.9 x 19 x 8.1 inches (175 x 483 x 206 mm) with ears/handles out (rackmount configuration)5.2 x 17.4 x 11.0 inches (132 x 442 x 278 mm)
Rack spaces10U5U4U3U
Weight69 lbs (31 kg)49 lbs (22 kg)15.8 lbs (7.1 kg)16.3 lbs (7.4 kg)

The specifications listed above are provided for informational purposes only and subject to change without notice.

* Option cards are available as separate purchases and not included with core systems.
** When connected to Avid VENUE | S6L—operates at 48 kHz when connected to Avid VENUE | S3L-X.
