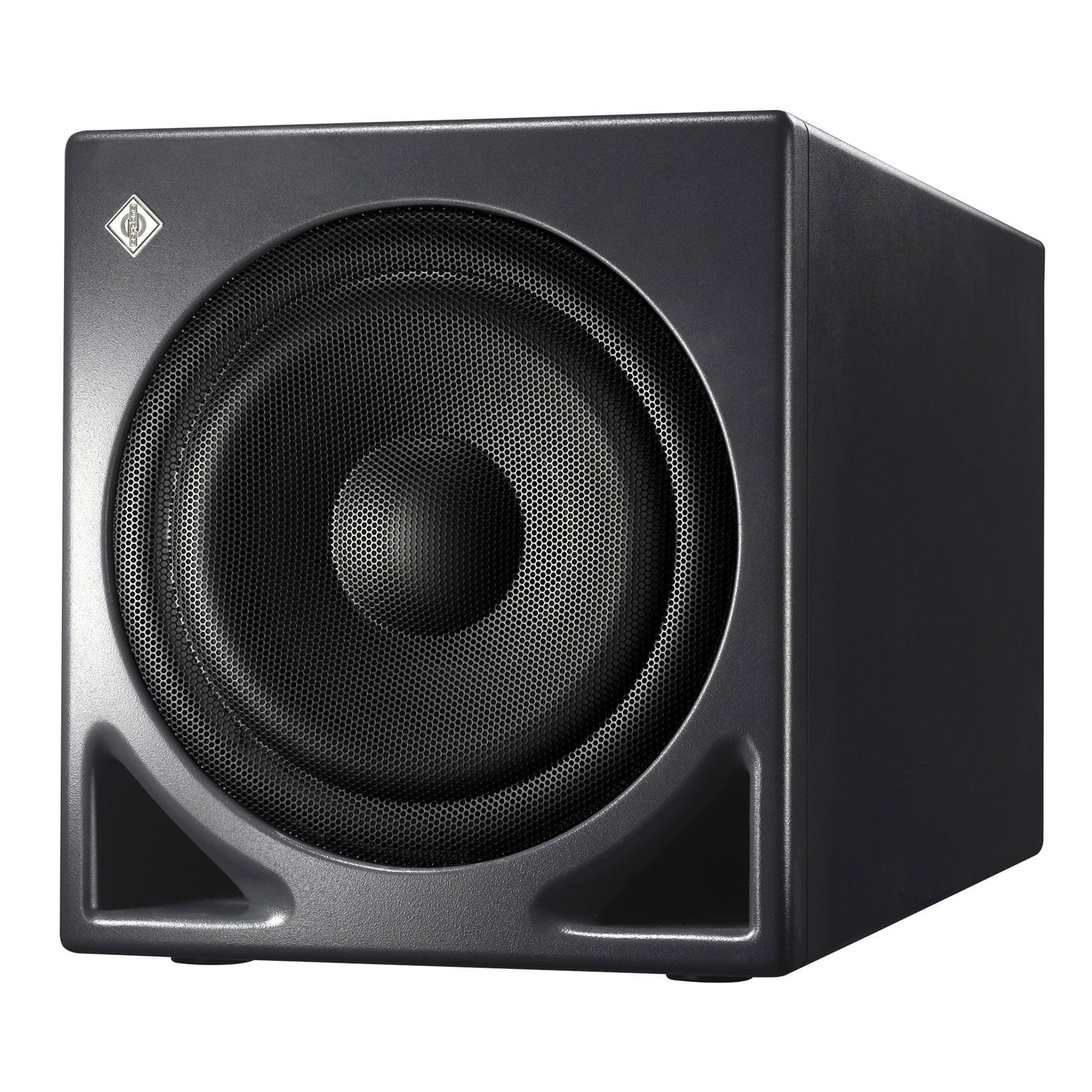

Neumann KH 805 AG

SKU: KH 805 AG

A budget-friendly stereo version of the renowned KH 810.

Out of stock

About this item



Neumann KH 805 AG

  • Stereo Bass Management
  • Very deep bass response (18 Hz)
  • High maximum SPL (110.7 dB)


The KH 805 has a unique bypassable 2.1/0.1 Bass manager which enables it to be used in many different applications. There are four LFE routing modes to ensure maximum flexibility. Fourth-order crossovers and adaptable acoustical controls allow for seamless system integration, and the bass management function can be remotely controlled.

Based on the excellent acoustical performance of the KH 810, the KH 805 is the optimal choice to be used in stereo applications, for example in combination with KH 80 DSP, KH 120, or KH 310.

The KH 805 subwoofer is designed to complement Neumann’s extensive range of monitors and can be used in music, broadcast, and post-production studios for tracking, mixing and mastering.


  • Increasing the maximum SPL of loudspeakers by up to 8 dB
  • Decreasing harmonic and intermodulation distortion of loudspeakers
  • Reproducing the LFE channel
  • Reproducing the “Sub” signal of a bass-managed multichannel source
  • Making a Plane Wave Bass Array™ system
  • Working as an extension for KH line subwoofer systems(1)
    Computer mechanically modeled cabinet design using Low resonance Integral Molding™ (LRIM™) materials

    • Wooden cabinet with a tough painted finish and high-density rubber isolating feet
    • Excellent self-damping properties lead to minimal cabinet resonances
    • No standing wave resonances inside the cabinet
    • Reduced cabinet resonances

    In-house modeled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™), magnetic shielding, flow optimized die cast basket, and robust built-in grille

    • Damping of break-up modes brings low distortion at high sound levels
    • Linear pistonic motor gives a very low harmonic distortion even at high excursions
    • Reduced air noise and improved rocking modes
    • Grille protects against mechanical damage

    Large high-capacity flow-optimized bass reflex ports

    • Fast bass transient response
    • Reduced bass compression at high output levels
    • Can be flush mounted

    2.0/ 0.1 Bass Management

    • Stereo and externally bass-managed applications
    • Bypassable 4th order 80 Hz active crossover for maximum compatibility with consumer reproduction systems
    • Allows main loudspeakers to play louder and with lower distortion

    Four routing modes

    • Right channel bass management
    • LFE to subwoofer only up to 120 Hz
    • Wide for multichannel systems where the bass management is in the source
    • Daisy chain for subwoofer arrays

    XLR electronically balanced analog inputs and outputs

    • Standard interfacing to professional equipment
    • Daisy chain output for subwoofer arrays

    Wide range of input gain and output level controls

    • Easier interfacing with signal sources

    8-position phase control, continuous low cut control, and parametric equalizer

    • More control in diverse acoustical environments
    • A parametric equalizer is bypassable if not needed

    Universal switched-mode power supply (100 … 240 V)

    • One version works in any country and is robust to poor quality mains supply

    Ground lift

    • Reduced noise in electrically noisy environments and over-comes ground loops

    Low heat dissipation amplifiers with large headroom and overheat limiting

    • Improved transient response
    • Assured reliability and safety

    Separate fast-acting thermo limiter to protect the voice coil and power amplifier

    • Soft clip and excursion limiters
    • Increases system reliability
    • Allows extraction of the maximum performance from the system

    Installation flexibility

    • Remoteable electronics (REK 3) for ease of installation, less cabling, and convenience of use
