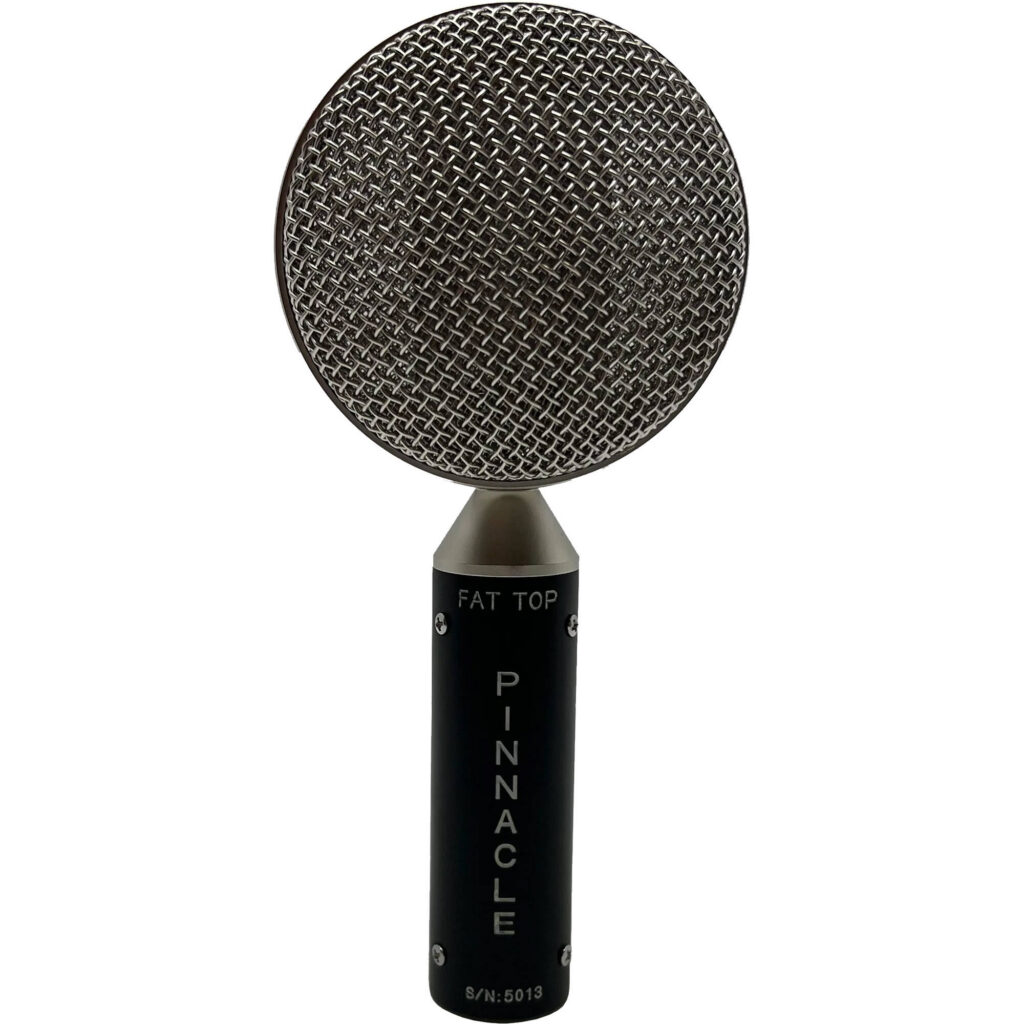

Pinnacle Microphones Fat Top

* Please specify black or brown and single mic or stereo pair *


The Pinnacle Microphones Fat Top is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass, and percussion instruments. Can be used in pairs in a Blumlein setup to pick up the entire room.


Type: Ribbon (velocity) Microphone

Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)

Polar Pattern: Symmetrical Figure 8

Sensitivity: -49.2 dB (3.5 (mV/Pa)

Frequency Response: 30 to 15 KHz (+/- 3dB)

Impedance: <=200 Ohms

Recommended Load Impedance: 1000 Ohms

Max.SPL (1% THD @1000 Hz): 135 dB

Equivalent Noise Level: to IEC 268-4 (A-weighted) 17dB

S/N ratio: re 1Pa: 70 dB

Connector: 3-Pin Male XLR

Size: Diameter: 3” (O.D. grill), overall length 6 1/2”, 7/8” (O.D. body)

Includes: Fat Top Ribbon Microphone, Microphone Clip, Carrying Pouch, Molded Flight Case
