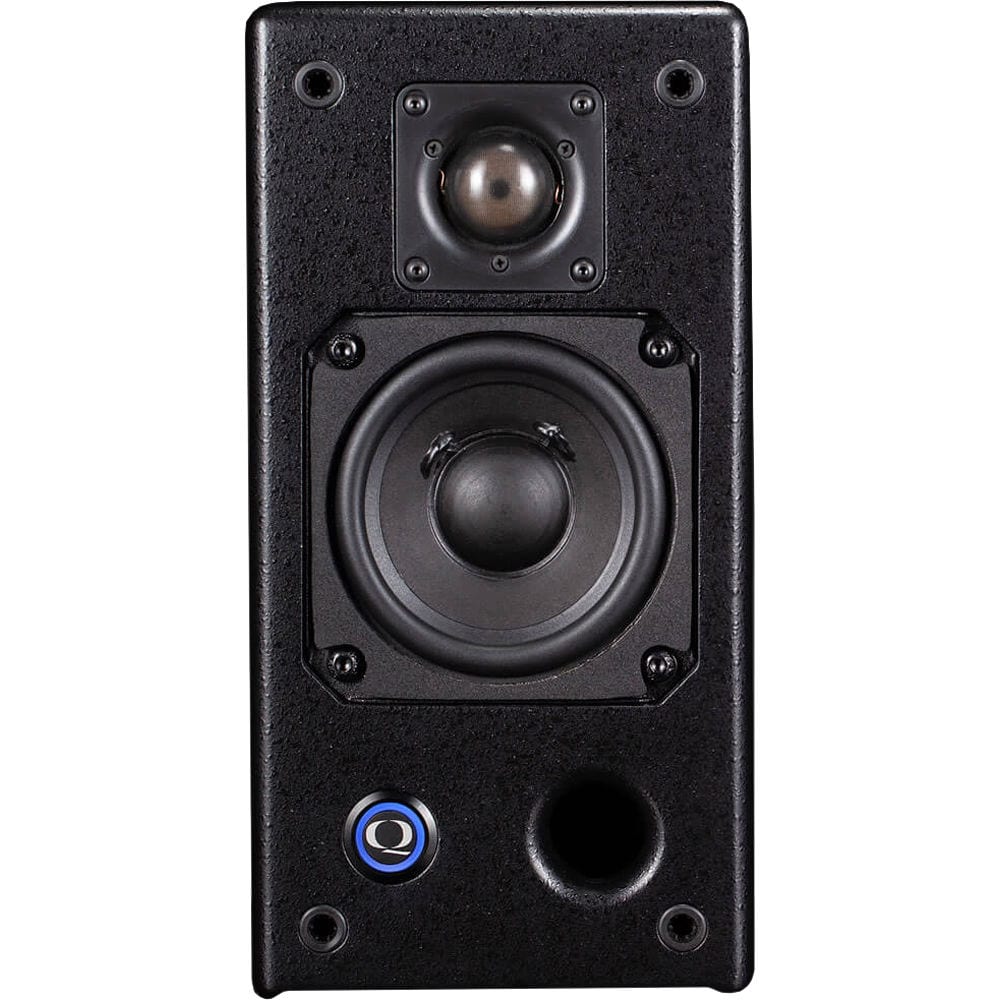

Quested V2104

2-Way Active Reference Monitor

Description

The V2104 is the latest model in Quested’s V-Series range of active, powered, monitors. The compact, ported, direct radiator design utilizes a 4”/100mm paper cone bass driver and a 28mm /1 1/8th” soft-dome high-frequency unit. Power is derived from a 2-channel class D module, chosen primarily for its sonic performance and also for its compact dimensions keeping the cabinet size to an absolute minimum. The diminutive size of the V2104 makes it the perfect choice for a portable monitor with the special edition MiniRedz version including a shoulder carry case. Low-frequency performance can be seamlessly extended by using either our SB10 or QSB112 sub-woofers depending on speaker configuration, stereo, 5.1, etc. The self-powered model will be joined shortly by a remote-powered version with rack-mountable amplifiers, perfect for use in locations such as remote broadcast trucks. The performance will be maintained with up to 50 meter speaker cables. Ceiling and wall mounts are currently available, a floor stand will follow as will a smaller dedicated sub-woofer, the SB8.

TECHNICAL SPECIFICATION
Dimensions: 132(w) x 262(h) x 160(d) mm / 5.1″(w) x 10.3″(h) x 6.2″(d)
Weight: 3.5kg / 7.7lb
Drivers: Low Frequency 1 x 100mm(4″) LF
High Frequency: soft dome – 1 x 28mm (1. 1/8″)
Maximum SPL: 100 dB continuous pink noise @ 1m Leq 1 minute. 106 dB per pair continuous pink noise @ 1m Leq 1 minute
Frequency Response: 100 Hz – 19 kHz ± 2dB / 88 Hz -6 dB

INPUT
Connector: XLR and ¼ inch Jack combo socket
Impedance: 10k ohm Electronically balanced
Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold
Sensitivity: TBC

FILTERS
Protective lower filter : -3dB @ 45Hz, 24dB/oct
Protective upper filter : -3dB @30kHz, 24dB/oct
Crossover Point: 1k67H

POWER AMPLIFIERS
HF output power: > 70W rms continuous (Note 1)
LF output power: > 70W rms continuous (Note 1)
THD: Typ 0.01% @ 1kHz

Note 1: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (>100mm clearance) around the amplifier rear panel and ambient temperatures is <30 Degrees C

INDICATION
Power on: Front-mounted switch with ring mounted LED.
Blue LED indicates power, Red LED 2 dB before the amplifier clip.

POWER REQUIREMENTS
Voltage: Set by internal plugs: nominal 115V or 230V @ 45-63Hz AC.
230V setting: Min 180V (restricted output power): Max 264V
115V setting: Min 90V (restricted output power): Max 132V

CONSUMPTION
Quiescent: TBC.
Typical use: TBC
Max: 10W at 230 Vac

This product is built to conform to the requirements for CE marking.
