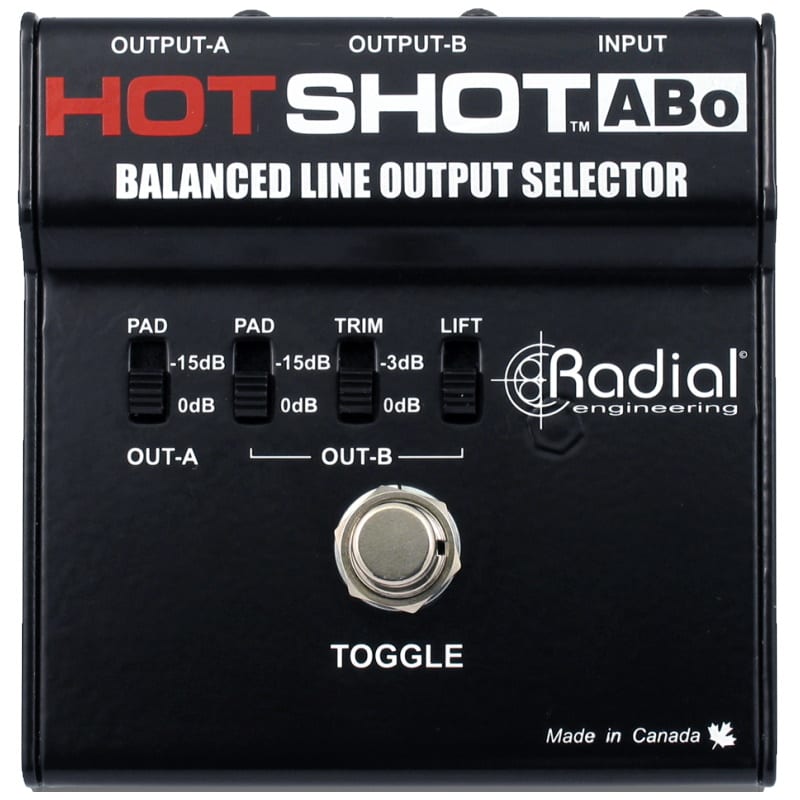

Radial HotShot ABo

Balanced Output Footswitch Selector

Description

The Radial HotShot ABo is a latching footswitch that will take a balanced input on stage and switch it between two different destinations, without requiring any power to operate.

  • Redirect a balanced signal to two different destinations
  • Toggle outputs or mute with a latching footswitch
  • Selectable output pads to match signal levels
  • Completely passive operation, no power required

Reroute signals on stage

The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again.

Specifications
Audio circuit type: Passive, true-bypass
Frequency response: 20Hz ~ 20kHz
Dynamic range: Unlimited
Features
Input pad, Ground lift
Input Connectors: One XLR input
Output Connectors: Two XLR outputs
General
Construction: 14-Gauge Steel
Size (L x W x D): 3.9″ x 3.6″ x 2″ (99 x 92 x 51mm)
Weight: 1.25 lb (0.56 kg)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
