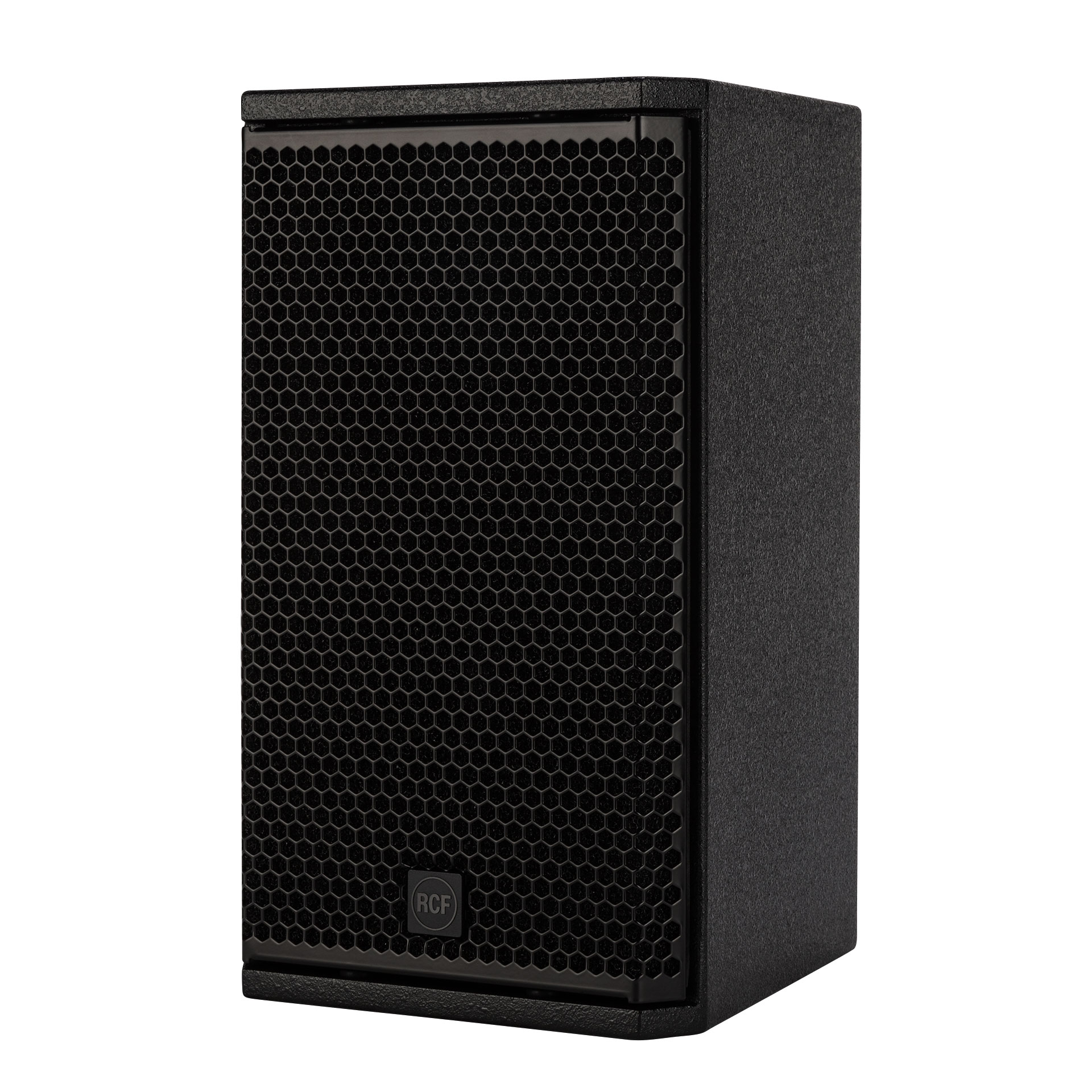

RCF COMPACT M 06

Two-way Passive Speaker

Description

The RCF COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond the expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

MULTIPURPOSE SOUND

The elegant design aesthetic, multiple formats, and RCF signature sound quality that allows delivering a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces, and venues.

ENGAGE YOUR CUSTOMERS

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience to enjoy an immersive musical experience.

IMPROVE THE AUDIO ATMOSPHERE

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of the RCF Compact M Series – optimal performance in both background music and high-powered foreground audio.

SMOOTH INSTALLATION

Compact M speakers stick to the Italian design’s functionality and style, always in harmony with any type of interior. Installation time is minimal with a complete range of solid wood cabinets, multiple rigging points, and accessories. The EUROBLOCK connection panel can be replaced with a female Neutrik SpeakON connection panel in seconds.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz
MAX SPL @ 1M:
116 dB
HORIZONTAL COVERAGE ANGLE:
120°
VERTICAL COVERAGE ANGLE:
80°
DIRECTIVITY INDEX Q:
7
SYSTEM SENSITIVITY:
90 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm
POWER HANDLING:
100 W RMS
PEAK POWER HANDLING:
400 W PEAK
RECOMMENDED AMPLIFIER:
200 W
PROTECTIONS:
Dynamic active MOSFET
CROSSOVER FREQUENCIES:
2200 Hz
Transducers
DOME TWEETER:
1.3” neo, 1.0” v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
15 W AES, 30 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
92 dB, 1W @ 1m
WOOFER:
6.0”, 1.5” v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
100 W AES, 200 W PROGRAM POWER
SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock
OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black – RAL 9005
HARDWARE:
4 x M6, 2 x M8
GRILLE:
Steel with clothing
CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
211 mm / 8.31 inches
DEPTH:
232 mm / 9.13 inches
HEIGHT:
365 mm / 14.37 inches
WEIGHT:
5.5 kg / 12.13 lbs
Shipping information
PACKAGE WEIGHT:
7 kg / 15.43 lbs
PACKAGE DEPTH:
235 mm / 9.25 inches
PACKAGE WIDTH:
256 mm / 10.08 inches
PACKAGE HEIGHT:
386 mm / 15.2 inches
