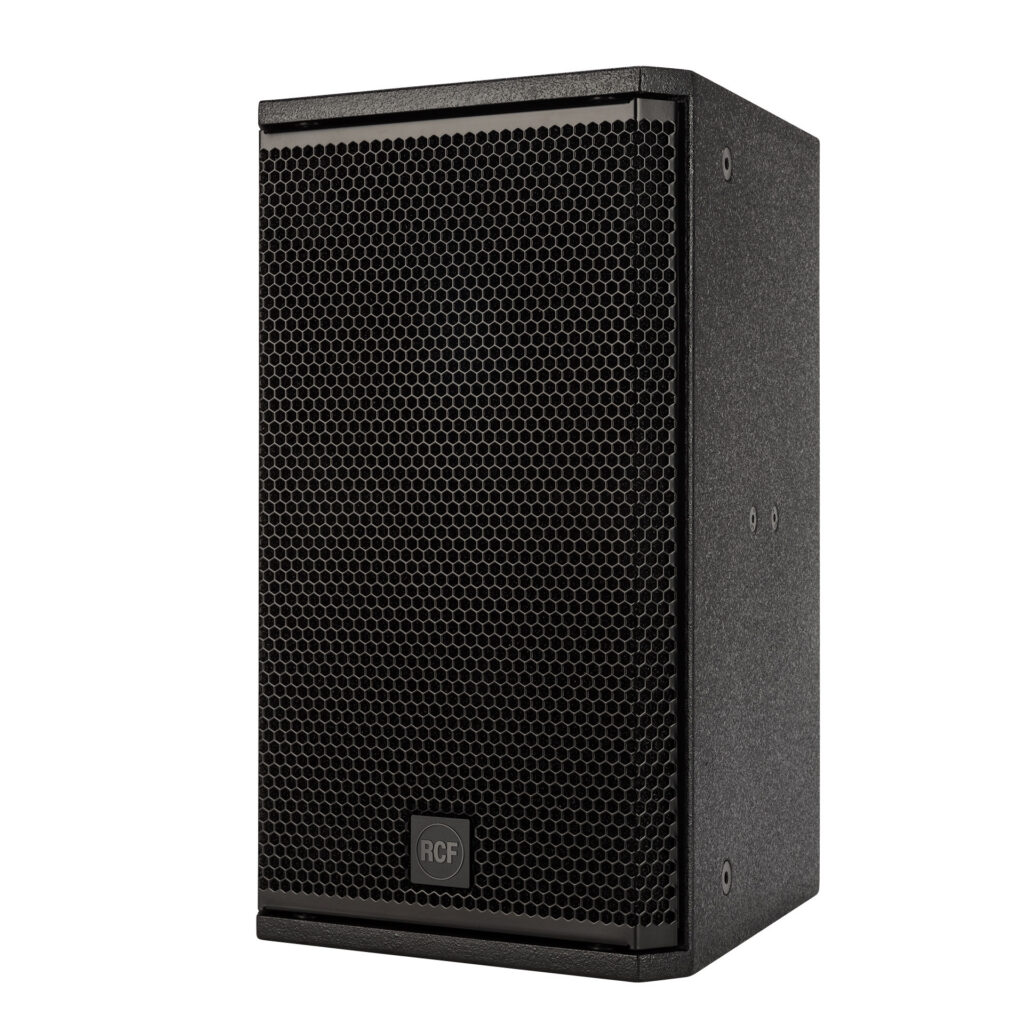

RCF COMPACT M 10

Two-way passive speaker

Description

The RCF COMPACT M 10 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 10 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 10 can provide goes far beyond the expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 10 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 10 on wall or ceiling installations.

MULTIPURPOSE SOUND

The elegant design aesthetic, multiple formats, and RCF signature sound quality that allows delivering a supreme audio experience in any application, from the restaurant and retail shops to clubs, corporate spaces, and venues.

ENGAGE YOUR CUSTOMERS

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience to enjoy an immersive musical experience.

IMPROVE THE AUDIO ATMOSPHERE

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of  theRCF Compact M Series – optimal performance in both background music and high-powered foreground audio.

SMOOTH INSTALLATION

Compact M speakers stick to the Italian design’s functionality and style, always in harmony with any type of interior. Installation time is minimal with a complete range of solid wood cabinets, multiple rigging points, and accessories. The EUROBLOCK connection panel can be replaced with a female Neutrik SpeakON connection panel in seconds.

SPECIFICATIONS

Acoustical specifications

 FREQUENCY RESPONSE (-10DB):

60 Hz ÷ 20000 Hz

MAX SPL @ 1M:

128 dB

 HORIZONTAL COVERAGE ANGLE:

90°

VERTICAL COVERAGE ANGLE:

70°

DIRECTIVITY INDEX Q:

9

SYSTEM SENSITIVITY:

98 dB
Power section

NOMINAL IMPEDANCE (OHM):

8 ohm

POWER HANDLING:

300 W RMS

PEAK POWER HANDLING:

1200 W PEAK

RECOMMENDED AMPLIFIER:

600 W

PROTECTIONS:

Dynamic active mosfet

CROSSOVER FREQUENCIES:

1800 Hz
Transducers

COMPRESSION DRIVER:

1 x 1.0”, 1.4” v.c

NOMINAL IMPEDANCE (OHM):

8 ohm

INPUT POWER RATING:

25 W AES, 50 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):

107 dB, 1W @ 1m

WOOFER:

10”, 2.5” v.c

NOMINAL IMPEDANCE (OHM):

8 ohm

INPUT POWER RATING:

300 W AES, 600 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):

98 dB, 1W @ 1m
Input/Output section

INPUT CONNECTORS:

Euroblock

OUTPUT CONNECTORS:

Euroblock
Standard compliance

CE MARKING:

Yes
Physical specifications

COLOR:

Black – RAL 9005

HARDWARE:

8 x M8, 8 x M10

GRILLE:

Steel with clothing

CABINET/CASE MATERIAL:

Plywood
Size

WIDTH:

295 mm / 11.61 inches

DEPTH:

325 mm / 12.8 inches

HEIGHT:

510 mm / 20.08 inches

WEIGHT:

17 kg / 37.48 lbs
Shipping information
PACKAGE WEIGHT:
20 kg / 44.09 lbs

PACKAGE DEPTH:

333 mm / 13.11 inches

PACKAGE WIDTH:

363 mm / 14.29 inches

PACKAGE HEIGHT:

545 mm / 21.46 inches
