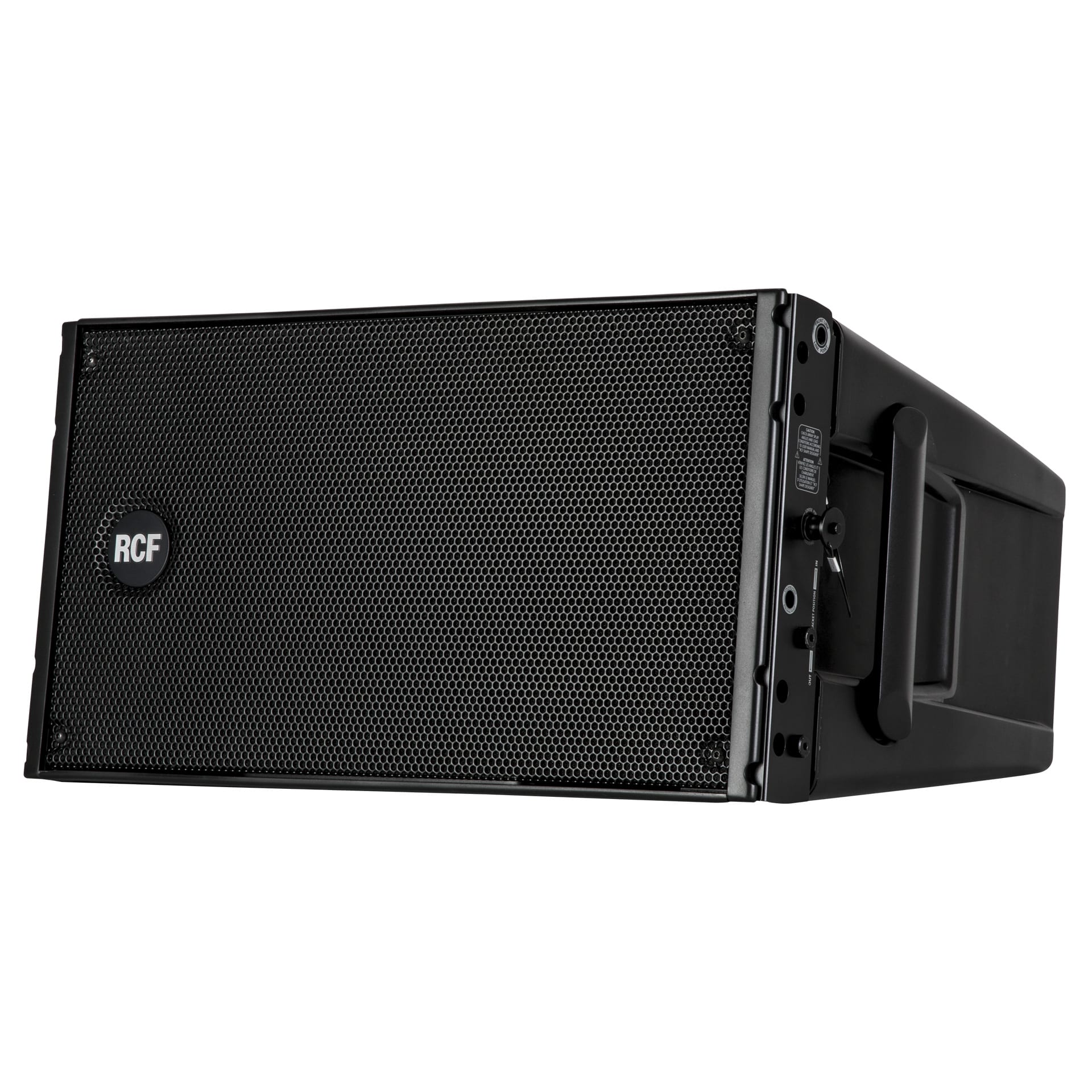

RCF HDL 10-A

ACTIVE LINE ARRAY MODULE

Description

The very compact size, no compromise transducers, and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line-array performance is needed and a fast and easy set up is a must. The system is powered from an 1400 Watt Peak Power 2 way digital amplifier, the sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

  • 1400 Watt Peak power – 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8″ Woofers
  • 1 x 2″ Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

TOUR SOUND IN A COMPACT SIZE

The HDL 10-A is a true active and high power ready to use touring system equipped with a high-efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

RCF PRECISION TRANSDUCERS

HIGH FREQUENCIES – The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

LOW FREQUENCIES – High power woofers. Very high efficient and controlled bass reproduction.



  • 2 X 8″ Woofers, 2.0″ Inside-Outside voice coil
  • Water-resistant fiber doped cone
  • Polycotton M-roll surround
  • High power magnetic structure

POWERFUL CLASS D AMPLIFIER

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE IDEAL FLYABLE BASS COMPLEMENT

The bass-reflex design guarantees a deep, linear power response while the 3.5” voice coil vented woofer design offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 10-A array module. The HDL15-AS is a compact, flyable high-power subwoofer, designed to integrate seamlessly into an HDL 10-A flown array.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 2.0”, 2.5” v.c
WOOFER:
2 x 8”, 2.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
Rigging flyware
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
294 mm / 11.57 inches
WIDTH:
569 mm / 22.4 inches
DEPTH:
434 mm / 17.09 inches
WEIGHT:
20.4 kg / 44.97 lbs
Shipping information
PACKAGE HEIGHT:
375 mm / 14.76 inches
PACKAGE WIDTH:
650 mm / 25.59 inches
PACKAGE DEPTH:
500 mm / 19.69 inches
PACKAGE WEIGHT:
23 kg / 50.71 lbs
