Description

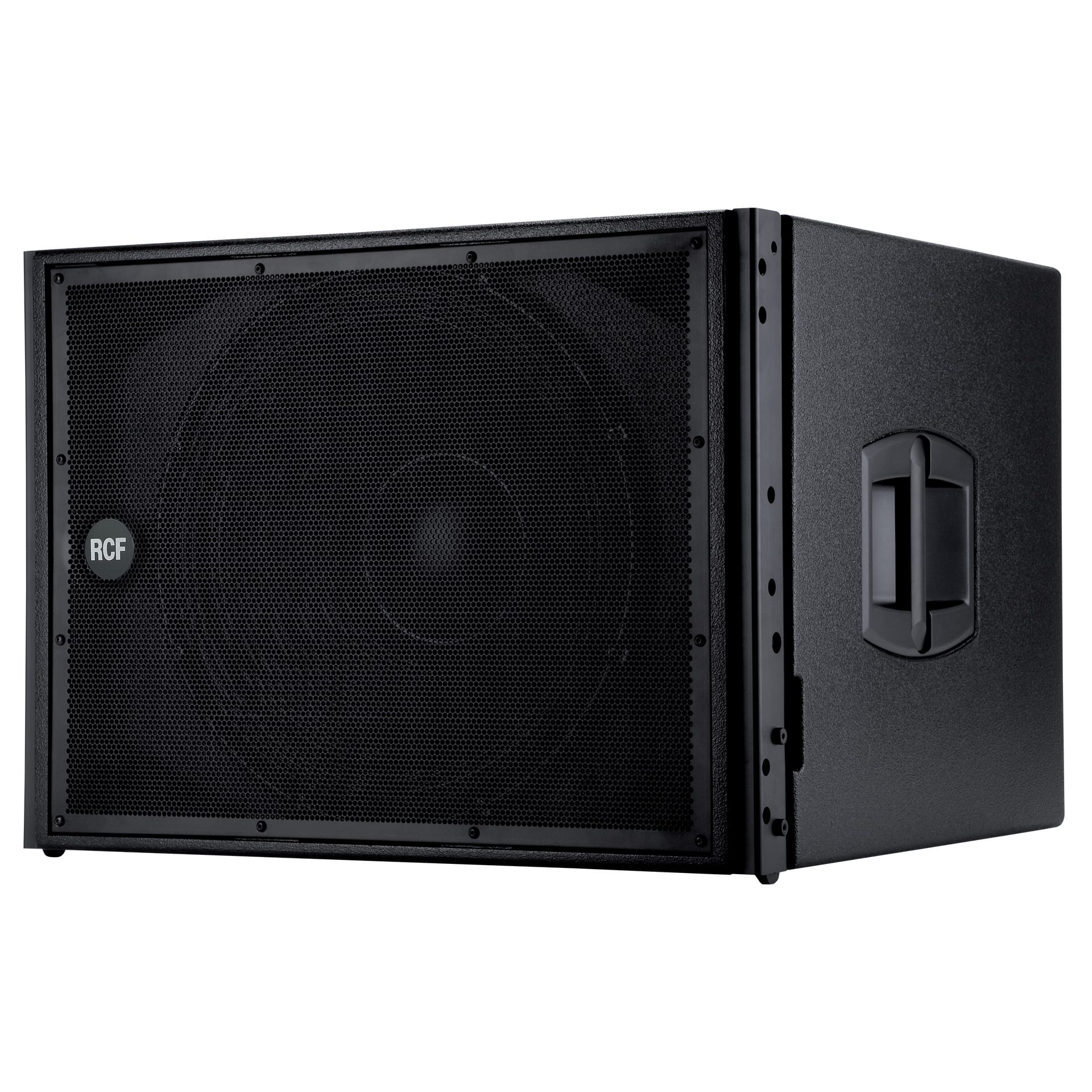

The RCF HDL 18-AS is a compact, flyable high power subwoofer, designed to integrate seamlessly into an HDL 20-A flown array. The bass-reflex design guarantees a deep, linear power response while the 4” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.
- 2000 Watt Peak power – 1000 Watt RMS
- 135 dB max SPL
- 30 Hz – 140 Hz frequency response
- 1 x 18″ Woofer
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics, compatible with HDL 20-A
- Designed to complement the HDL 20-A speaker system
- Baltic birch tour grade cabinet
SPECIFICATIONS
FREQUENCY RESPONSE:
30 Hz ÷ 140 Hz
MAX SPL @ 1M:
135 dB
Transducers
WOOFER:
18”, 4.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
30Hz, 45Hz
LOW-PASS FREQUENCIES:
90Hz, 140Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, EQ shape, Xover
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
2000 W Peak, 1000 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Rigging flyware, M20 insert
HANDLES:
2 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
512 mm / 20.16 inches
WIDTH:
700 mm / 27.56 inches
DEPTH:
620 mm / 24.41 inches
WEIGHT:
53 kg / 116.84 lbs
Shipping information
PACKAGE HEIGHT:
639 mm / 25.16 inches
PACKAGE WIDTH:
814 mm / 32.05 inches
PACKAGE DEPTH:
734 mm / 28.9 inches
PACKAGE WEIGHT:
60.2 kg / 132.72 lbs
