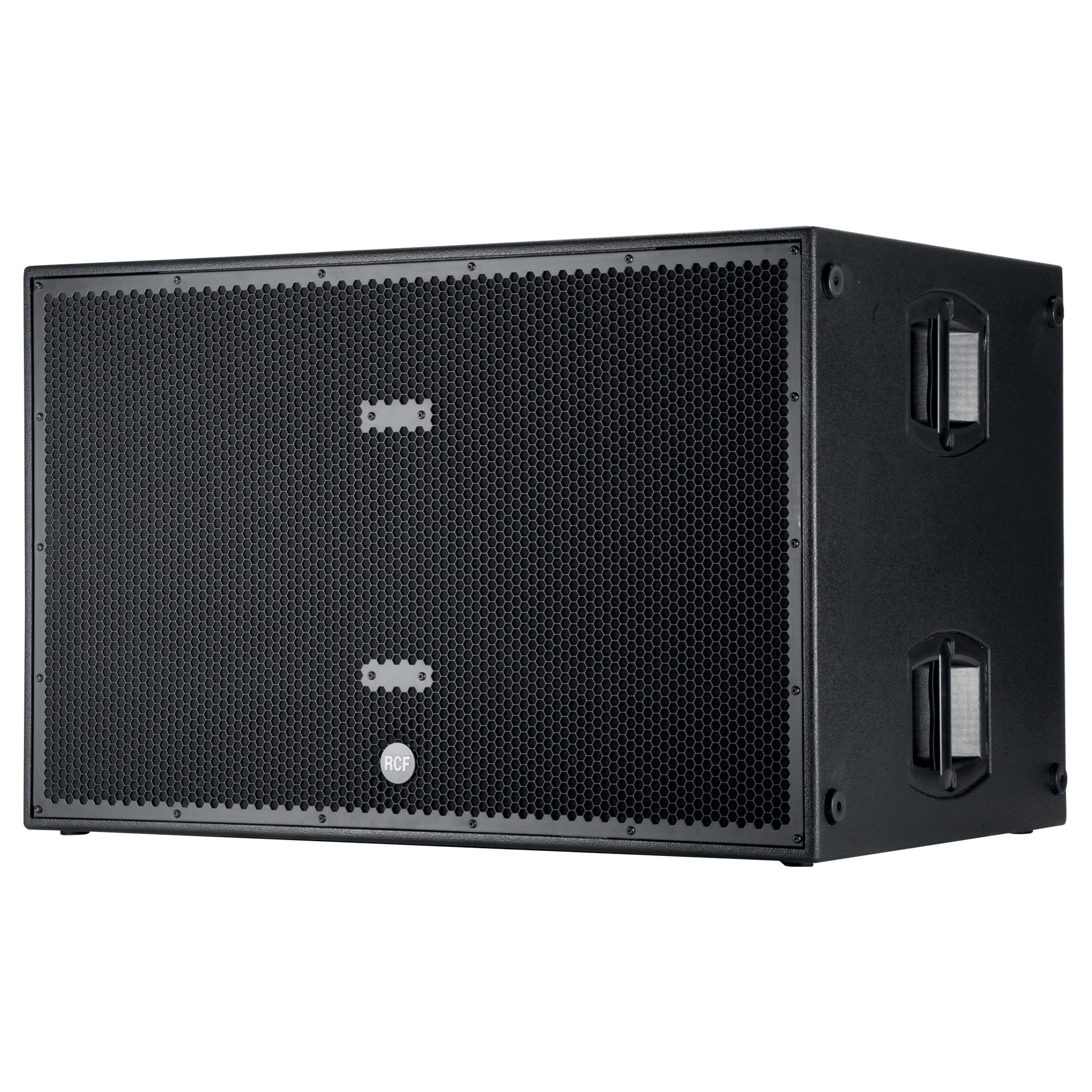

RCF SUB 8006-AS

ACTIVE HIGH POWER SUBWOOFER

Description

The SUB 8006-AS is the largest and most powerful active subwoofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB-8006-AS can perform in the most demanding situations.

  • 5000 Watt Peak power – 2500 Watt RMS
  • 137 dB max SPL
  • 30 Hz – 120 Hz frequency response
  • 2 x 18″ Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configurations with HDL 20-A
  • Baltic birch tour grade cabinet

POWERFUL CLASS D AMPLIFIERS

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE TRANSDUCERS INNOVATORS

RCF specializes in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 60 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and groundbreaking direct drive voice coil assemblies.

LEGENDARY SUBWOOFERS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

CABINET & MECHANICS

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

SPECIFICATIONS

Acoustical specifications
FREQUENCY RESPONSE:
30 Hz ÷ 120 Hz
MAX SPL @ 1M:
141 dB
Transducers
WOOFER:
2 x 18”, 4.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
100 Hz
LOW-PASS FREQUENCIES:
80 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Fast Limiter
CONTROLS:
Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioid
Power section
TOTAL POWER:
5000 W Peak, 2500 W RMS
LOW FREQUENCIES:
5000 W Peak, 2500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Mounting points
HANDLES:
4 side
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
709 mm / 27.91 inches
WIDTH:
1109 mm / 43.66 inches
DEPTH:
700 mm / 27.56 inches
WEIGHT:
96.4 kg / 212.53 lbs
Shipping information
PACKAGE HEIGHT:
763 mm / 30.04 inches
PACKAGE WIDTH:
1156 mm / 45.51 inches
PACKAGE DEPTH:
753 mm / 29.65 inches
PACKAGE WEIGHT:
109 kg / 240.3 lbs
