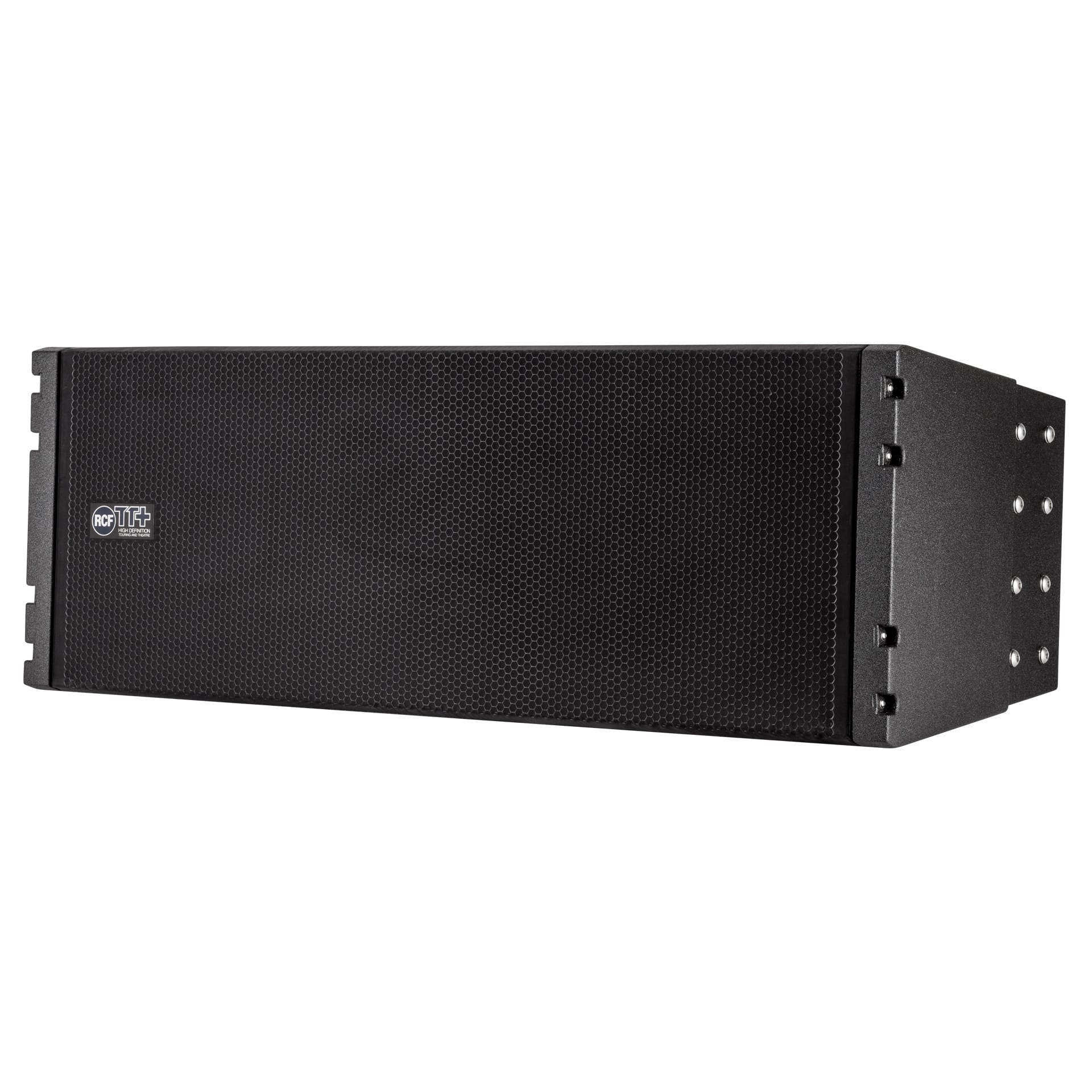

RCF TTL 55-A WP STADIUM

ACTIVE THREE-WAY LINE ARRAY MODULE

Description

The TTL55-A WP Stadia is a high power, three-way, active line array module engineered to deliver an incredible output for use in outdoor large spaces. The three new designs for the six neodymium transducers powering the system result from a long-lasting research in pioneering new solutions using the best materials available on the market. The mechanical suspension and orientation system are made of high-quality steel. The suspension system is directly connected to the aluminum sides of the cabinet and is particularly precise and easy to use.

  • Maximum output per size on the market
  • 3500 W, four-way digital amplification
  • 2 x 12” high power neodymium woofers, 4” v. c.
  • 10” neodymium midrange, 3.5” v. c.
  • 3 x 1.5” neodymium compression drivers, 2.5” v. c.
  • High-quality analog input board
  • 96 kHz, 32-bit DSP processing
  • RDNet ON BOARD
  • Tour grade Baltic birch cabinet and mechanics

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

SPECIFICATIONS

Acoustical specifications
MAX SPL @ 1M:
143 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
Transducers
COMPRESSION DRIVER:
3 x 1.5” neo, 2.5” v.c
MIDRANGE:
10” neo, 3.5” v.c
WOOFER:
2 x 12” neo
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
320 Hz – 1300 Hz
PROTECTIONS:
Thermal, Excurs., RMS
LIMITER:
Soft Limiter
CONTROLS:
DSP Controlled
RDNET:
Yes
Power section
TOTAL POWER:
7000 W Peak, 3500 W RMS
HIGH FREQUENCIES:
1000 W Peak, 500 W RMS
MID FREQUENCIES:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
4000 W Peak, 2000 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array Fly-Ware
GRILLE:
Steel with waterproof clothing
COLOR:
Black
Size
HEIGHT:
380 mm / 14.96 inches
WIDTH:
1020 mm / 40.16 inches
DEPTH:
550 mm / 21.65 inches
WEIGHT:
60 kg / 132.28 lbs
Shipping informations
PACKAGE HEIGHT:
909 mm / 35.79 inches
PACKAGE WIDTH:
1144 mm / 45.04 inches
PACKAGE DEPTH:
499 mm / 19.65 inches
PACKAGE WEIGHT:
71.5 kg / 157.63 lbs
