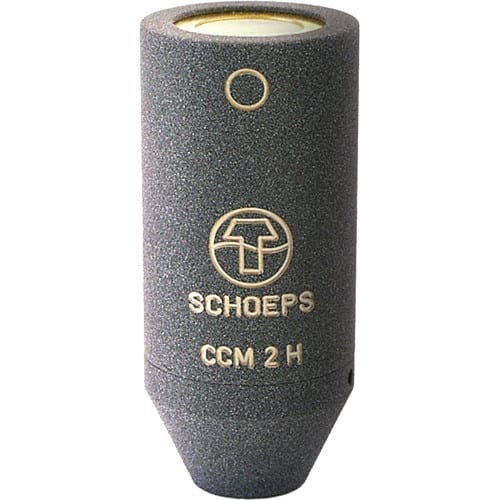

Schoeps CCM 2H

Omnidirectional Compact Microphone Capsule

Description

If this microphone is used indoors at medium recording distances (i.e. where direct sound energy is similar in amount to reflected sound energy), its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.

The sound inlet of the CCM 2H is narrower than that of our other pressure transducers, causing a slight, purely acoustic response elevation above 6 kHz. This reduces the high-frequency loss for diffuse sound, thus helping to preserve natural sound quality.

PROPERTIES

  • omnidirectional pattern
  • mild high-frequency rise to compensate for losses at a medium recording distance
  • often chosen for spaced stereophony and Decca Tree arrangements

PRACTICE

The CCM 2H, like the CCM 2S, is ideal for natural-sounding pickup of instruments and orchestras in spaces with well-balanced reverberance. The choice between the two capsule types is essentially a matter of personal preference. At a given miking distance the CCM 2H might be described as more ”balanced and round” sounding while the CCM 2S would give a slight additional brilliance. However, one might also choose the CCM 2H for slightly closer placement or the CCM 2S for slightly more distant placement – and then these two capsule types would have very similar sound quality, with the main difference than being in the balance of direct to the reverberant sound which is picked up.

For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

TECHNICAL SPECIFICATIONS

Frequency rangesee the corresponding capsule
Sensitivitysee the corresponding capsule
Maximum sound pressure level (THD < 0.5 %)135 dB-SPL (P48)
127 dB-SPL (P12)
Maximum output voltage2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter20 Hz, 12 dB/Okt.
Output impedance90 Ω
Maximum cable length> 400m
SCHOEPS RFI ShieldNo
Powering standard / Valid rangeP48 / > 40 V
P12 / > 10 V
Current consumption4 mA (P48)
3,6 mA (P12)
Common mode rejection ratio (at 1 kHz)> 55 dB
Minimum recommended load impedance2 kΩ
OutputLemo (CCM-L) or XLR-3M (CCM-U),
analog, 1 channel
Length46 mm (CCM-L)
Diameter20 mm
Weight33 g (CCM-L)
Surface finishmatte gray (g)
or custom color
