Description

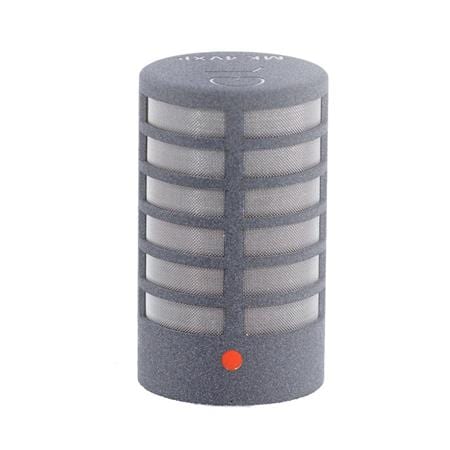

This cardioid capsule is designed for the very closest speech pickup, i.e. directly in front of the speaker’s mouth.

Its low-frequency roll-off is compensated by the proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker’s voice while showing a roll-off at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.

PROPERTIES

• Cardioid, side-addressed for close speech pickup (<20 cm)
• Low-frequency response roll-off (-6 dB at 100 Hz)
• Polar diagram identical as MK 4V
• Preferred applications: close speech pickup, also available in the HSC 4VP headset

TECHNICAL SPECIFICATIONS

Pickup pattern	Niere
Frequency range	40 Hz – 20 kHz with CMC 6 / CMR, 40 Hz – 39 kHz with CMC 6xt
Sensitivity	-38,5 dB (V/Pa), 12 mV/Pa with CMC 6
Maximum sound pressure level (THD < 0.5 %)	133 dB-SPL with CMC 6
Length	34 mm
Diameter	20 mm
Weight	18 g
Surface finish	matte gray (g) or custom color
