Sennheiser XSW-D PORTABLE ENG SET

SKU: XSW-D PORTABLE ENG SET

The utmost flexibility amongst our XS Wireless Digital Series for capturing camera audio. Plug it in, power it up, and immediately be up and running.

Description

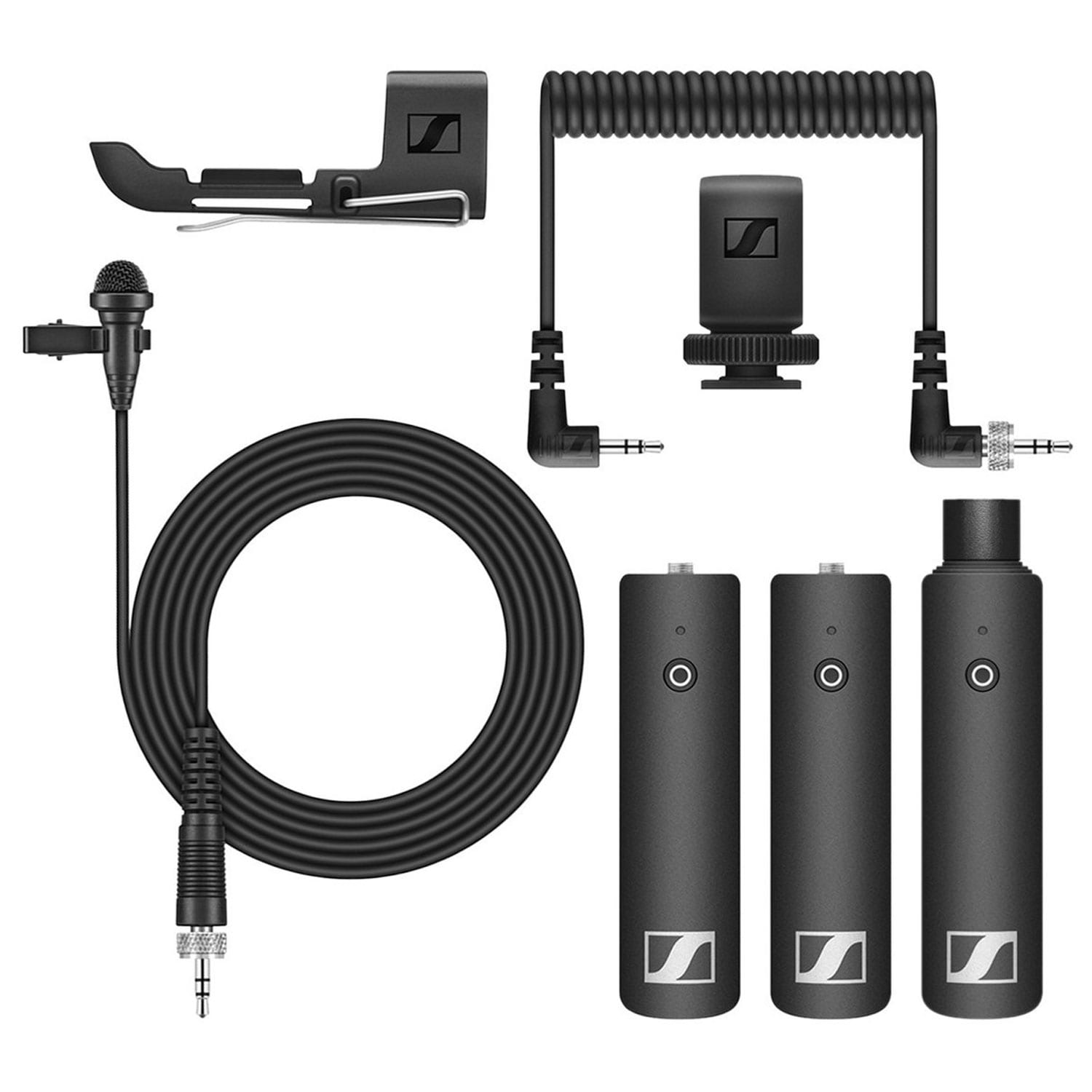

Sennheiser XSW-D PORTABLE ENG SET

One-touch ease-of-use wireless audio set that utilizes a digital transmission to link audio sources seamlessly. Equipped with XLR and 3.5mm (1/8”) transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.

One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75m range (250ft) in optimal conditions
Up to 5 hours of battery life on a single charge
Switch between multiple transmitters linked to one receiver
Configure any combination of transmitters and receivers
Mute from either transmitter or receiver

Specifications

Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
THD, total harmonic distortion
< 0.1 %
Charging time
typ. 3 h
Audio output
max. 12 dBu
Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio
≥ 106 dB
Operating time
up to 5 h
Modulation
GFSK with TDMA
Battery Specification
Li-Ion
Capacity
850 mAh
Codecs
aptX® Live
Frequency range
2,400 – 2,483.5MHz
Max. Input voltage
typ. 5.0 V
Transmission power
max. 10 mW
Voltage
3.7 V
Operating relative humidity
95 % (non-condensing)
Latency
< 4 ms
Temperature Range
0 °C – 60 °C (32 °F – 140 °F)
Audio frequency response
3.5 mm Jack/XLR: 80 – 18,000 Hz
6.3 mm Jack: 10 – 18,000 Hz
