SPL Crescendo

SKU: Crescendo

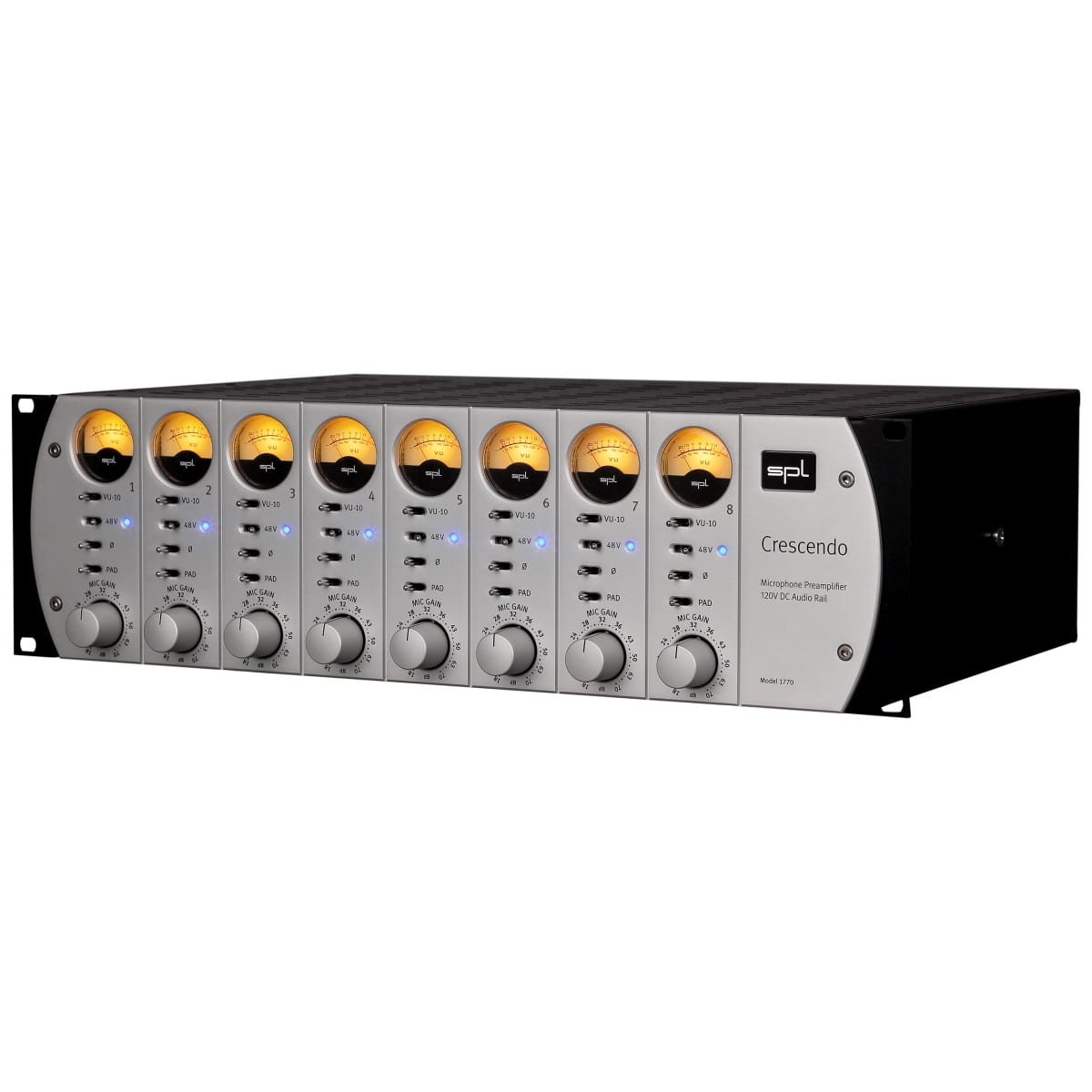

SPL Crescendo Eight-Channel Microphone Preamplifier featuring 120V Technology

Quantity:

About this item

Product

Description

SPL Crescendo Microphone Preamp

The Crescendo is the first microphone preamplifier that works with an internal operating voltage of 120V and breaks new ground.

The Undistortable

Imagine a microphone preamplifier with such a wide dynamic range and high overload resistance that the entire dynamic range of the microphone can be recorded without any limitations.

Imagine that the preamplification electronics themselves have no effect on the sound and you rediscover the sound of your microphones. With absolute signal fidelity and clarity.

VU -10

In the Crescendo, high gains can be used to optimally drive subsequent AD converters. Should the VU meter, therefore, deflect too far, you can reduce the displayed level by 10 dB.

48 V

The phantom power required for the use of condenser microphones is activated with the 48V switch.

Ø

Turn the polarity of a microphone signal 180° by activating the polarity reversal switch.

Pad

For loud input signals (including line signals) the input sensitivity can be reduced by 20 dB.

Mic Gain

The gain is adjusted by a 12-step switch. The pre-amplification ranges from +18 dB to +70 dB.

Inputs 1 – 8

The input differential amplifiers are constructed with pairs of transistors, each of which is combined in a housing. Precise matching of the transistors and thermal coupling ensures high common-mode rejection and extremely low THD values.

The choice of transistors and resistors has a decisive influence on the sound. In countless listening sessions, the optimal components for Crescendo were selected – the effort was worth it!

Outputs 1 – 8

Our 120V SUPRA operational amplifiers work as current amplifiers, which also offer pure class A operation with over 6mA quiescent current. We largely dispense with coupling capacitors in order to avoid their sonic disadvantages (diffuse, sloping, loss of dynamics). In order to eliminate DC voltage components nevertheless, active servo circuits are used.

Alternate DB25 Output

For fast cabling to multi-channel converters, Crescendo offers a DB25 connection.

The 120V technology

The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.

The highest possible audio quality requires the highest possible audio operating voltage.

The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.
This high voltage would destroy conventional components and operational amplifiers.

The 120V technology achieves impressive technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio, and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.

By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.

The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with a toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

The idea for SPL 120V technology and the SUPRA operational amplifier based on this technology were developed in the 1990s by SPL founder and chief developer Wolfgang Neumann.

With the goal of building the best mastering console ever, this basic technological philosophy then took shape for the first time – thus the SPL MMC1 Mastering Console for Galaxy Studios saw the light of day in 2000.

The outstanding sonic and technical features quickly got around in the scene – so further orders were not long in coming.

Besides the MMC 1, another legendary product with 120V technology was created with the PQ, the “King of Parametric Equalizers”.

Since then, 120V technology has been the foundation for all SPL premium products. Meanwhile, not only for mastering applications but also for studio or hifi use.

What exactly is that?

And what does it do?

Good questions need good answers.

And that’s what the 120V technology video gives you.

Comparison

Most audio devices work with an internal operating voltage of +/-15 volts and can thus process a maximum input level of +21.5 dBu. If a DAC, for example, has an output level of +22 dBu at 0 dBFS, level peaks of the music material would already cause overload in the input stage of the device.
All components in the audio device often operate at their limits. The result is an unsteady sound that causes stress and faster ear fatigue.

SPL devices with 120V technology can handle input levels of +32.5 dBu thanks to the higher internal operating voltage of +/- 60 volts – thus offering 12 dB more headroom. All components consequently operate continuously in the optimum operating range. The result is a very pleasant, natural, and relaxed sound experience. So you can enjoy your music in every detail.


These diagrams clearly show the superiority of the 120V technology in comparison to other circuits with lower, common operating voltages.

Home is where the heart is

That’s why we manufacture all devices in our own production facility in Niederkrüchten on the Lower Rhine, Germany.

Specifications

Analog inputs & output; XLR (balanced)

Maximum input & output gain
32.5 dBu
Input impedance
10 kΩ
Output impedance
75 Ω
Frequency range (-3 dB)
20 Hz – 70 kHz
THD + N (10 Hz – 22 kHz, 30 dBu)
0.008 %
Noise (A-weighted, 150 Ω, 30dB Gain)
-87.5 dBu
Noise (A-weighted, 150 Ω, 60dB Gain)
-69.7 dBu
E.I.N. (150 Ω)
-129.7 dBu
Common mode rejection (1 kHz)
80 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio
+/- 60 V
Operating voltage for relays and LEDs
+ 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 1.6 A
Fuse for 115 V
T 3.15 A
Power consumption
230 V: 60 W, 115 V: 80 W

Dimensions & Weight

W x H x D (width x height incl. feet x depth)
482 x 132 x 300 mm
19 x 5.2 x 11.8 inch
Unit weight
9.5 kg
20.94 lbs
Shipping weight (incl. packaging)
12.25 kg
27.01 lbs

Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
