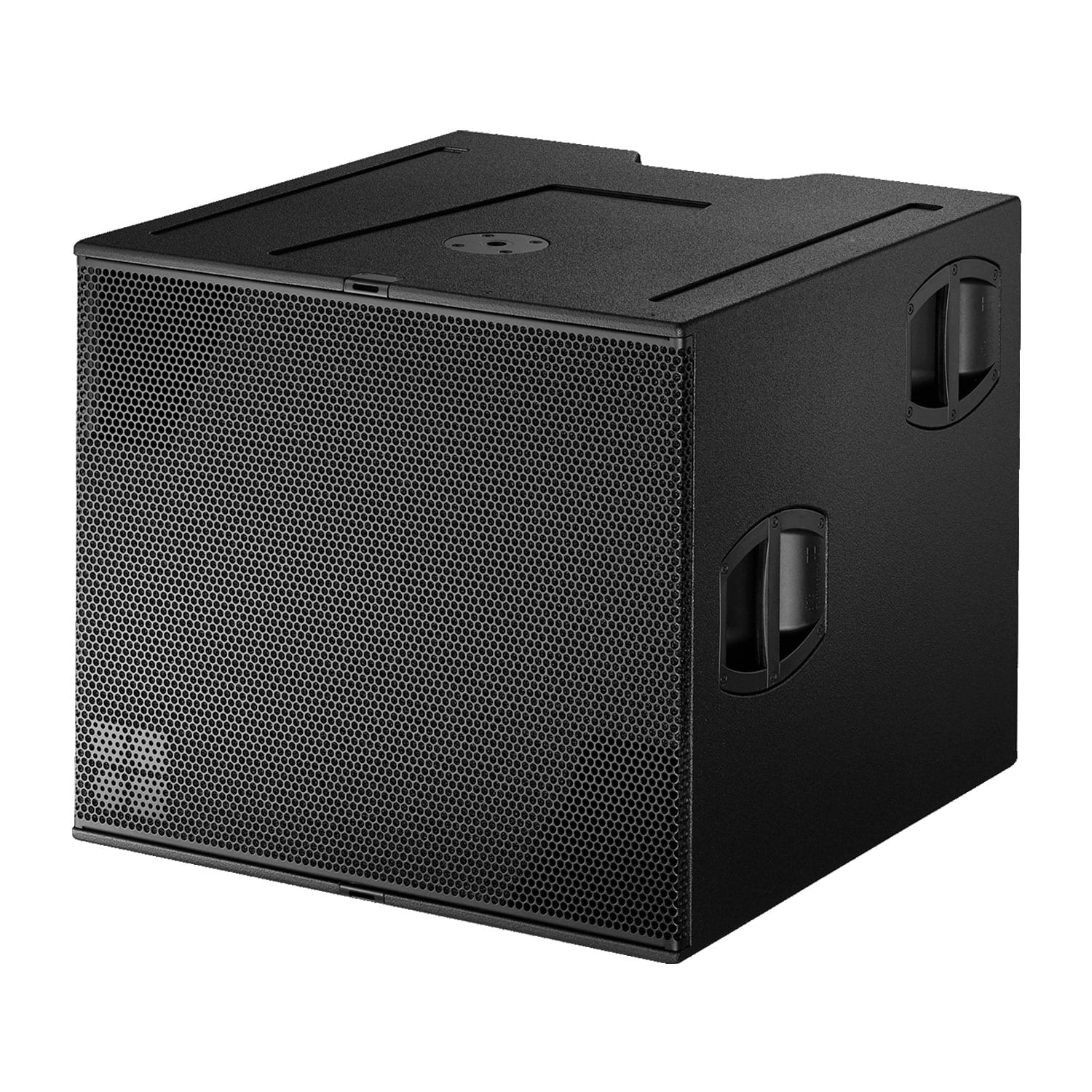

d&b audiotechnik V-GSUB Subwoofer

High performance cardioid subwoofer


The d&b audiotechnik V-GSUB Subwoofer is an actively driven high-performance cardioid subwoofer powered by a single amplifier channel. The V-GSUB is intended for ground-stacked applications only and shares the same acoustical and visual design as the V-SUB, which features integrated rigging equipment. It houses two long excursion neodymium drivers, an 18“ driver in a bass-reflex design facing to the front and a 12“ driver in a two chamber bandpass design radiating to the rear. The cardioid dispersion pattern resulting from this arrangement avoids unwanted energy behind the system reduces the excitation of the reverberant field at low frequencies and provides the greatest accuracy of low-frequency reproduction.

The V-GSUB top panel has a recess in the form of the footprint of a V7P/ V10P enclosure to prevent cabinet movement when stacking one TOP loudspeaker. The enclosure features two runners to protect the bottom panel from scratching. Two correspondingly shaped recesses are incorporated into the top panel of each V-GSUB cabinet to accept these runners, preventing cabinet movement when stacked. The cabinet is constructed from marine plywood and has an impact and weather-protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side of the V-GSUB panel incorporates two handles whilst the top panel has an M20 high stand flange inserted.

System data

Frequency response (–5 dB standard) 37 Hz – 115 Hz
Frequency response (-5 dB 100 Hz mode) 37 Hz – 95 Hz
Max. sound pressure (1m, free field)1
with D20/30D
with D80 133 dB
137 dB
Cabinets per amplifier channel 2

Loudspeaker data

Configuration High-performance cardioid subwoofer
Nominal impedance 8 Ω
Power handling capacity (RMS/peak 10 ms) 800/3200 W
Components 1 x 18″ driver
1 x 12″ driver
Connections 2 x NLT4 F/M
optional 2 x NL4 M or 2 x EP5

Dimensions, weight

Dimensions (H x W x D) 606 x 700 x 7283 / 830 mm
23.8 x 27.5 x 28.63 / 32.6″
Weight 61 kg
135 lb

Additional information

Weight 135 lbs
Dimensions 33 × 28 × 24 in
