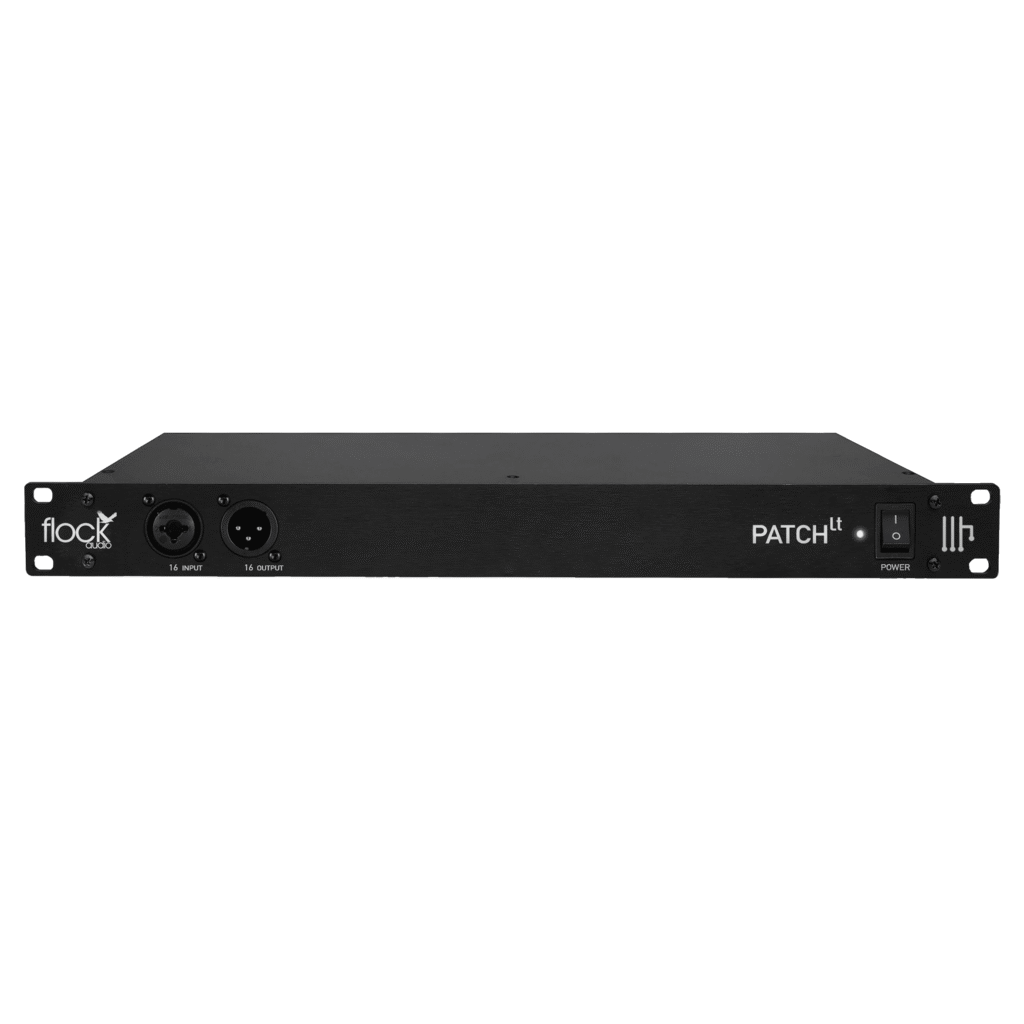

Flock Audio PATCH LT

16×16 version of the Flock Audio PATCH. The LT PATCH is Everything you love about PATCH. Just more Compact.

Description

Flock Audio PATCH LT

Always Expandable within the PATCH EcoSystem of Products

The Flock Audio PATCH LT System was designed with the up & coming producer or budget studio in mind. Using the same Flock Audio Patented Matrix Technology as our Flagship Model “PATCH”, LT allows any producer or studio to add the world’s most advanced digitally controlled, analog routing system into their studio or post-production suite without compromise. Just enough IO to create a masterpiece.

Standard Tascam 25 Pinout Wiring Format DB-25/D-SUB Connectors.

4 Cables give you access to the analog routing matrix of your dreams

• 32 Point Connections (16 Inputs / 16 Outputs)
• DB-25 Tascam Standard Pinout Format Connectors
• 16 Independent Channels 48V Phantom Power
• Front Panel – 1 Combo TRS/XLR Input & 1 XLR Output
• PATCH APP Routing Software (OSX & Windows)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Analog Signal Path
• Patented Flock Audio Matrix Technology (Same as PATCH)
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
• External 5Pin 24VDC Power Supply w/ IEC Cable Included
• 10 Ft. – USB 2.0 (USB-A to USB-B) Cable Included
• Unit Dimensions: 1U – 1.75”(H) x 19” (L) x 8” (D) – 15 lbs

In the Box:

  • PATCH – (1U Hardware Rack Unit) Dimensions: 19″ (W) x 1.75″ (H) x 8″ (D)
  • USB 2.0 – (10 ft) Host Control Cable (USB-A to USB-B)
  • Power Supply – 24VDC (110V or 220V) Power Supply
  • Power IEC Cable – (Shipped with IEC Plug based upon customer region)
  • 6-Step Quick Start Setup Guide
  • Hardware Index Setup Template

Details:

  • Computer Connectivity: USB 2.0
  • Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
  • Software: PATCH APP (Online Download)
  • Chassis: 1U Rackmount (8″ Deep)
  • Patch Point Connections: 32 Total – 16 Inputs / 16 Outputs (Expandable with all PATCH Models)
  • 48v Phantom Power: 16 Channels Independently Controllable
  • Front Connectors: 1x Combo TRS/XLR Inputs & 1x XLR Outputs
  • D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
  • Routing System: Patended Flock Audio Matrix Technology
  • Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
  • Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
  • Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
