Flock Audio Patch

64 Channels (32 IN x 32 OUT) Digital/Analog-Patch System

SKU: PATCH Categories: , , , Tags: , ,


Flock Audio Patch

  • 64 Point Connections (32 Inputs / 32 Outputs)
  • DB-25/D-SUB Tascam Standard Pinout Format Connectors
  • 32 Independent Channels of 48V Phantom Power
  • Front Panel – 2 Combo TRS/XLR Input & 2 XLR Output
  • PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
  • Create, Store & Recall Routings in Seconds
  • Create Complex Multing Combinations w/ No Impedance Issues
  • No AD/DA Conversion, 100% Transparent Analog Signal Path
  • Patented Flock Audio Matrix Technology
  • Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
  • External 5Pin 24VDC Power Supply w/ IEC Cable Included
  • 10 Ft. – USB 2.0 (USB-A to USB-B) – Cable Included
  • Unit Dimensions: 1U – 1.75”(H) x 19” (L) x 8” (D) – 15 lbs

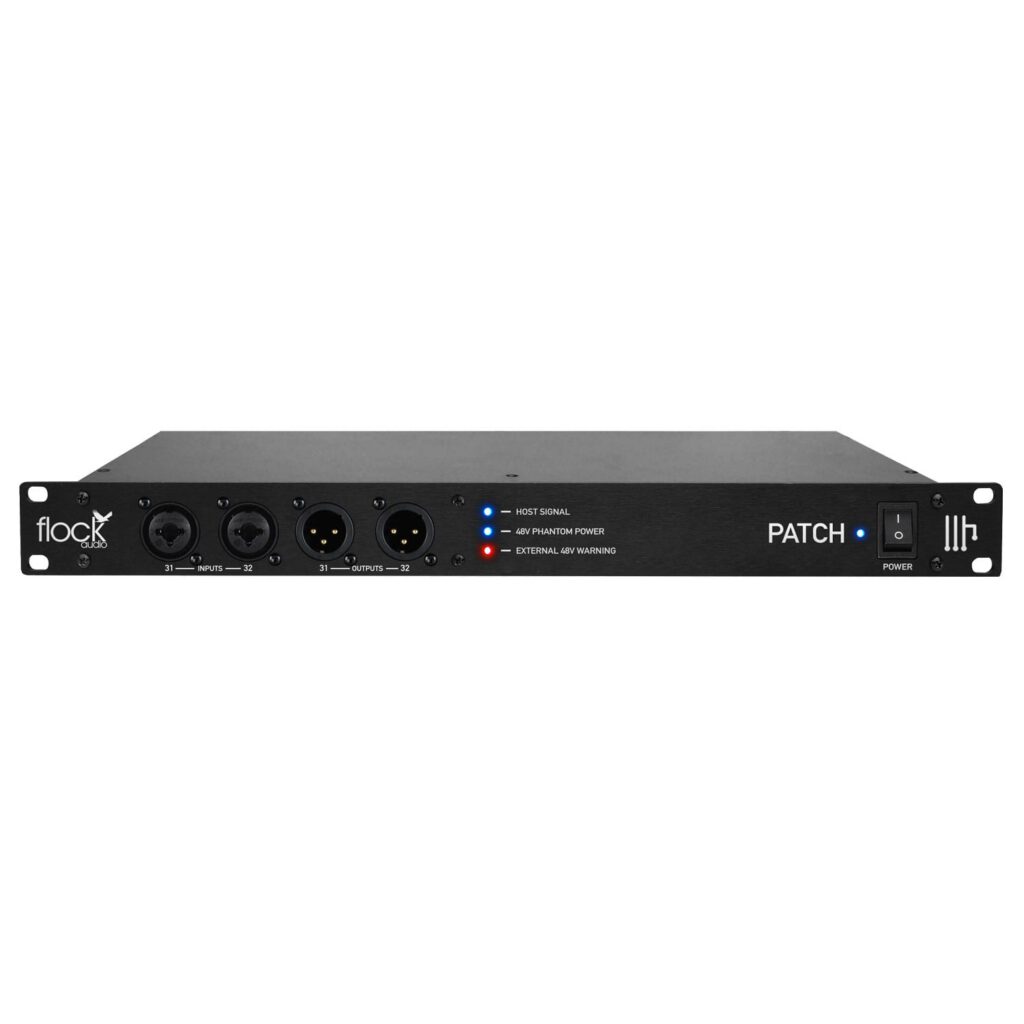

The Flock Audio Patch system comes equipped with 4 front panel connections.

(2) – Inputs (XLR/TRS Combo jacks) & (2) – XLR Outputs. These front panel Connections allow users quickly integrate outside audio equipment or instruments into your recording setup.


Host Signal – This Top Blue LED indicator serves as a visual notification when your PATCH Hardware is in direct communication with the PATCH APP Software.

48V Front Inputs – The 48V LED Illuminates solid Blue when 48V is enabled on any of the rear Input Channels and also pulsates on/off when 48V is active on the Front I/O of the PATCH Hardware.

External 48V Warning – This LED Illuminates solid Red when any connected preamp has an active 48V connection active. The PATCH System Series is equipped with its own onboard 48V Power which means it’s not necessary to activate 48V on any connected preamp.


The PATCH System uses very little CPU processing power to send and receive commands from the hardware. Because of the minimal amount of processing required, the PATCH System works off a USB 2.0 and on-wards compatibility. The design was chosen for low CPU usage so you can have your system processing working harder for your Interface & DAW rather than devoting a large amount of that processing to routing your analog audio equipment.


DB-25s/D-Subs create a clean, simple, and organized form of connection to the rear chassis of PATCH. Utilizing the standard Tascam Wiring Pinout schematic, any DB-25/D-Sub cable following this wiring format will work seamlessly with your system. For additional flexibility, we’ve added the feature that Inputs & Outputs (31 – 32) will flip from the rear side of the chassis to the front when activated in the PATCH APP. This allows a user to quickly audition other outside audio equipment without disconnecting any already designated hardware connected to the PATCH System.


Connect Multiple PATCH Systems together for Expanded I/O Routing Capabilities.

When we said 100% analog…we meant it.

The PATCH System Series has no A/D or D/A conversion built in but users can connect multiple PATCH Systems together through their existing onboard I/O in many different configurations, whether you do equal Sends & Returns, maybe more sends than returns or even as little or as many connections between units as you require for your analog configurations.

Setup these Send & Receive or Input/Output Passes right from the simply designed PATCH APP Multi-Unit Menu.



Is It possible to integrate a Flock Audio PATCH System into your already existing traditional patch bay setup…?

Of course, it is!

PATCH’s flexible design allows users to configure it into any existing setup while utilizing the PATCH Series’ incredibly versatile and intuitive functionality!

We take no Prisoners…

Only Allies!
