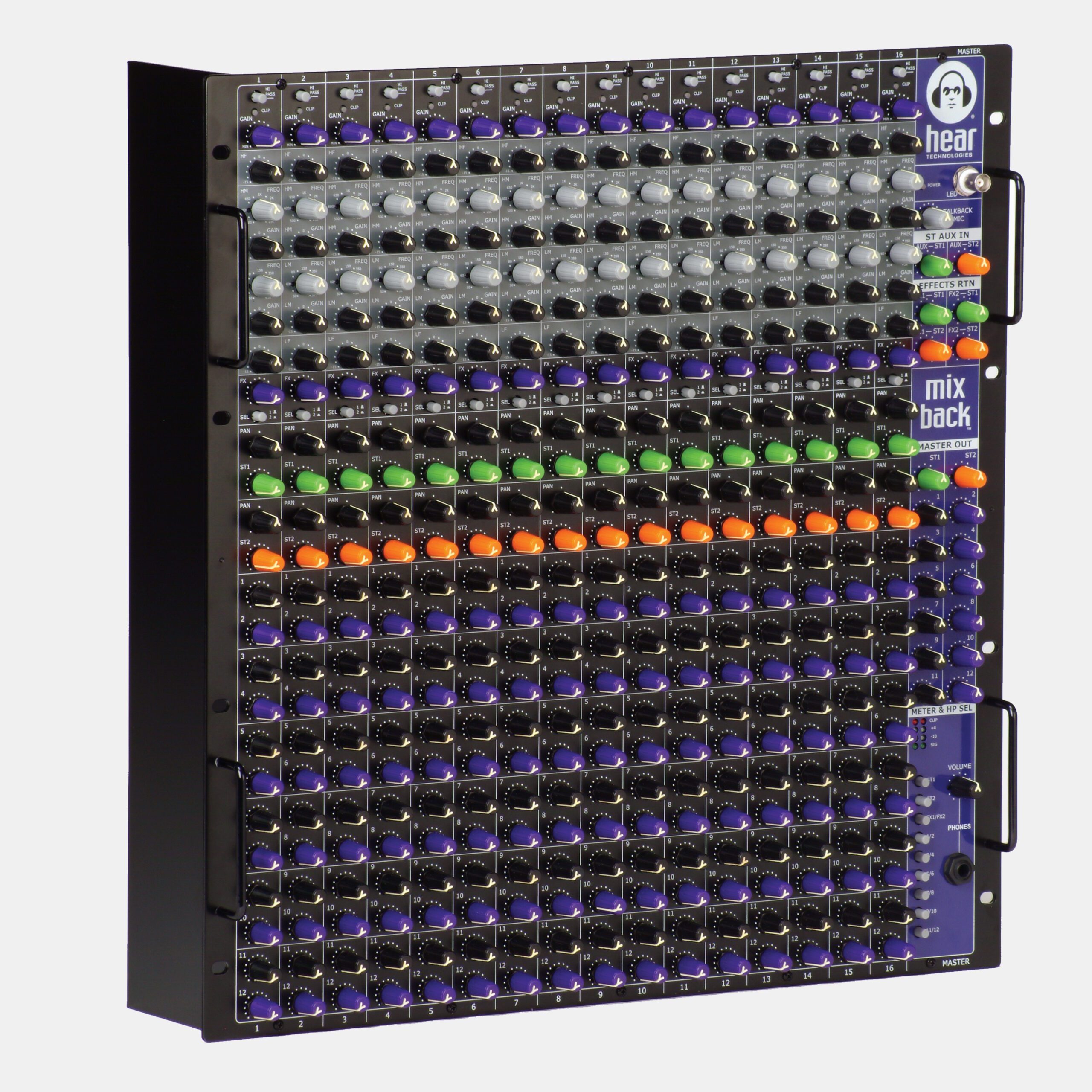

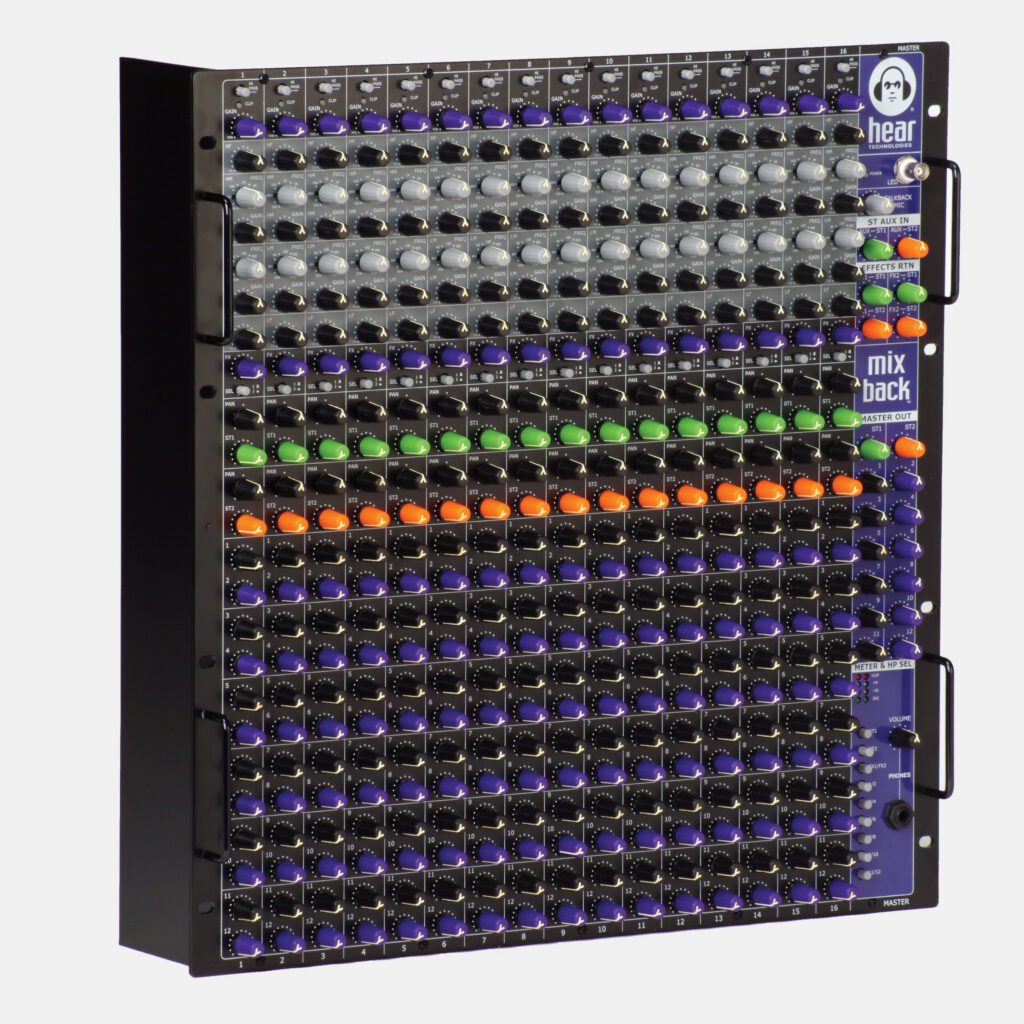

Hear Technologies Mix Back

Master Features

  • 2 stereo and 12 mono TRS outputs
  • Switch selectable meter/headphone monitoring
  • 2 stereo TRS balanced effect returns
  • Switch assignable FX1/FX2 returns to the 12 mono masters
  • Stereo Aux return with level controls to both stereo busses – great for FOH mix or the studio “two mix”
  • Buss inputs permit the stacking of multiple mixers
  • Talkback mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
  • Relay contact when the talk-back intercom switch is pressed
  • 16-button talkback remote connects using a standard CAT5e cable
  • 16 channels of ADAT and HearBus output

Mix Back

The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.

Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!

Input Channel Features

  • 16 quality Mic/Line inputs with passive XLR split
  • Pin 1 lift and Mic phantom power switches
  • Channel inserts
  • Signal/Clip LED indicator
  • 100 Hz high-pass filter
  • Gain control
  • 4 band EQ with separate controls for sweep and cut/boost on mid bands
  • Two stereo level and pan controls (ST1 and ST2)
  • Twelve mono level controls (1-12)
  • Switch selectable effects 1-2 sends
OutputsInputs
ST1 L/RST1 L/R
ST2 L/RST2 L/R
Mono 1-12Mono 1-12
FX1 SendFX1 L/R
FX2 SendFX2 L/R
Talkback outputStereo Aux inputs
Talkback RelayTalkback Mic
ADAT – 16 ChannelsTalkback remote Control
HearBus – 16 Channels

Other Features

  • Universal internationally approved internal power supply
  • 11 RU chassis
  • All analog inputs and outputs are balanced

Specifications

Passive Microphone Split (Each Channel)
Mic In to Mic Out:Passive
Mic Power:+18 VDC
Pin 1 Lift:Output XLR
Mic Input to Insert Output
Conditions: +14 dBu input, Gain full CCW, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.05 dBu
10 Hz to 120 KHz, +/- 0.3 dBu
THD+N:0.002%, 22 Hz to 22 KHz, unweighted
IMD:0.004%
EIN:-121 dBu, 150 Ω Source, -40 dBu input
Mic Pre to Master Output
Conditions: 0 dBu input, Gain full CCW, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.5 dBu
THD+N:0.004%, 22 Hz to 22 KHz, unweighted
IMD:0.004%
Maximum Gain:60 dBu, EQ Flat
Line Inputs to Insert Outputs
Conditions: +18 dBu input, Gain full CCW, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.3 dBu
THD+N:0.005%, 22 Hz to 22 KHz, unweighted
IMD:0.005%
Maximum Gain:10K Ω, balanced
Attenuation:18 dB
Channel Equalization
Hi Frequency:10 KHz shelving, +/- 15 dB
Hi Mid Frequency:500 Hz to 15 KHz, +/- 15 dB
Lo Mid Frequency:50 Hz to 3 KHz, +/- 15 dB
Lo Frequency:100 Hz shelving, +/- 15 dB
Hi-Pass Filter:100 Hz, 3 pole, 18 dB/Octave
Buss Inputs to Master Outputs
Conditions: +4 dBu input, 150 Ohms, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.2 dBu
THD+N:0.005%
IMD:0.005%
Input Impedance:10K Ω, balanced
Digital Output:
ADAT Output:24 Bit, 44.1 KHz / 48 KHz Selectable
HearBus Output:24 Bit, 44.1 KHz / 48 KHz Selectable
ADAT/HearBus 1:Master 1 L/R, Channels 1-6
ADAT/HearBus 2:Master 2 L/R, Channels 7-12
Analog Line Outputs
Maximum Output Level:+24 dBu, TRS Balanced
Output Impedance:121 Ω, balanced
Talkback Mic Pre Amplifier
Conditions: -40 dBu input, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 1.5 dBu
Gain:Off to 50 dBu, variable
Line Output:121 Ω, TRS Balanced
Input Impedance:1K Ω, balanced
THD:0.05%
IMD:0.09%
Remote Control:1-12, ST1, ST2, COM, ALL
Remote Cable:CAT5e, 500 ft. max, wired pin-to-pin
Effects (FX) Return
Conditions: +4 dBu input, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.5 dBu
Gain, FX return to Master:1 dB, Master at center
THD+N:0.0025%, 20 Hz to 20 KHz
IMD:0.0027%, 20 Hz to 20 KHz
Input Impedance:10K Ω, balanced
Maximum Input Level:+10 dBu, control centered
Stereo Aux Input
Conditions: +4 dBu input, 150 Ω, Balanced
Frequency Response:20 Hz to 20 KHz, +/- 0.5 dBu
Gain:Off to +6 dBu, Aux to Stereo Masters
THD+N:0.0033%, 20 Hz to 20 KHz
IMD:0.004%, 20 Hz to 20 KHz
Input Impedance:10K Ω, balanced
Maximum Input Level:+8 dBu
Power Supply (Universal)
Input Voltage:100 to 240 VAC~, 50-60 Hz
Input Current:2 Amps
Maximum Continuous Input Power:240 Watts
Fuse (Internal):3.15 Amp
Inrush:60 Amps, 2 mSec
Short Circuit Protection:Yes
AC Input Connector:IEC 320-C14, Internationa
Agency Listing:FCC class B, CISPR 22 class B, IEC 60950-1 safety, EN 61000-4-2, 4-4, 4-5
Physical
Construction:Steel Chassis / Steel Front Panel
Size (with 1” handles):19.23″ H x 19″ W x 5.35″ D (488mm H x 482.6mm W x 135mm D)
Unit Weight:30.8 lbs (14 kg)
MountingStandard rack mount, 11RU
Shipping size:10.55″ H x 25.0″ W x 24.53″ D (268mm H x 635mm W x 623mm D)
Shipping Weight:42.9 lb. (19.5 kg)

Note: 0 dBu = 0.775 Vrms. Specifications and features are subject to change without notice.

*Specifications and features are subject to change without notice.
