Meyer Sound HMS

Cinema Surround Loudspeaker

Description

The Full Intensity and Nuance of Cinema Surround Sound

Meyer Sound HMS

COMPLEMENTING ACHERON

Designed to complement Meyer Sound’s Acheron screen channel loudspeakers, the self-powered HMS maintains a wide dynamic range, exceptional fidelity, and precise clarity during the most demanding of digital soundtracks. It is available in four models: HMS-5, HMS-10, HMS-12, and HMS-15, ranging in size, weight, driver size, and power to accommodate a wide range of venues and applications.

THE INTELLIGENCE OF IntelligentDC

Equipped with IntelligentDC technology and receiving DC power and balanced audio from composite Phoenix 5-pin connectors, all except the HMS-15AC are powered from an external DC source, eliminating the need for AC conduits while preserving the advantages of self-powered systems.

TONAL ACCURACY FOR CINEMAS

Optimized for use in cinemas, high-end private theatres, screening rooms, and other surround applications, the self-powered, full-range HMS line exhibits extraordinarily flat amplitude and phase responses for tonal accuracy.

HMS-5

The compact HMS-5’s transducers include two 5-inch low-frequency, long-excursion cone drivers and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

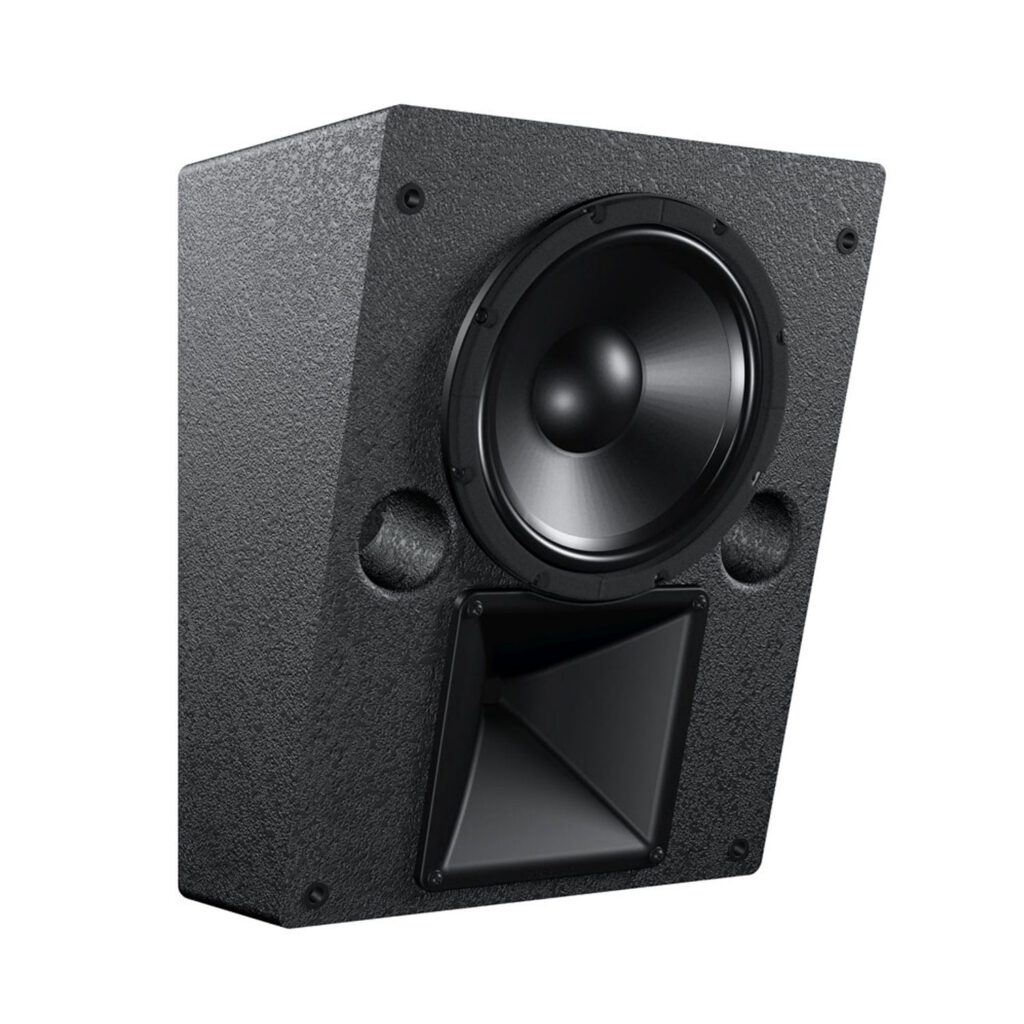

HMS-10

The HMS-10’s transducers include one 10-inch low-frequency, long-excursion cone driver and one 2-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 80-degree horn.

HMS-12

The HMS-12’s transducers include one 12-inch low-frequency, long-excursion cone driver and one 3-inch diaphragm high-frequency compression driver on a symmetrical, constant-directivity 100-degree horn.

HMS-15

The HMS-15’s transducers include a 15-inch low-frequency, long-excursion cone driver and a 3-inch diaphragm high-frequency compression driver on a constant-directivity 80-degree horizontal by 50-degree vertical horn. The HMS-15 requires two channels of DC power from an MPS‑488HP external power supply. The HMS-15AC model is available for AC installations.
