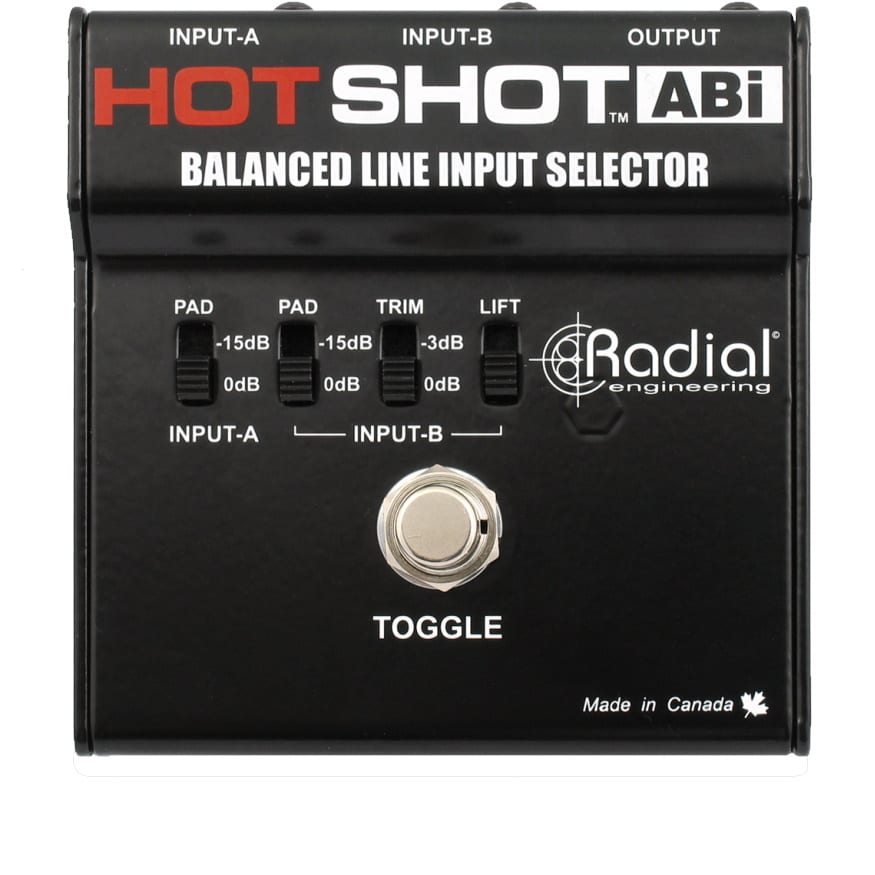

Radial HotShot ABi

Balanced Input Footswitch Selector

Description

The HotShot ABi is a balanced signal selector that allows you to instantly select between two sources by depressing a latching footswitch.

  • Quickly select between two balanced XLR sources
  • Toggle or mute the source with a latching footswitch
  • Selectable input pad to match input signal levels
  • Completely passive operation, no power required

On-stage input switching

The HotShot ABi makes it easy to select between two balanced inputs on stage, with a single latching footswitch to toggle from one source to the other. This allows an artist to switch between two dynamic microphones during a performance, freeing up input channels on your mixer. The latching footswitch also opens the door for other useful applications, including using the ABi as a mute to turn off a microphone, select between two wireless receivers, or switch between two mono playback devices.

Specifications
Audio circuit type:Passive, true-bypass
Frequency response:20Hz ~ 20kHz
Dynamic range:Unlimited
Features
Input pad, Ground lift
Input Connectors:Two XLR inputs
Output Connectors:One XLR output
General
Construction:14-Gauge Steel
Size (L x W x D):3.9″ x 3.6″ x 2″ (99 x 92 x 51mm)
Weight:1.25 lb (0.56 kg)
Conditions:For use in dry locations only between 5°C and 40°C
Warranty:Radial 3-year, transferable

https://youtu.be/HJwik1sbGWc
