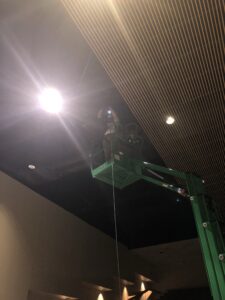

Northbridge Middle School commissions Parsons Audio to install Fulcrum Acoustic DX1565’s with CX1265 delays

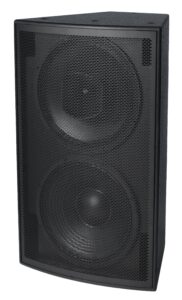

DX1565 Dual 15 inch Coaxial Loudspeaker, 60° x 45°

Operating Mode: Bi-amplified w/ DSP
Operating Range: 42 Hz to 20 kHz
LF Transducer: 15.0″ ceramic magnet woofer, 4.0″ voice coil
HF/LF Transducers: Coaxial 3.0″ titanium diaphragm compression driver; 15.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling @ Nominal Impedance: LF 700 @ 8 Ω, HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous): 133 dB / 127 dB
Dimensions (H x W x D): 861 x 529 x 457 mm / 33.9 x 20.8 x 18.0 in
Weight: 40.4 kg / 89.0 lb

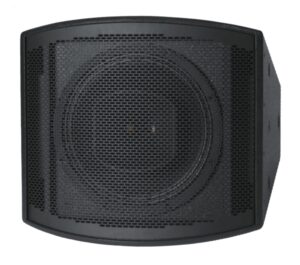

CX1265 12 inch Coaxial Loudspeaker, 60° x 45°

Optional YK1811 Yoke Bracket available.

Operating Mode: Single-amplified w/ DSP
Operating Range: 69 Hz to 20 kHz
HF/LF Transducers: Coaxial 3.0″ titanium diaphragm compression driver; 12.0″ woofer, 3.0″ voice coil; single neodymium magnet
Power Handling @ Nominal Impedance: HF/LF 400 W @ 8 Ω
Equalized Maximum SPL (peak / continuous): 130 dB / 124 dB
Dimensions (H x W x D): 412 x 456 x 371 mm / 16.2 x 17.9 x 14.6 in
Weight: 14.5 kg / 32.0 lb
