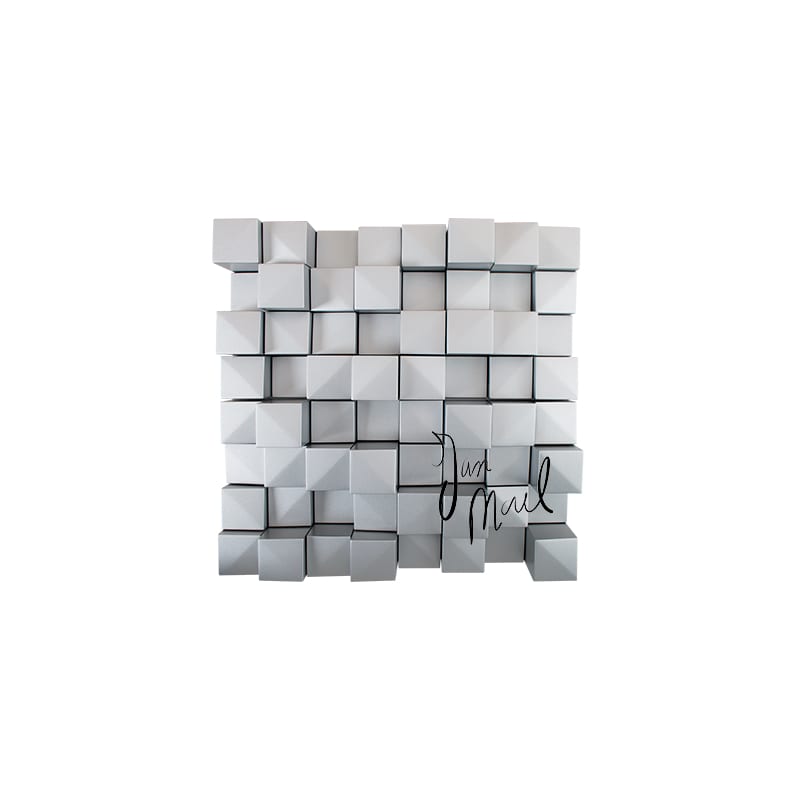

Artnovion Acoustics Atlas Diffuser
Atlas W Diffuser is an attractive solid wood QRD diffuser, designed for mid-high frequency sound diffusion with a range of 630 Hz up to 5000 Hz. Developed specifically to interrupt refections, Atlas scatters incoming sound waves over a wider area, without removing the energy from the room. Atlas W Diffuser improves sound clarity, creating an even sound field.
With an easy installation procedure, Atlas W Diffuser is available in a wide variety of finishes including lacquered surfaces, such as our limited edition (Gold Version).
Atlas is designed to scatter over any axis. It can be used behind speakers, to treat first reflections, or on the back walls.
Made from wood, from a sustainable and renewable source, it’s unique design is a welcome addition to any space.
Atlas is designed to scatter over any axis.
– Control room
– Recording room
– Home studio
– Broadcast studio
– Drum room
FG | Furniture GradeMaterials:
– Lacquered HMDF Finishes
– Natural Wood FinishesDimensions
Integrated fixing system already incorporated on the panel.
Why use diffusion?
Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.
– Enlarging sweet spot
– Specular reflection control
– Flutter echo control
Type: 2D – QRD Diffuser
Scattering range: 630 Hz to 5000 Hz
Available fire rate:
FG | Furniture Grade
– Solid wood | Lacquered HMDF
– Solid wood
Installation: Integrated Fixing System, already incorporated on the panel.
FG – LW | 595x595x110mm
FG – NW | 595x595x110mm
