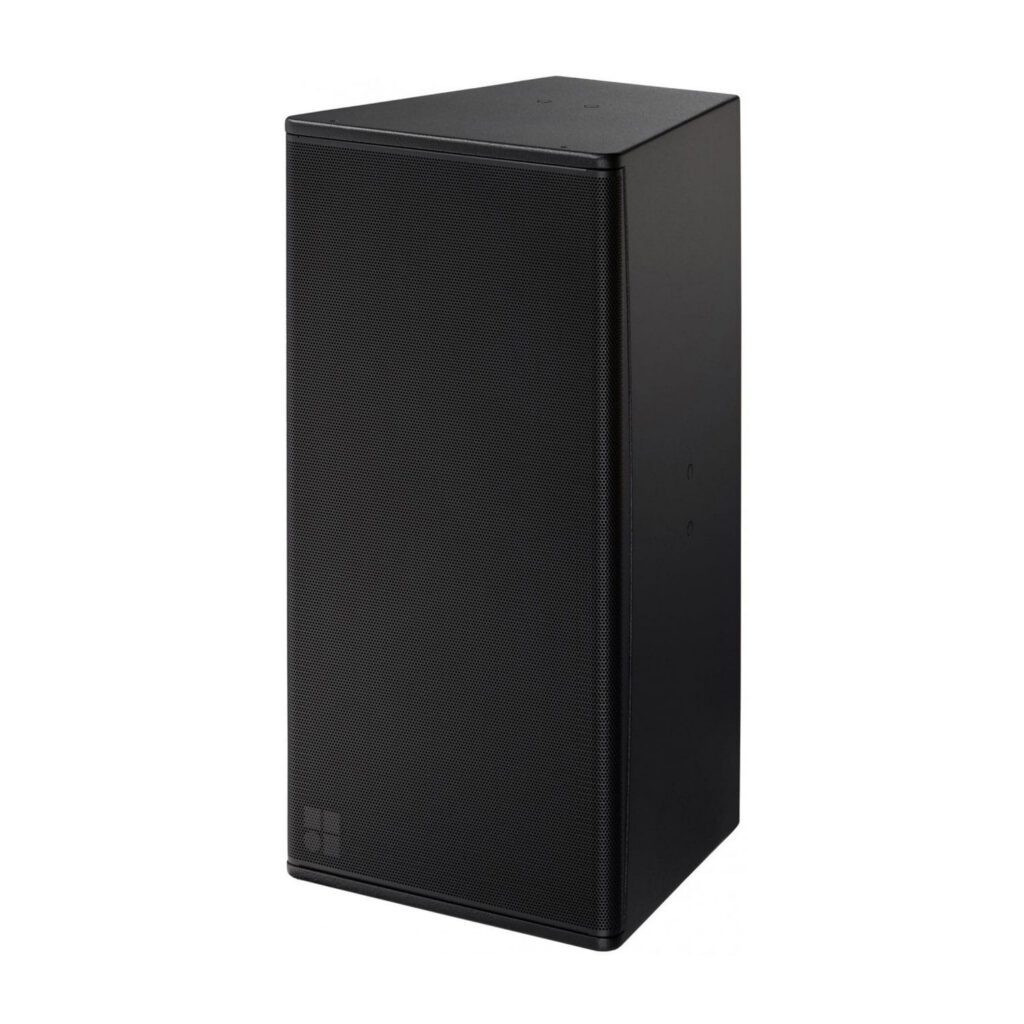

d&b audiotechnik 24S-D Loudspeaker

SKU: 24S-D

Designed for fixed installation in multiple applications, the d&b audiotechnik 24S-D is a full-range, two-way, point-source loudspeaker with two 12″ divers and a 1.4″ HF driver mounted in a rotatable horn.

Quantity:

About this item

Product

Description

d&b audiotechnik 24S-D Loudspeaker

Featuring d&b audiotechnik’s belief that everyone should experience the same impeccable sound quality, regardless of position in the audience, the high-performance 24S-D is a full-range, 2-way passive loudspeaker with two 12″ drivers in a bass-reflex enclosure. The 24S-D also has a 1.4″ exit compression driver mounted onto a large rotatable constant directivity (CD) horn. The point-source 24-S-D is designed to handle a wide range of applications for fixed installations. It has a wider horizontal dispersion than its counterpart, the 24S loudspeaker. The dipolar arrangement of the 12″ drivers results in directivity control down to approximately 500Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low-frequency reproduction. With a frequency response extending from 55Hz to 18kHz, the 24S-D can be used as a stand-alone, full-range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually. Additionally, its high-frequency horn can be rotated by 90° for horizontal orientation.

d&b audiotechnik 24S-D—At a Glance:

  • Point-source loudspeaker
  • Installation-specific, high-performance loudspeaker
  • Compact and powerful performance in a single box
  • 2-way passive design with 2 x 12″ LF drivers and a 1.4″ exit HF
  • driver on a rotatable CD horn
  • Extended LF performance from large cabinet volume
  • The dipolar arrangement of the LF drivers provides increased constant directivity control down to lower frequencies in the same plane as the dipole
  • Extended frequency response allows use as stand-alone
  • Full-range system
  • Unobtrusive cabinet design ensures visual integration within any
  • permanent installation
  • Dispersion 110° x 45° rotatable
  • Max SPL 137dB
  • Marine plywood construction with impact-resistant black finish
  • Neutrik NL4 connector
  • Available in all RAL* colors with weather-resistant option up to IP55**

d&b audiotechnik 24S-D—Parsing the Details:

The loudspeaker cabinet is constructed from marine plywood and has an impact-resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill. The top, bottom, and both side panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware. The loudspeakers are Ball Impact Resistant according to DIN 18032-3 for sports and multipurpose halls. The Weather Resistant option (WR) option provides an IP55* rating, enabling long-term use in changing ambient conditions, and features a fixed cable. The 24S-D can also be supplied in any RAL* color. This special color option can be provided for rigging accessories.

**The IP Code or International Protection Rating, sometimes also interpreted as Ingress Protection Rating. IP55: Protected from limited dust ingress and protected from low-pressure water jets from any direction.

**RAL is a color-matching system that defines standard colors for varnish, powder coating, and plastics. It’s the most popular Central European color standard used today.

Recommended amplifiers

The four-channel, 800W (@ 8 ohms) d&b 30D amplifier is recommended to drive the 24S-D in applications where medium to high sound pressure level (SPL) capabilities are called for. The d&b D20 and D80 power amplifiers can also be used.

24S applications

  • Music and live program reinforcement for permanent installations
  • Live-performance venues
  • Night clubs
  • Houses of Worship
  • Sporting venues
  • Multipurpose suites

For assistance ordering or configuring a d&b audiotechnik system with 24S-D point-source loudspeakers, call or chat online with your Parsons Audio Professional today.

Specifications:

Frequency response

  • (–5dB standard): 55Hz – 18kHz
  • (–5dB CUT mode): 90Hz – 18kHz

Max. sound pressure (1m, free field)1

  • With D20/30D amplifier: 137dB
  • With D80 amplifier: 137dB

Cabinets per amplifier channel: 1

Loudspeaker data

  • Configuration Installation specific high-performance, full-range 2-way
  • loudspeaker with wide dispersion
  • Nominal impedance: 4 ohm
  • Power handling capacity (RMS/peak 10 ms) 500/2000W
  • Nominal dispersion angle (h x v) 110° x 45° rotatable

Components

  • 2 x 12″ driver with neodymium magnet
  • 4″ exit compression driver
  • Passive crossover network

Connections

  • 1 x NL4
  • 1 x screw terminal block

Dimensions

  • H: 31-1/2″ (800 mm)
  • W: 16″ (410 mm)
  • D: 16-1/2″ (420 mm)

Weight

  • 73 lb.
  • 33 kg
